Fluid Temp Sensor Circuit and A/T C/U Pwr Source Circuit Checks

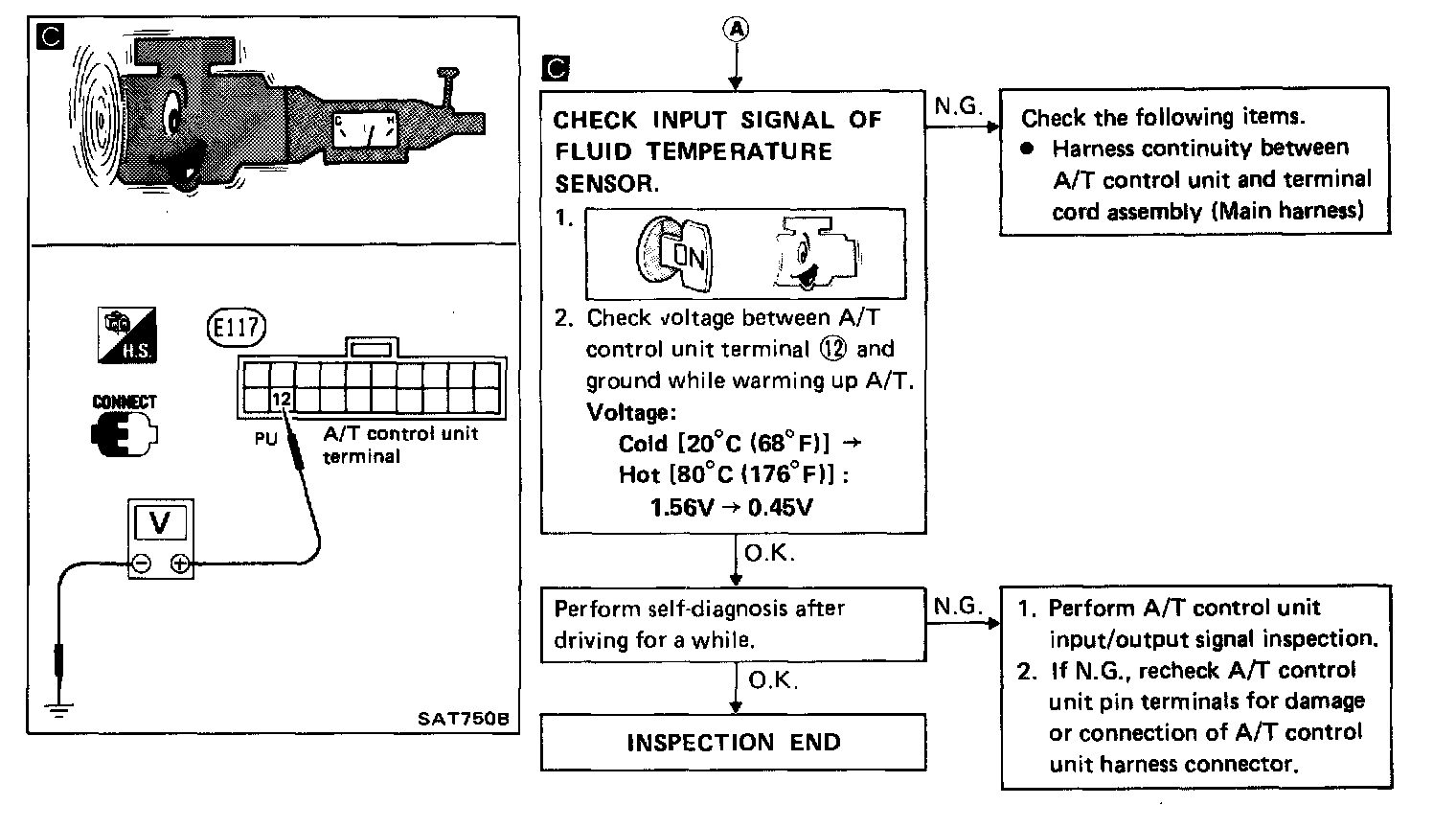

Fluid Temperature Sensor Circuit And A/T Control Unit Power Source Circuit Checks Part 1:



Fluid Temperature Sensor Circuit And A/T Control Unit Power Source Circuit Checks Part 2:
