A/T Shift Lock System
>>

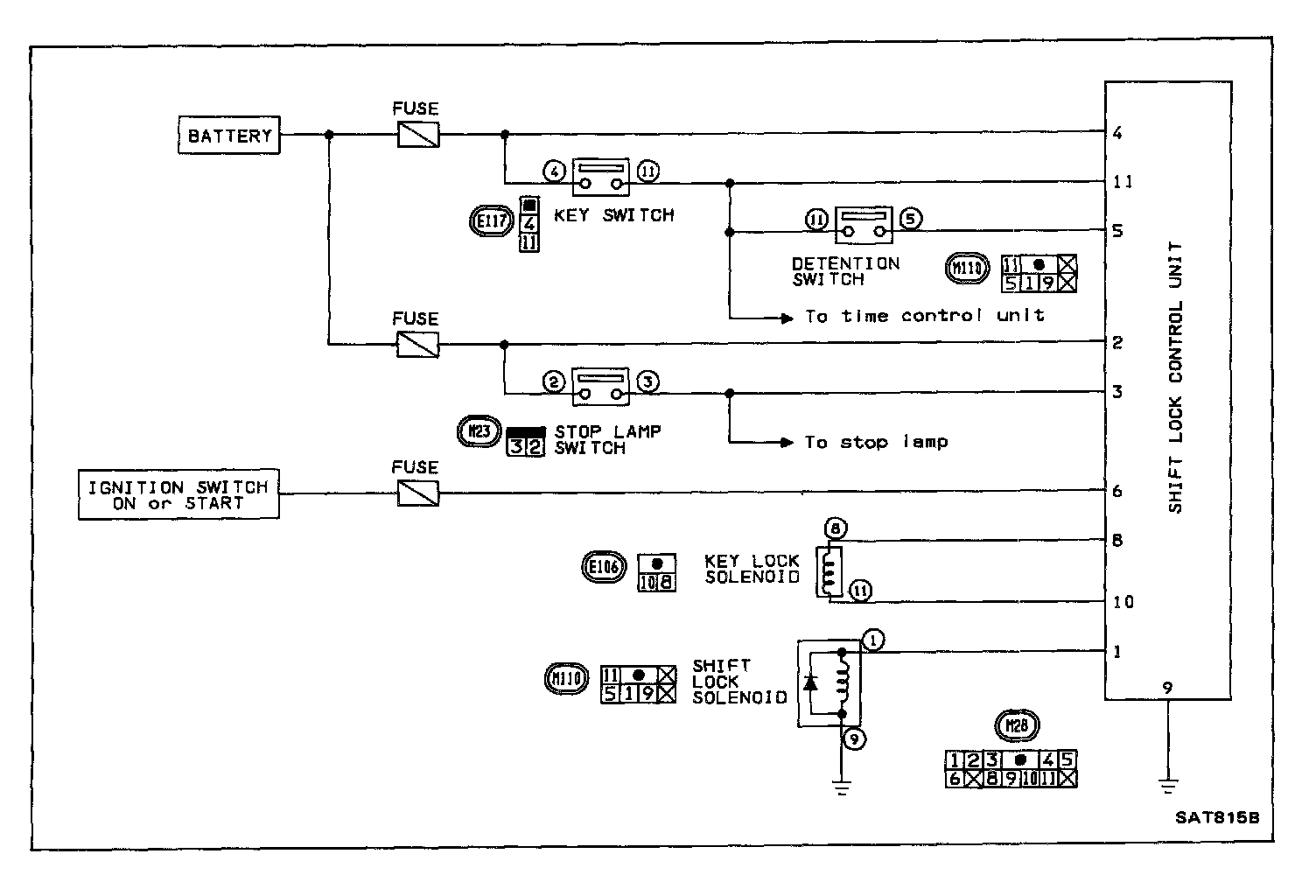

Circuit Diagram For Quick Pinpoint Check
Circuit Diagram For Quick Pinpoint Check
Circuit For Quick Pin Point Check:
