EGR Control Solenoid: Locations

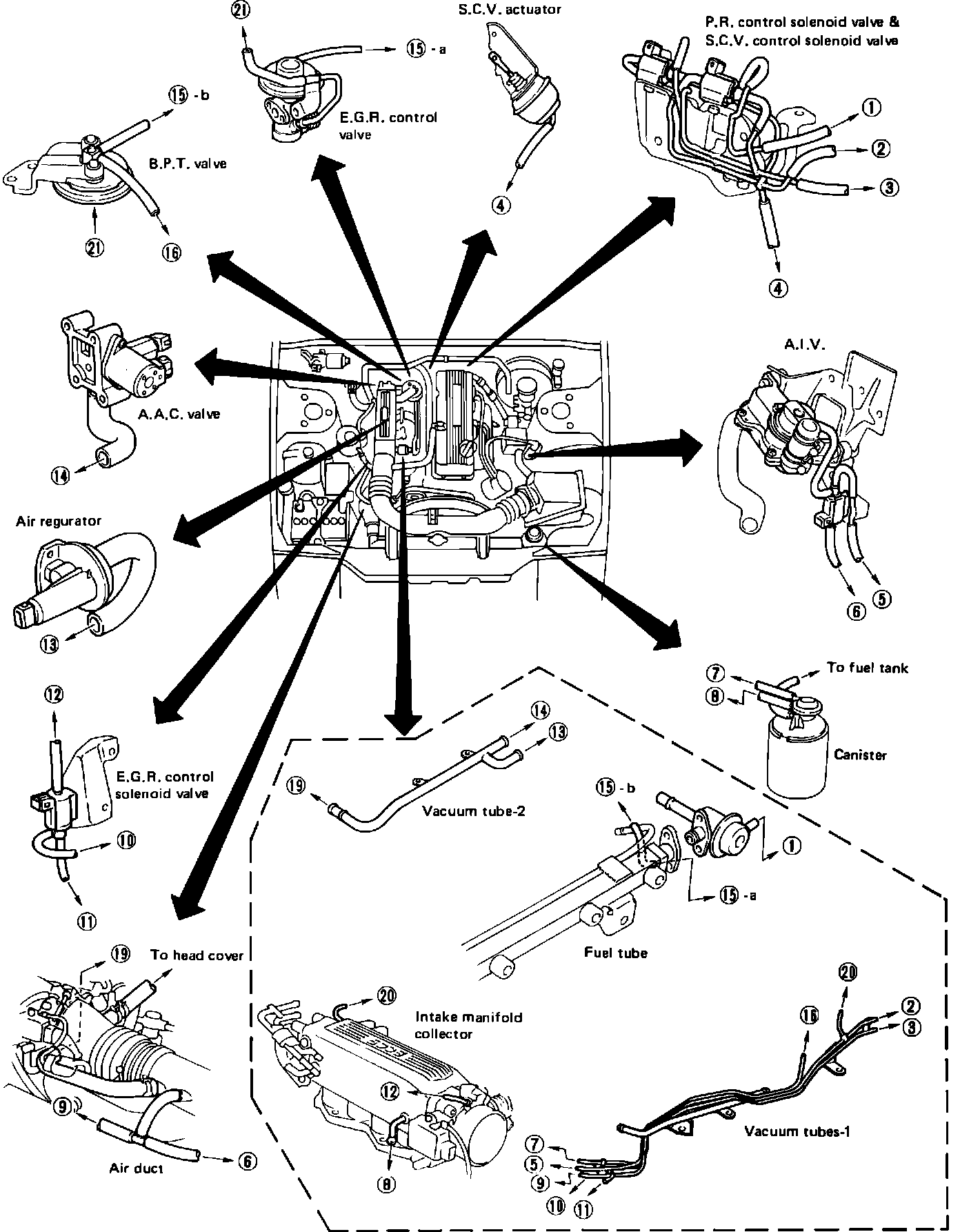

Fig. 100 Vacuum Hose Routing:

The Exhaust Gas Recirculation (EGR) Valve Solenoid is mounted to the intake manifold below the air intake duct in the engine compartment.
