Component Locations
Component Locations

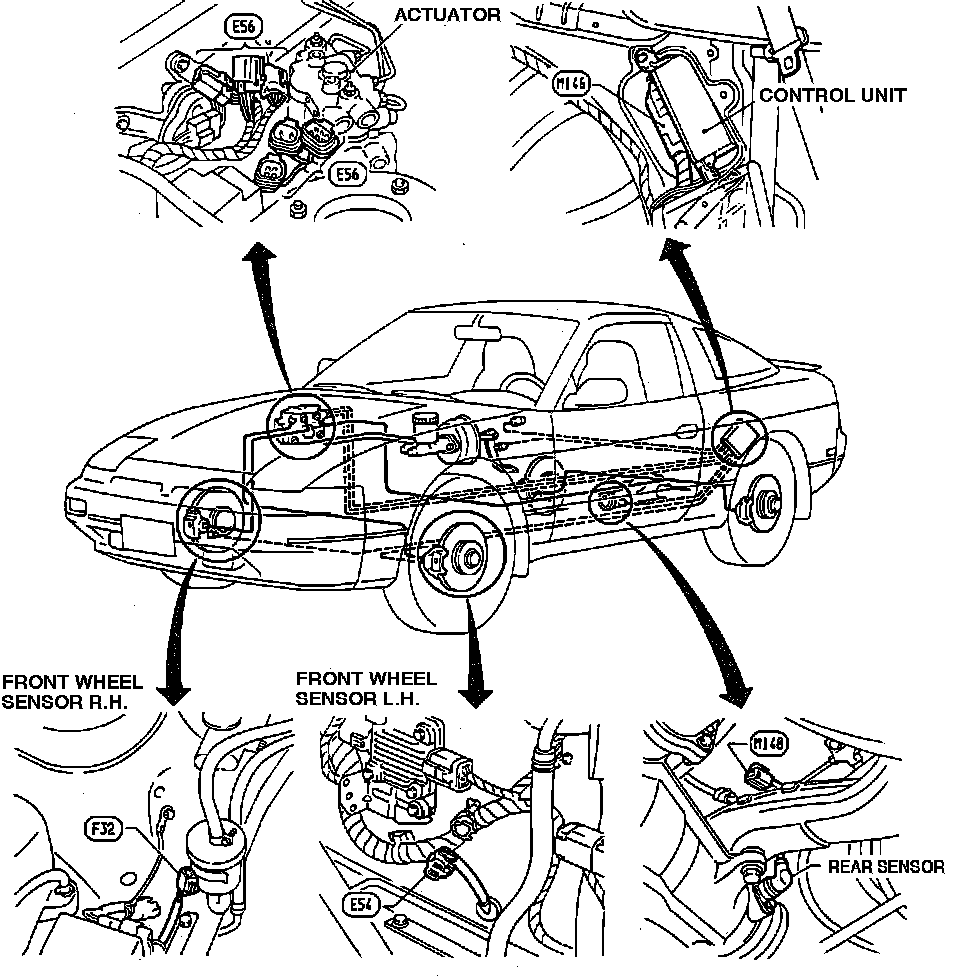

Fig. 78 ABS System Component & Harness Connector Locations (Part 1 Of 2). 240SX:

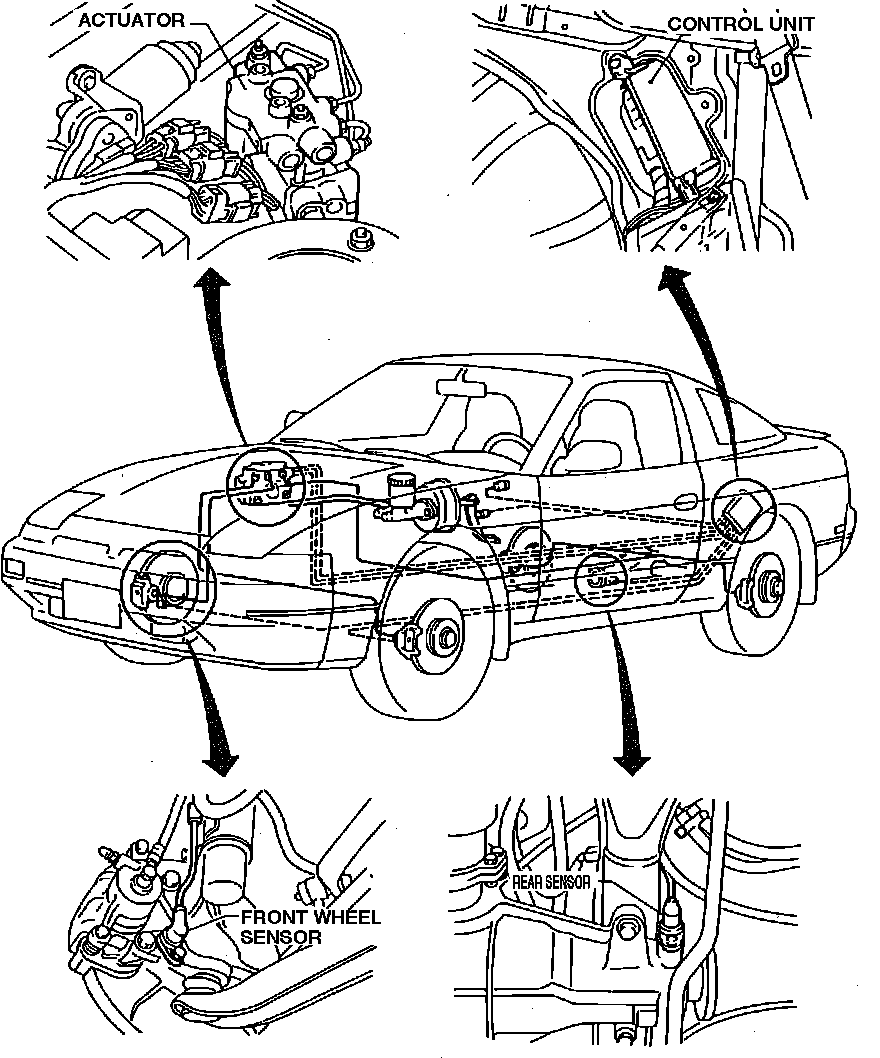

Fig. 78 ABS System Component & Harness Connector Locations (Part 2 Of 2). 240SX:
