Home
>>
Nissan-Datsun
>>
1988
>>
Stanza Wagon FWD L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Lock-Up Release System
Lock-Up Release System

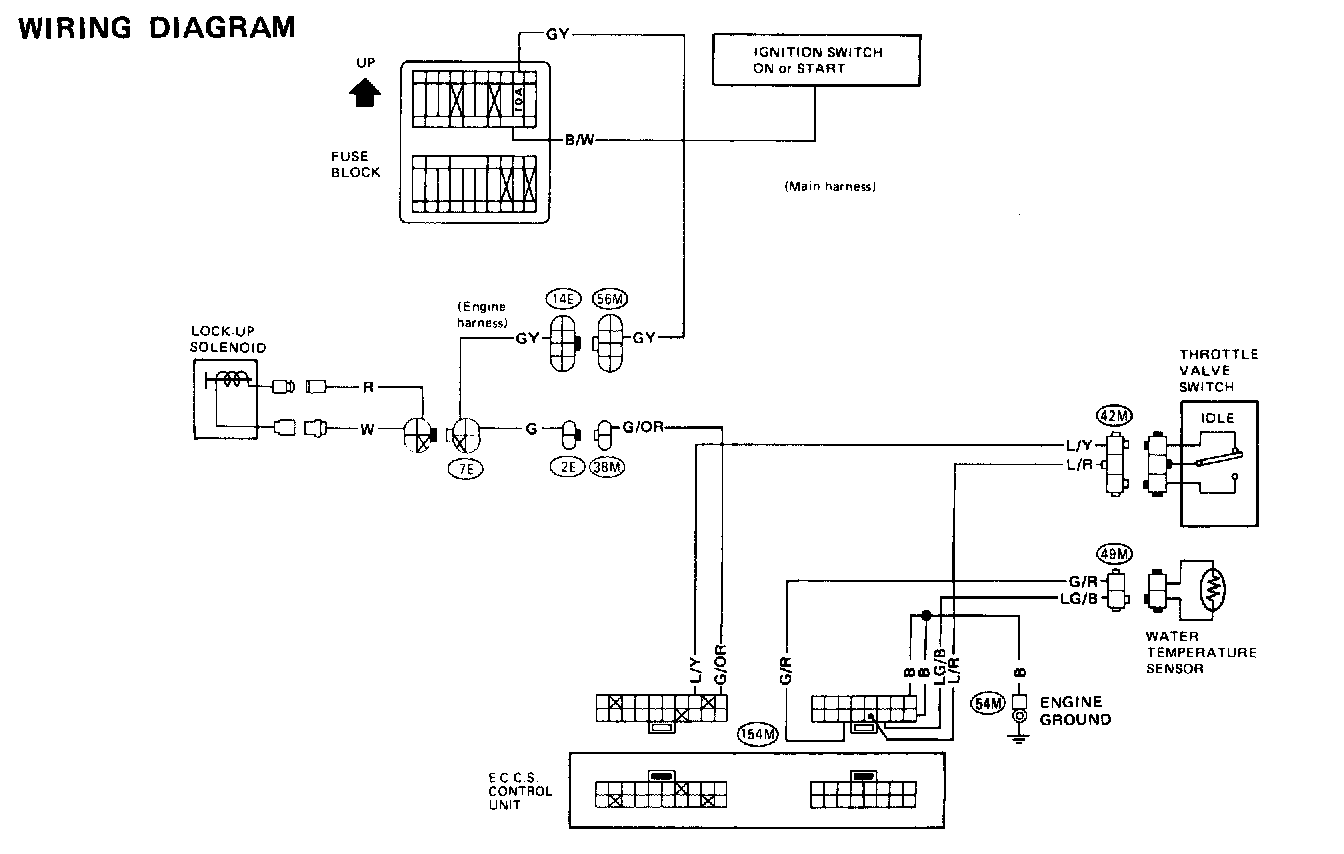

Lock-up Release System - Wiring Diagram:
