Fuel Pressure: Testing and Inspection

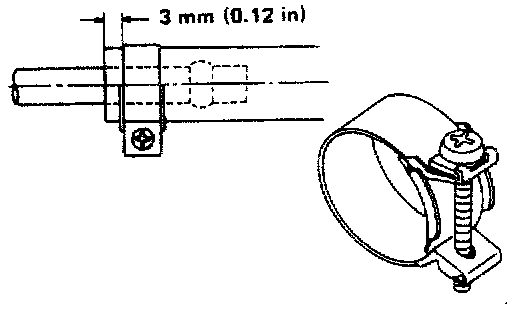

a. Tighten the clamp so its end is 3 mm (0.12 in) from the hose end.
b. Make sure that the screw of the clamp does not contact with any adjacent parts.
c. Use Pressure Gauge to check fuel pressure.

: Fuel hose clamps
1.0 - 1.5 N.m (0.10 - 0.15 kg-m, 0.7 - 1.1 ft-lb)

1. Release fuel pressure.

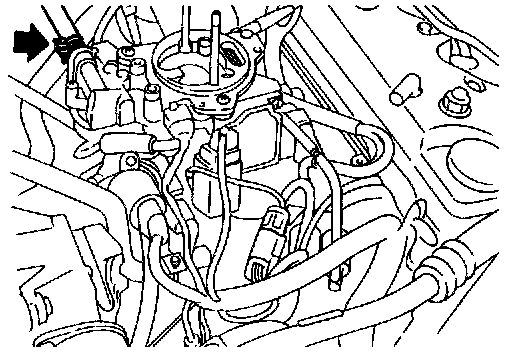

2. Disconnect the fuel inlet hose at the electro injection unit.

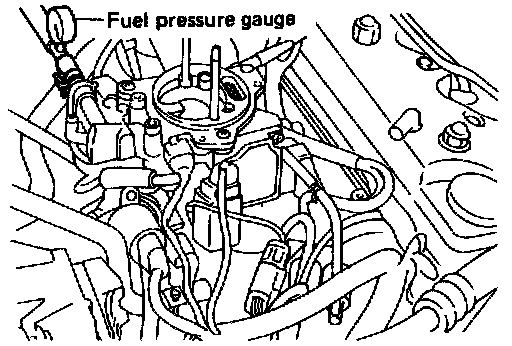

3. Install a pressure gauge.
4. Start the engine and check the fuel line for fuel leakage.
5. Read fuel pressure gauge.

At idling speed:
2WD Model: Approximately 98 kPa (1.0kg/cm2, 14 psi)
4WD Model: Approximately 250.1 kPa (2.55 kg/cm2, 36.3 psi)

6. Release fuel pressure again.
7. Remove the pressure gauge from the fuel line.
8. Reconnect the fuel inlet hose.
