EGR & Canister Purge Control Solenoid Valve W/E16I Engine
EGR & Canister Purge Control Solenoid Valve W/E16I Engine

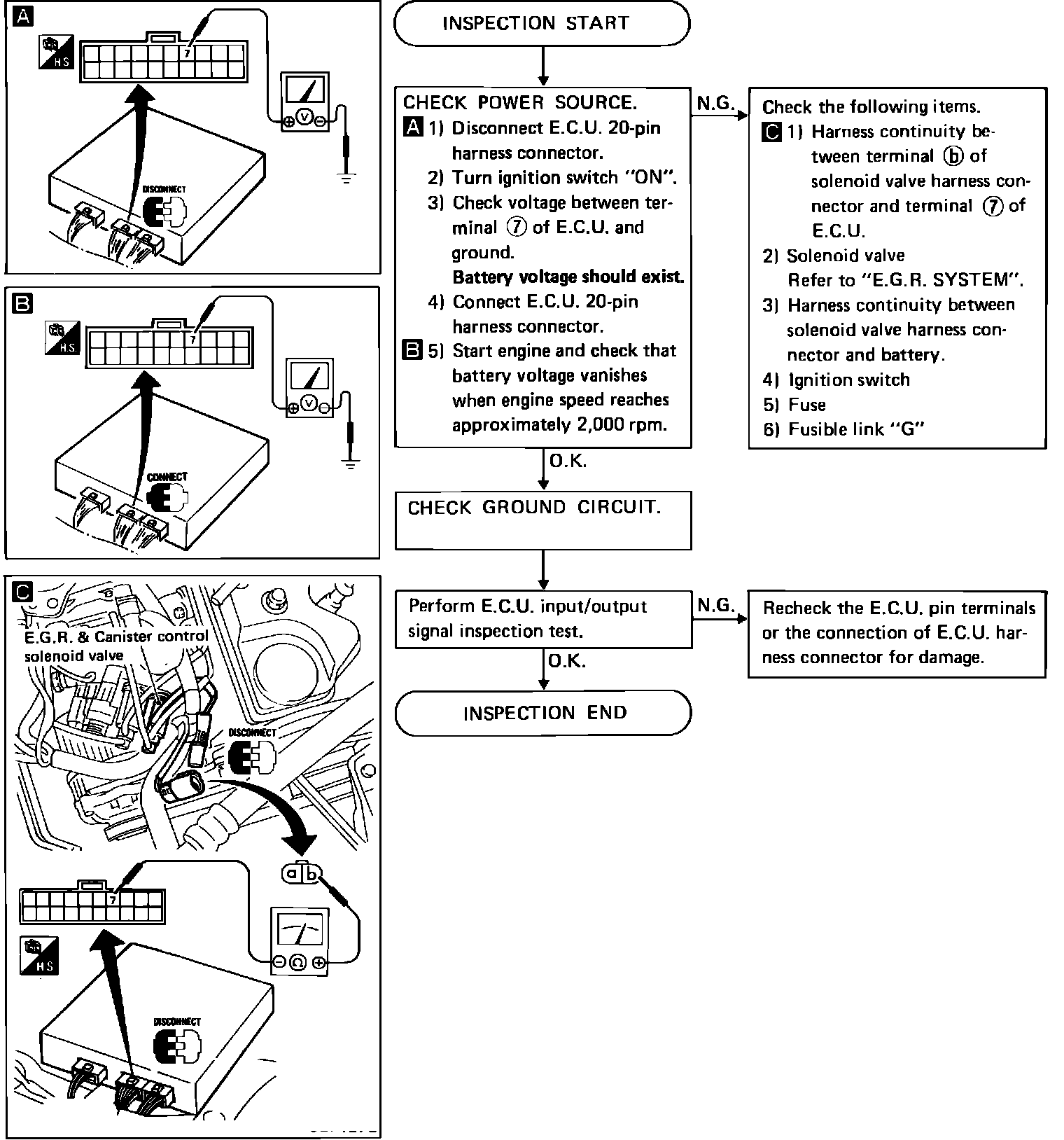

Fig. 342 EGR & canister purge control solenoid valve circuit diagnosis.:
