Exhaust Gas Recirculation (EGR) Control

E.G.R. (Exhaust Gas Recirculation) & Canister Purge Control

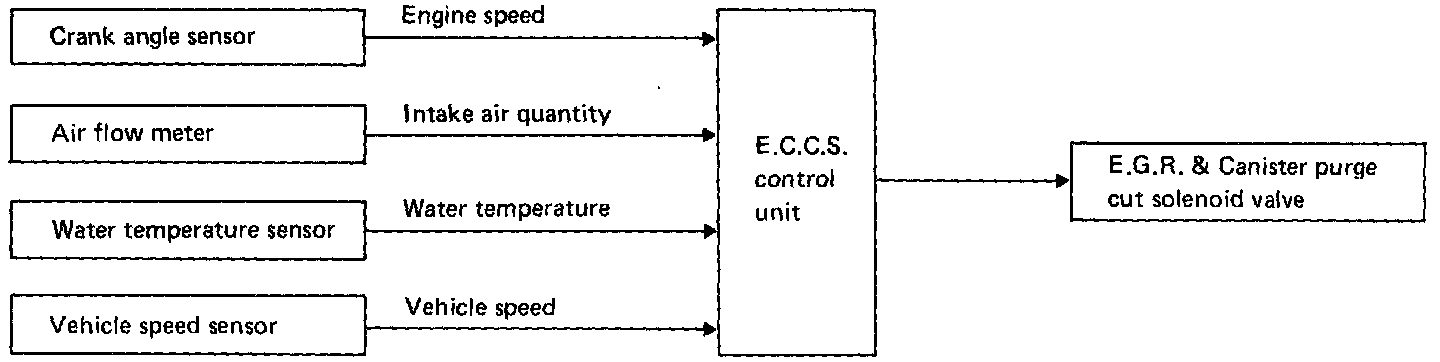

The signal from the E.C.U. is sent to the E.G.R. & Canister purge cut solenoid valve, which cuts the vacuum line for the E.G.R. and canister control valve. E.G.R. and canister activates when all the following conditions are met.
- Vehicle speed: Above 10 km/h (6 MPH)
- Water temperature is above 60°C (140°F).
- Under light load and low engine speed.
