Air Injection Vacuum Control Solenoid Valve: Testing and Inspection

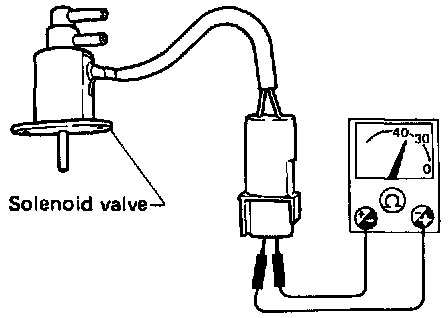

1. Check it for electric continuity.
Continuity should exist.

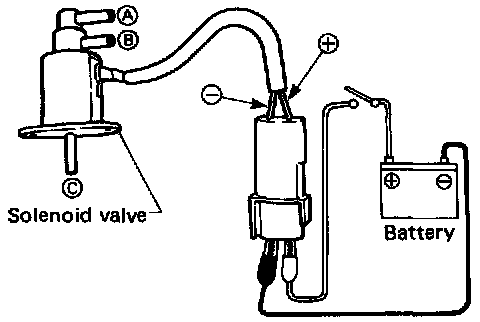

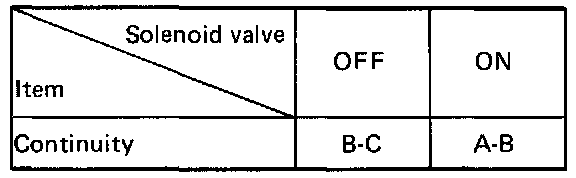

2. Check the solenoid valve for normal operation. Supply it with battery voltage, and check whether there is continuity between ports A, B and C
