Description of On-Board Diagnostics
>>
Diagnostic Test Modes
>>
Mode IV (Switches)
Mode IV (Switches)

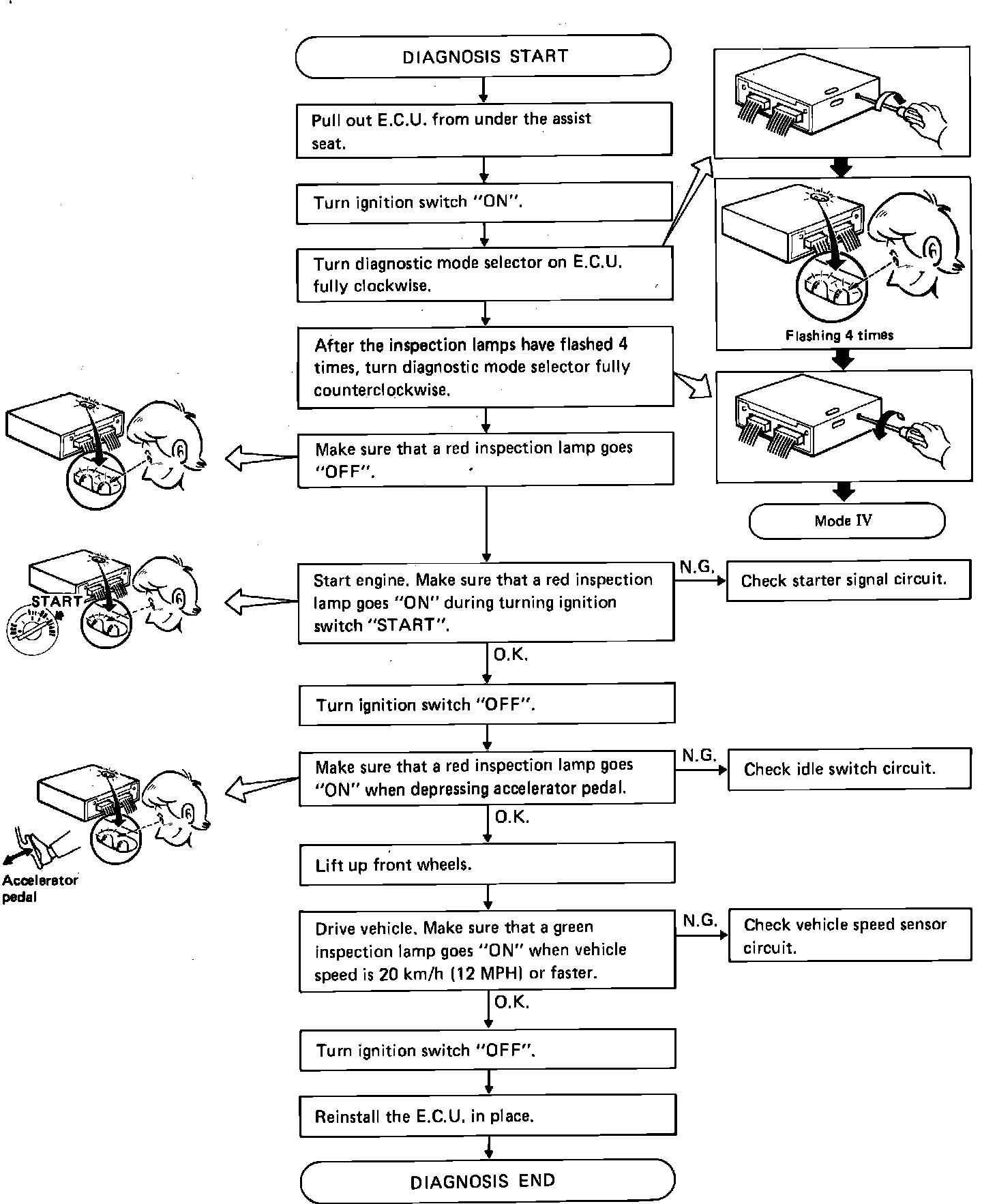

Fig. 262 Mode IV self diagnostic procedure.:
