Sentra Sedan L4-1597cc 1.6L SOHC (E16i)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Idle Switch
Idle Switch

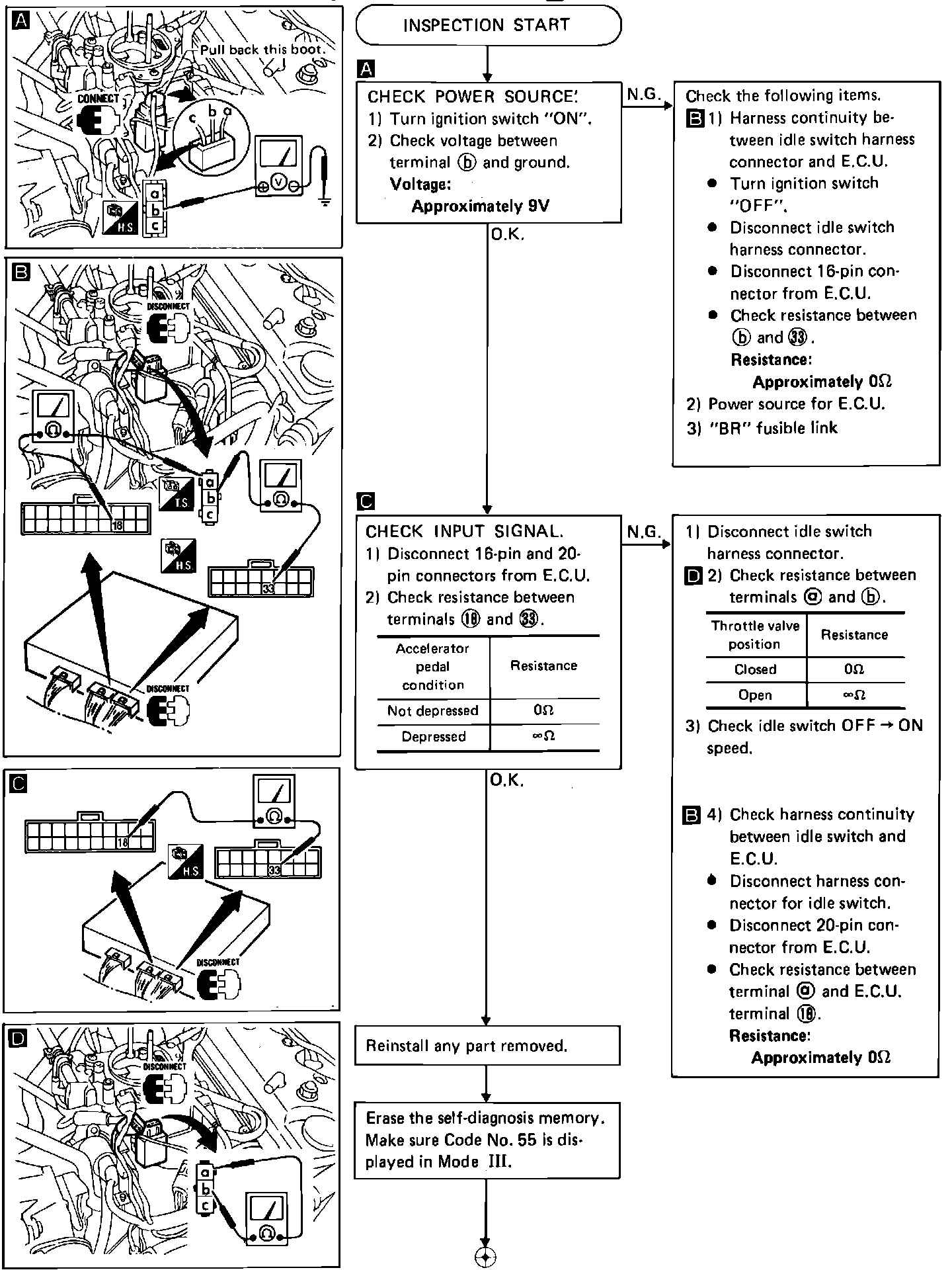

Fig. 276a Idle switch ON/OFF diagnosis procedure.:

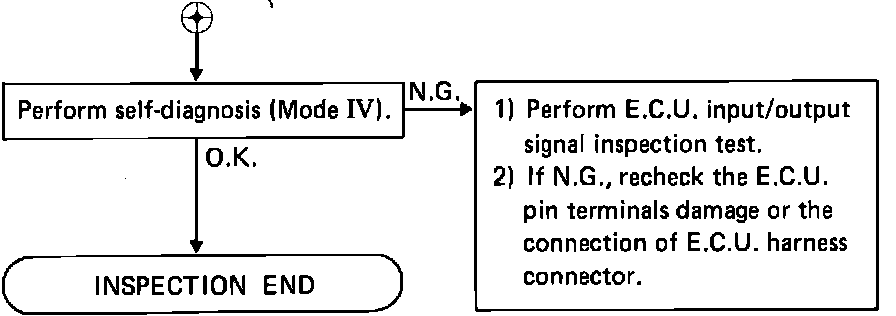

Fig. 276b Idle switch ON/OFF diagnosis procedure.:
