AIV Control Solenoid Valve
AIV Control Solenoid Valve

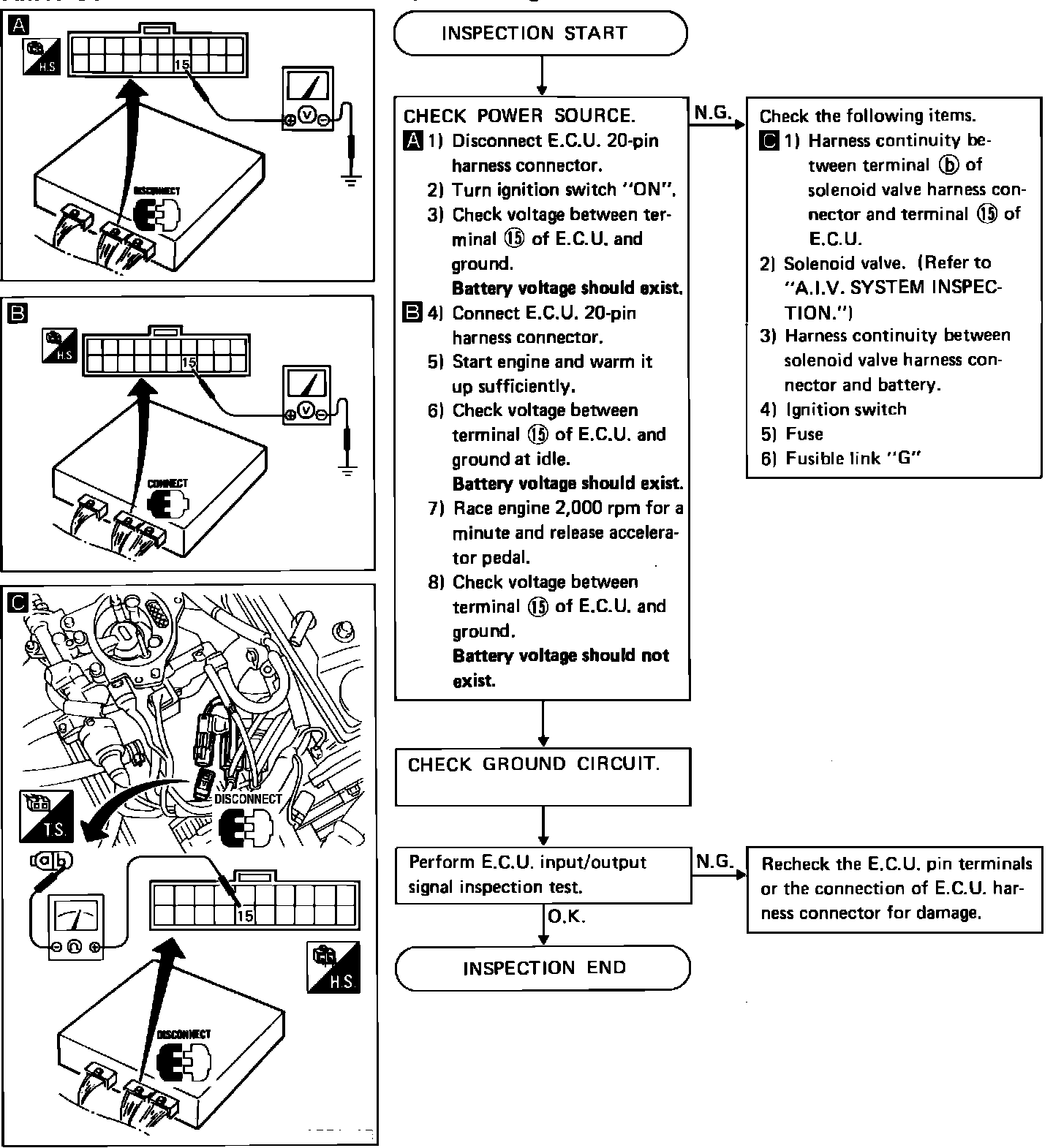

Fig. 344 AIV control solenoid valve circuit diagnosis.:
