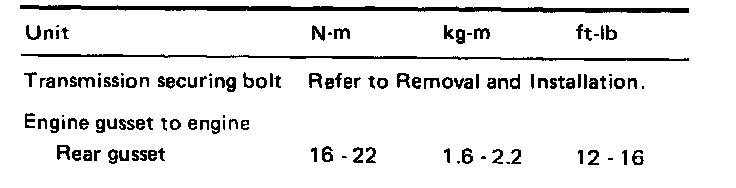

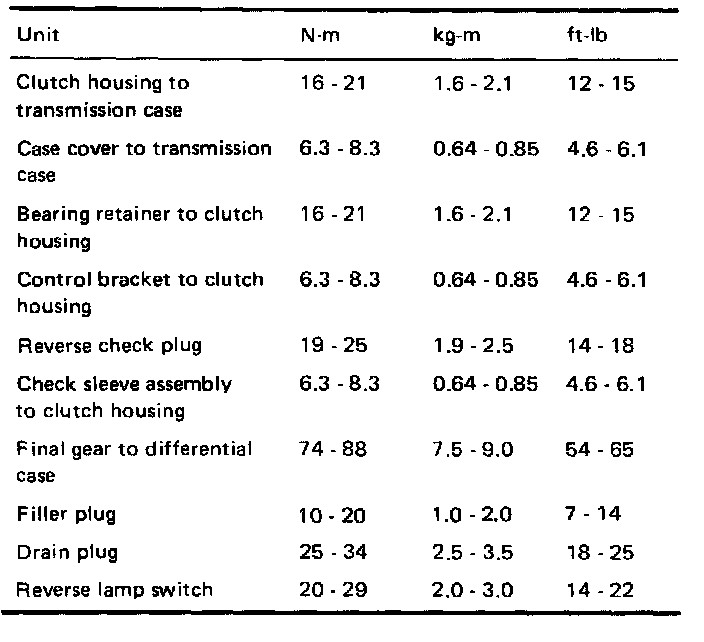

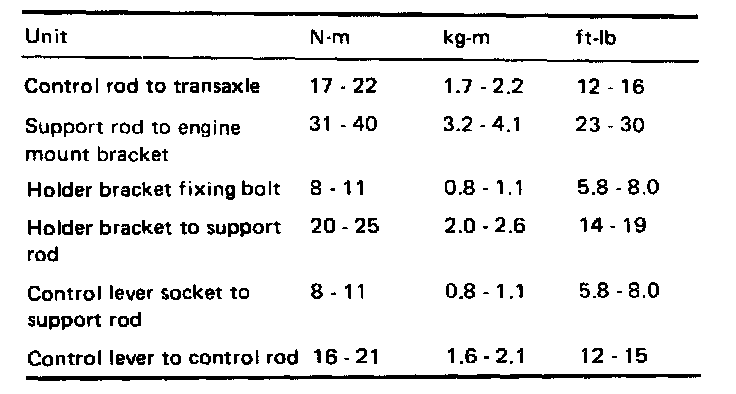

Tightening Torque

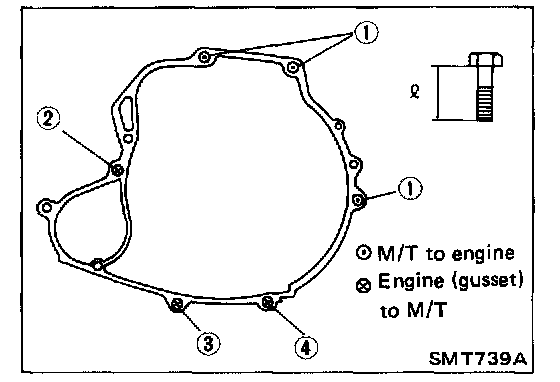

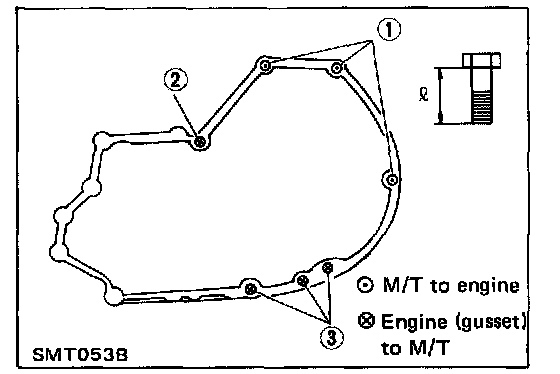

Transmission Installation:

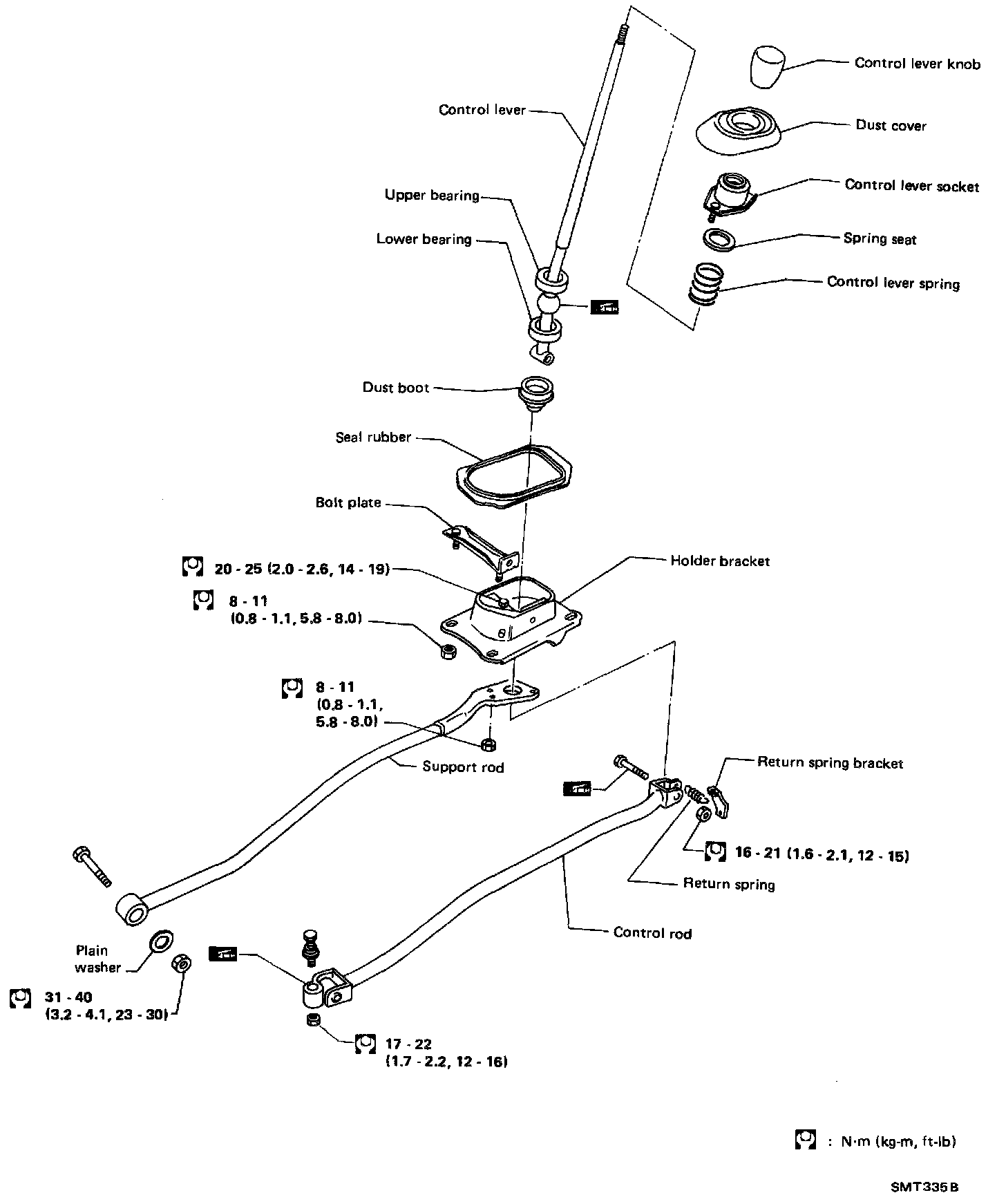

Gear Control:
Gear Assembly:

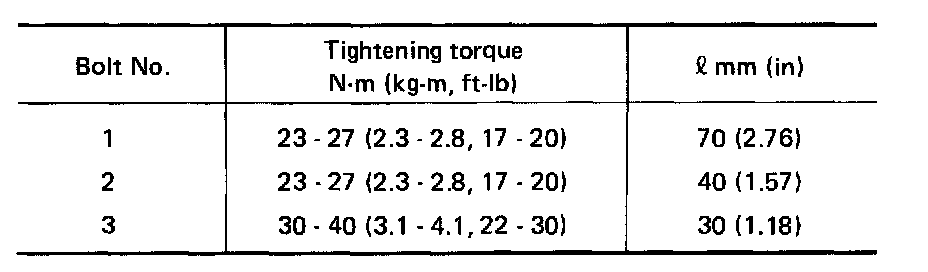

2WD Model:

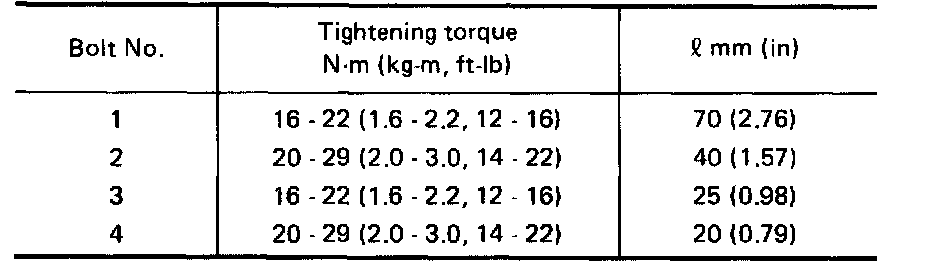

4WD Model:

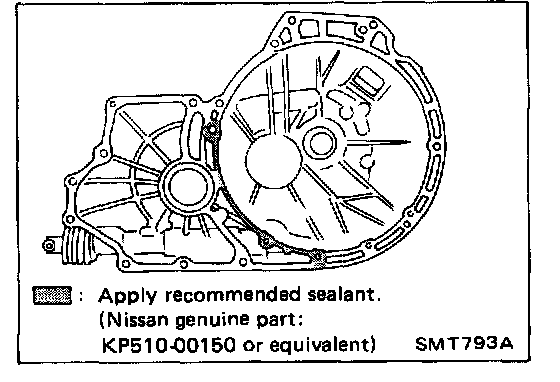

FOR 4WD MODEL
- Apply sealant when installing transaxle, as illustrated in the above image.

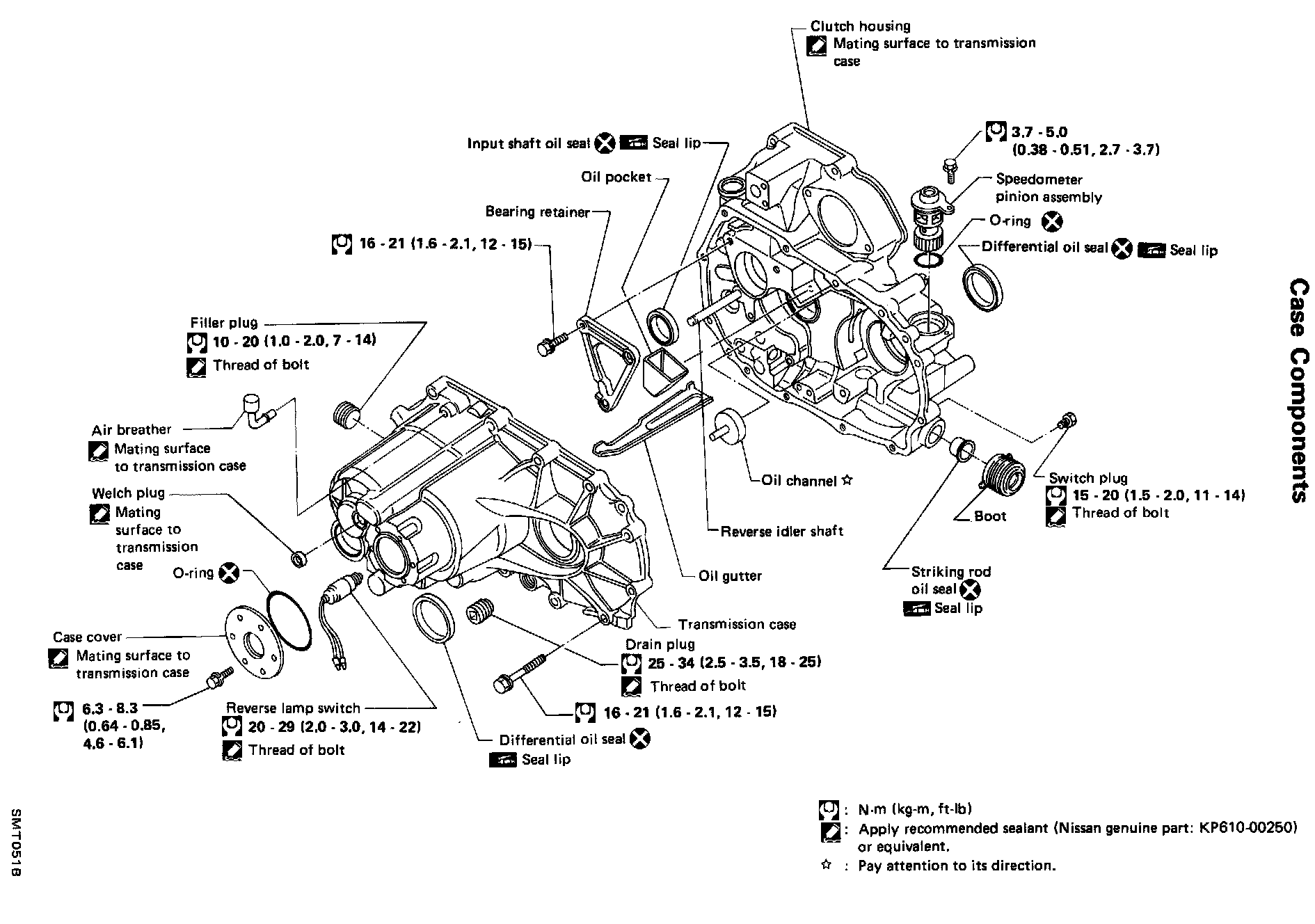

Case Components:

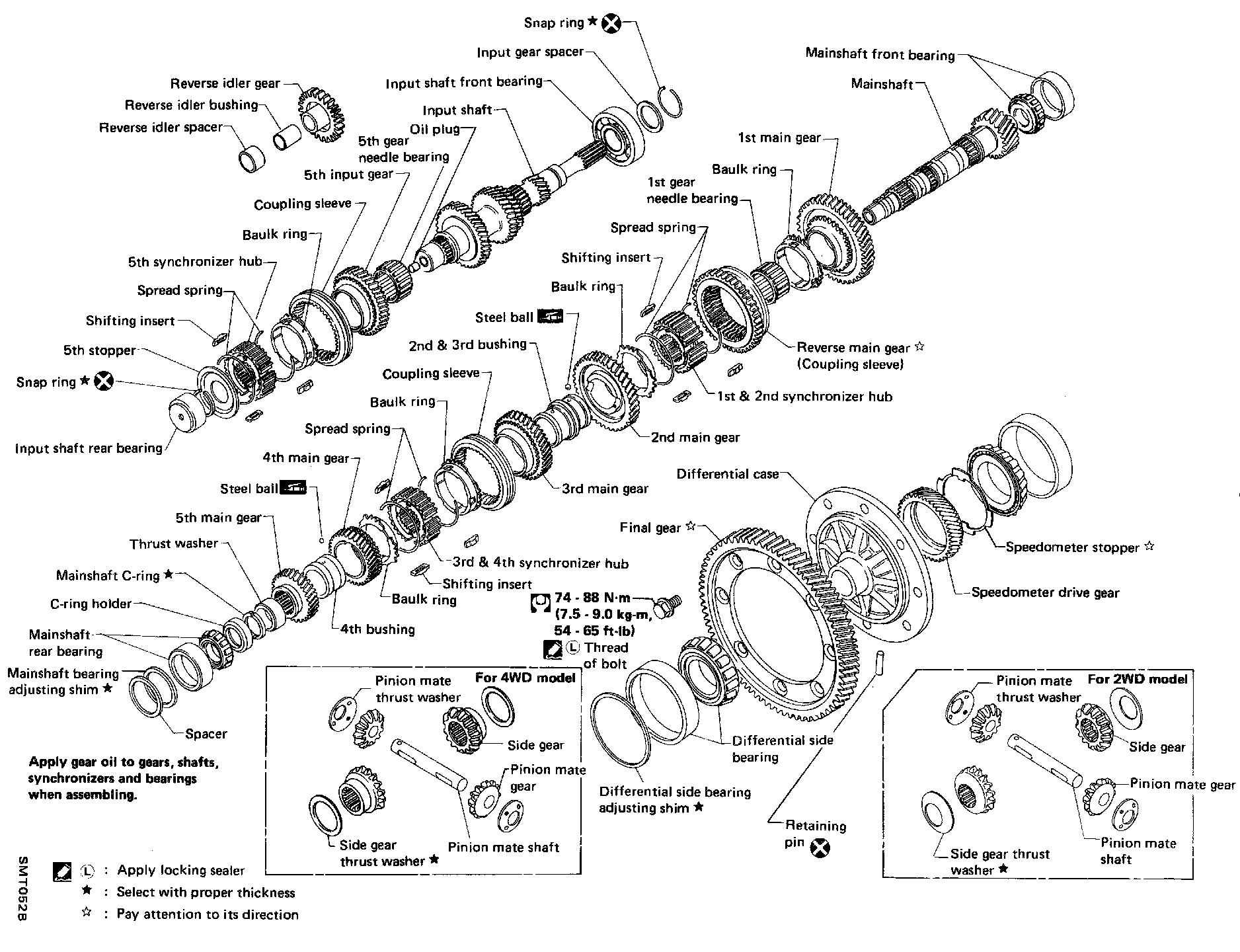

Gear Components:

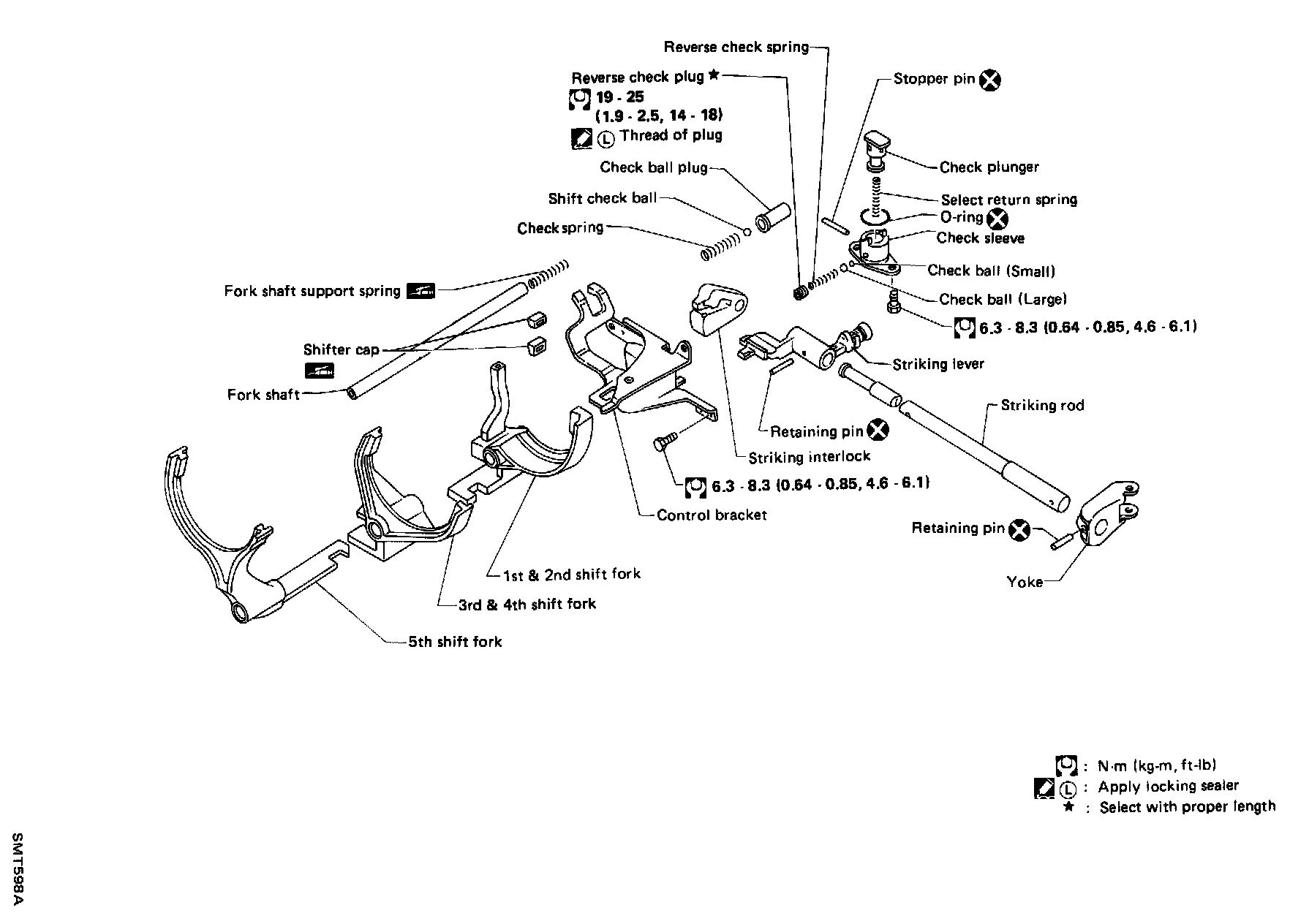

Shift Control Components:
FOR 4WD MODEL
- Apply sealant when installing transaxle, as illustrated in the above image.
