General Specifications & Clearances

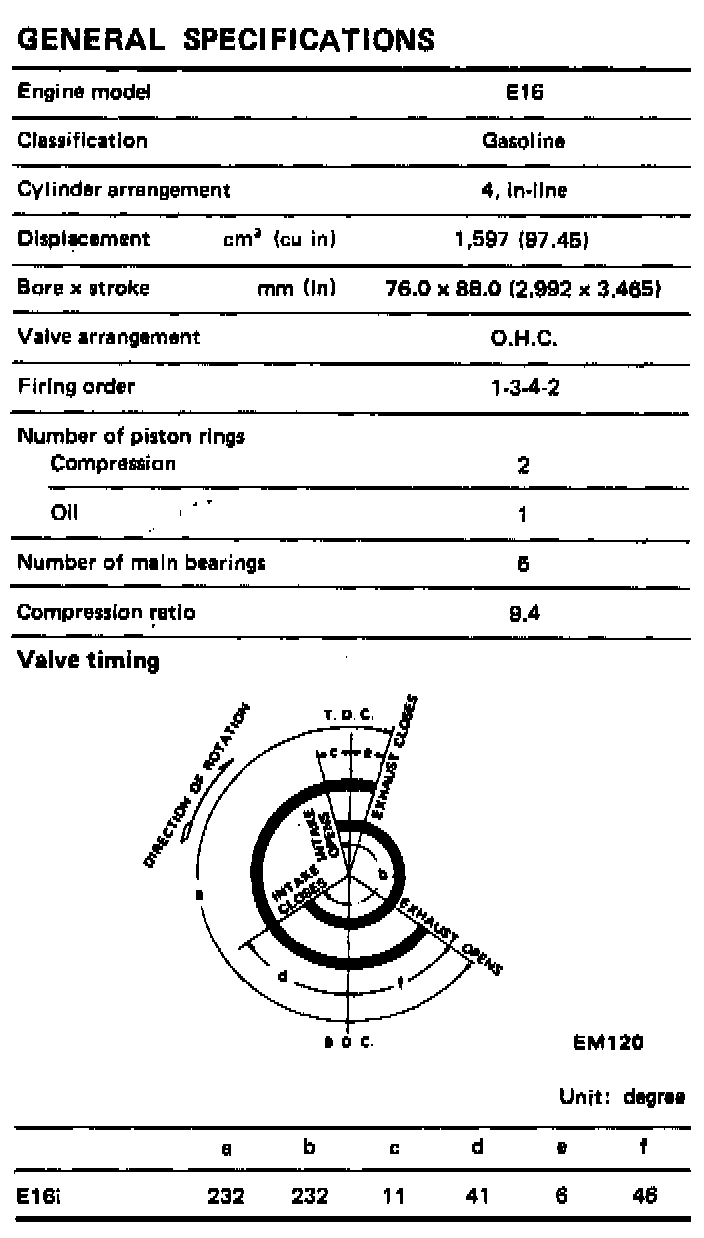

General Specifications:

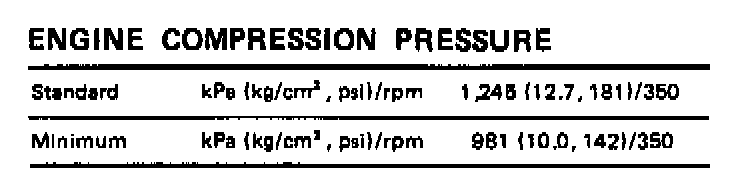

Compression Pressure:

Cylinder Head:

Valves:

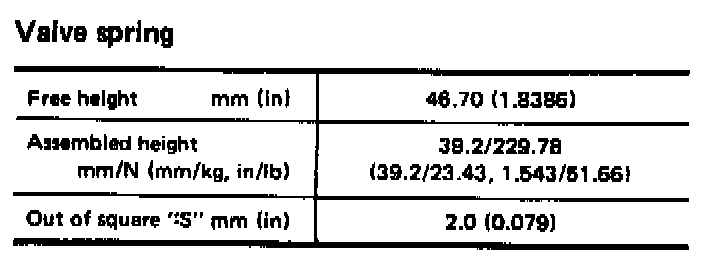

Valve Springs:

Valve Guides:

Valve Seats:

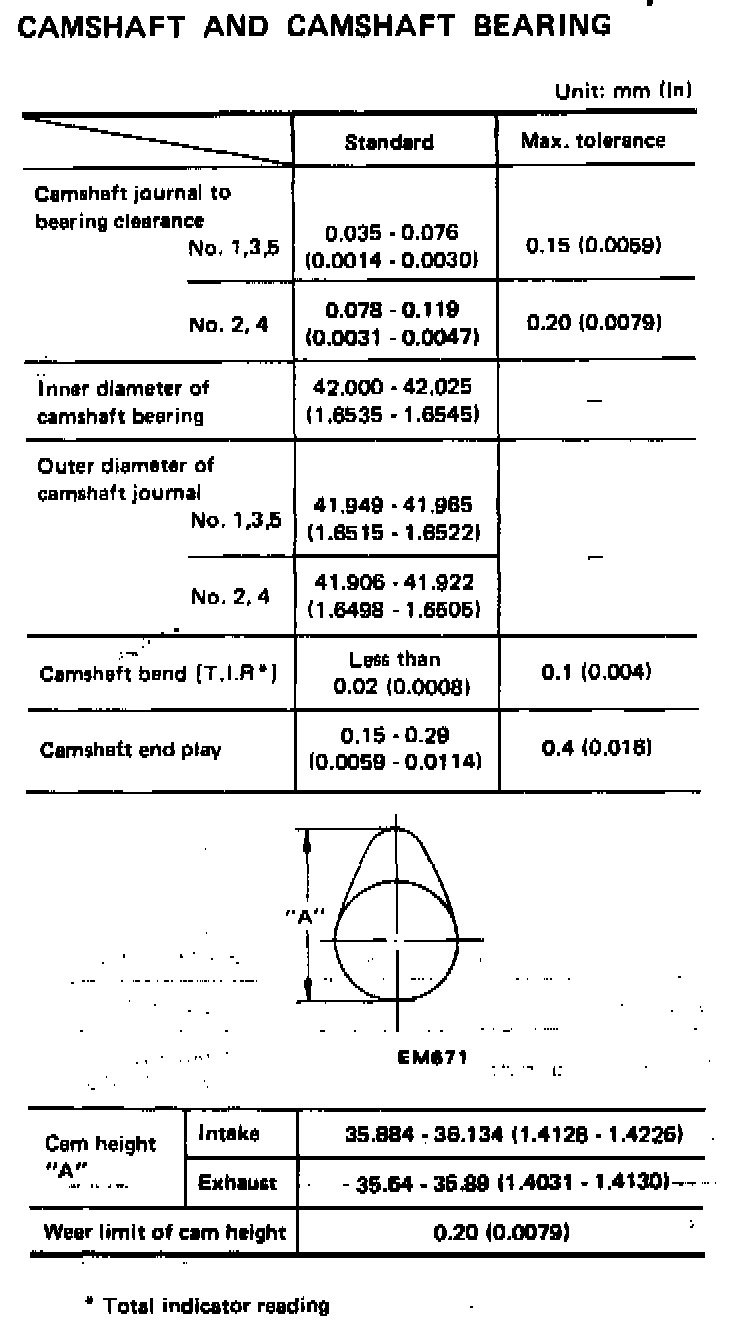

Camshaft And Camshaft Bearings:

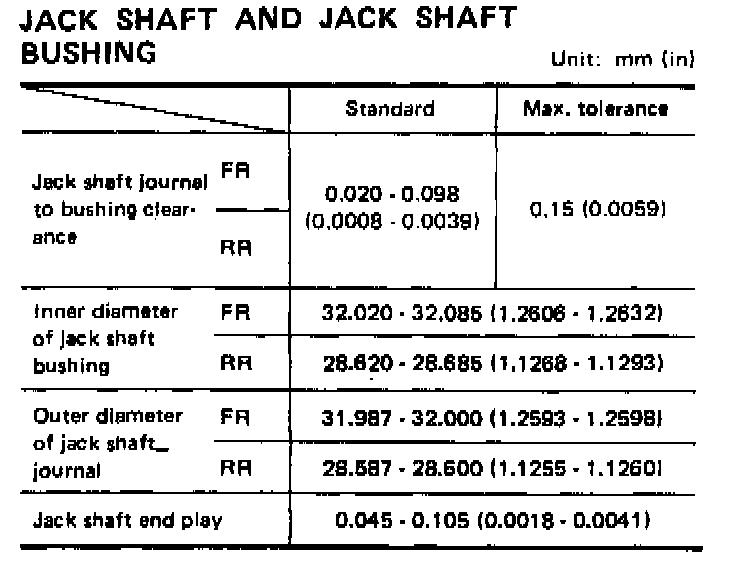

Jack Shaft And Jack Shaft Bushing:

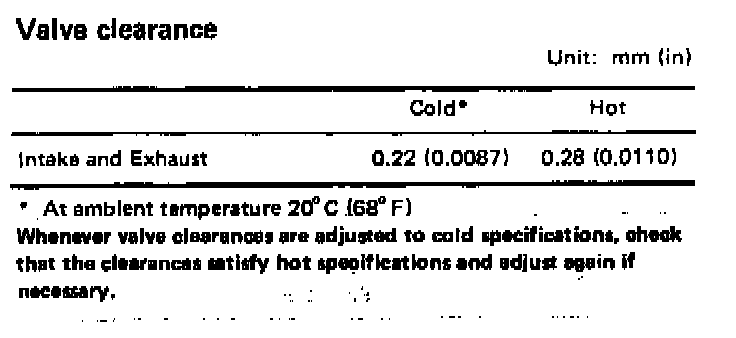

Valve Clearance:

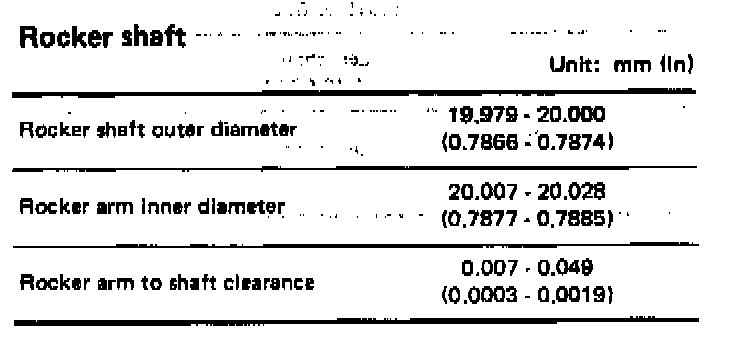

Rocker Shaft:

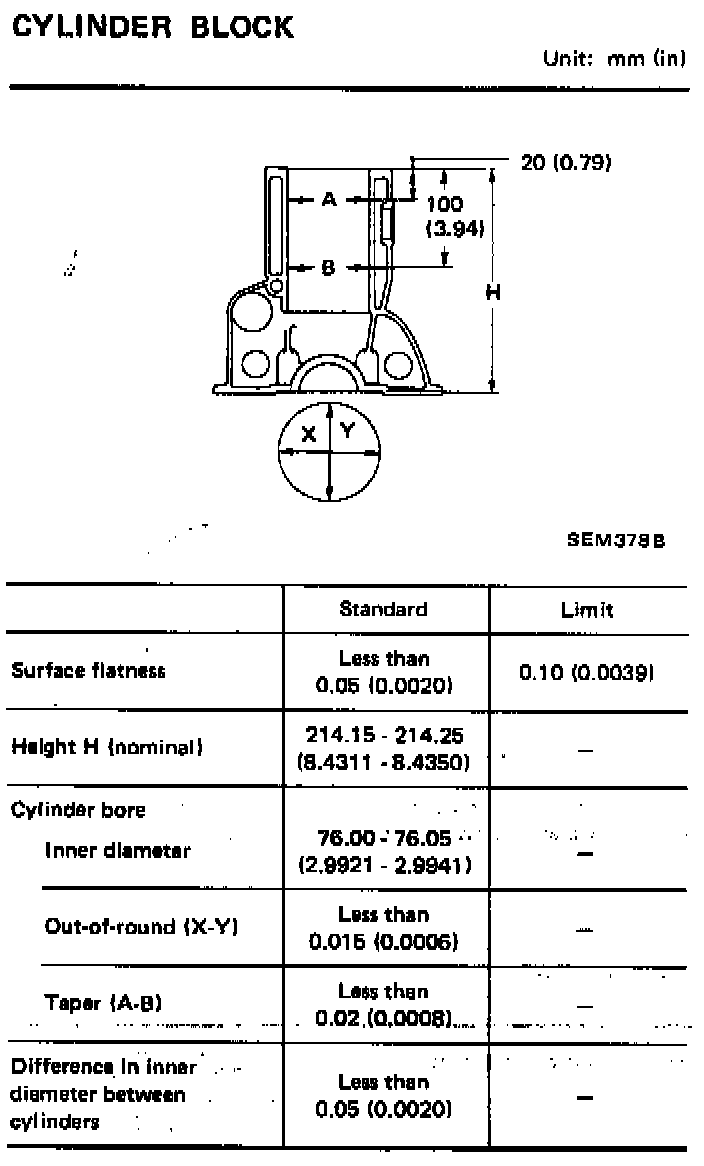

Cylinder Block:

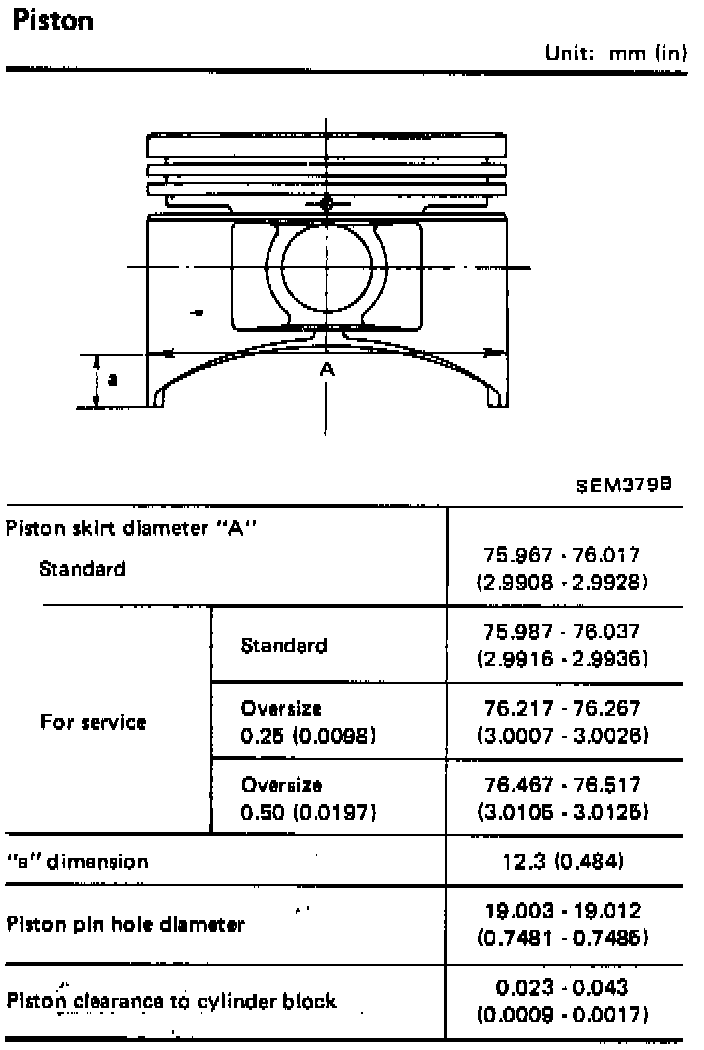

Piston:

Piston Ring:

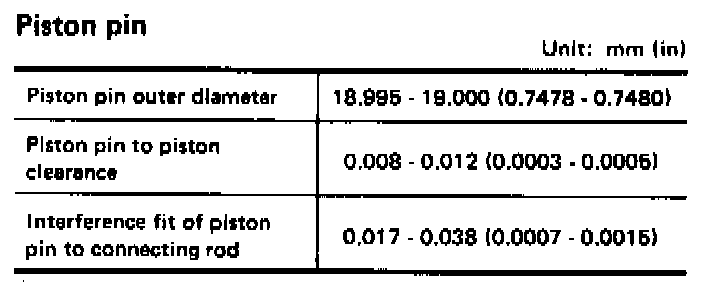

Piston Pin:

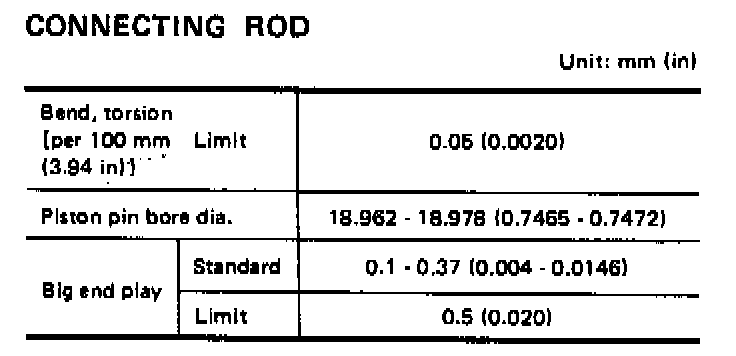

Connecting Rod:

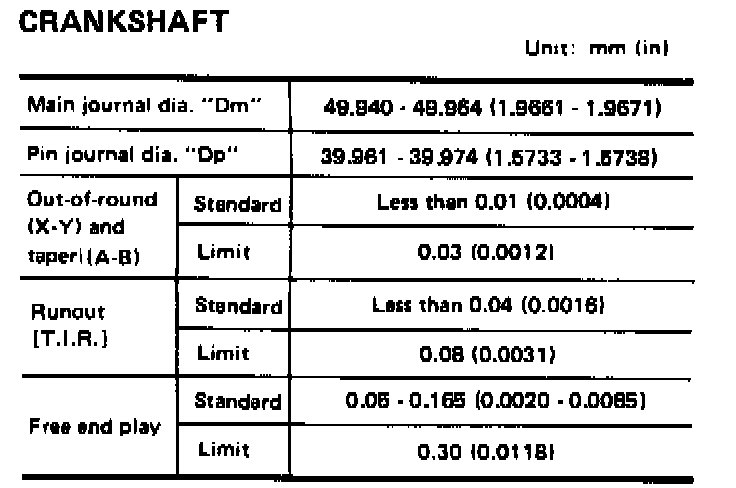

Crankshaft:

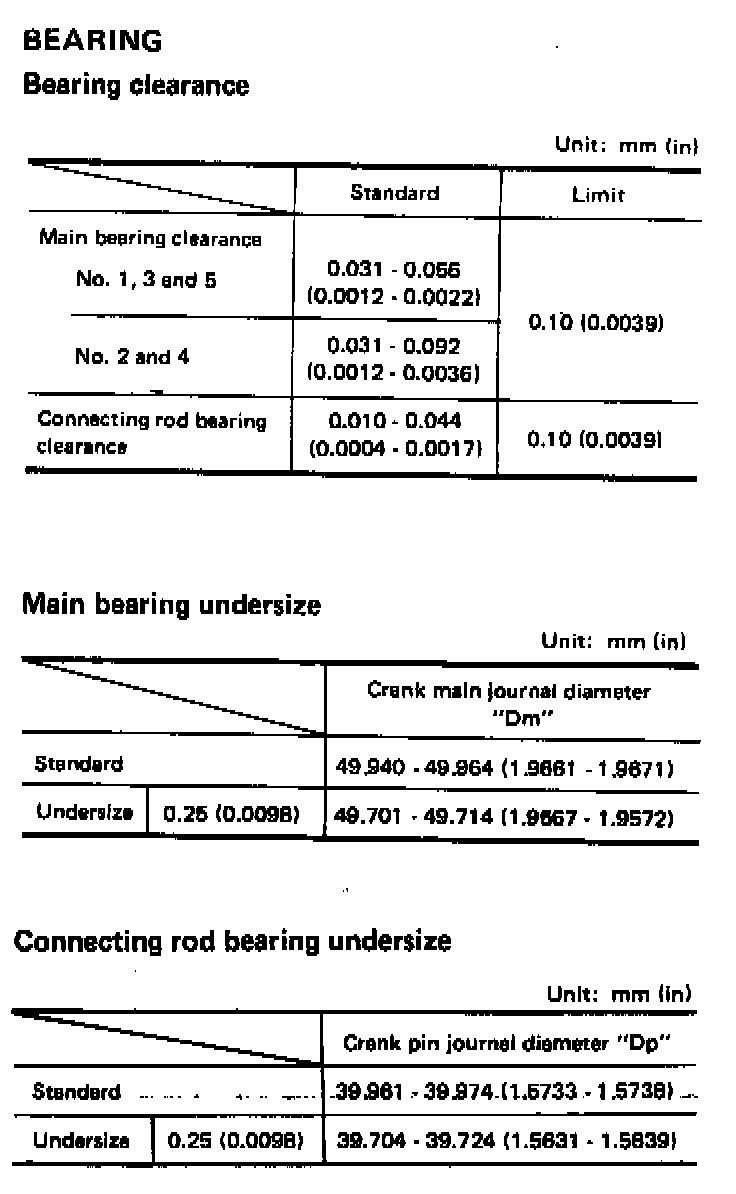

Main And Connecting Rod Bearings:

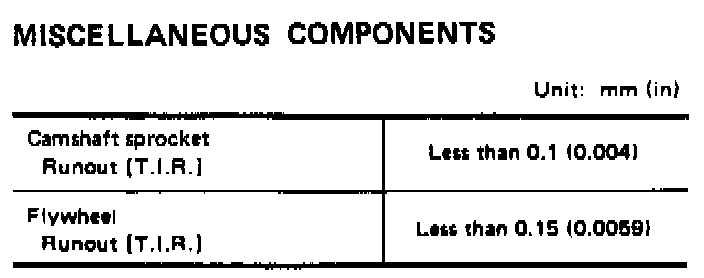

Misc. Components:
