Home
>>
Nissan-Datsun
>>
1988
>>
Sentra Hatchback Coupe L4-1597cc 1.6L SOHC (E16i)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition Switch
Ignition Switch

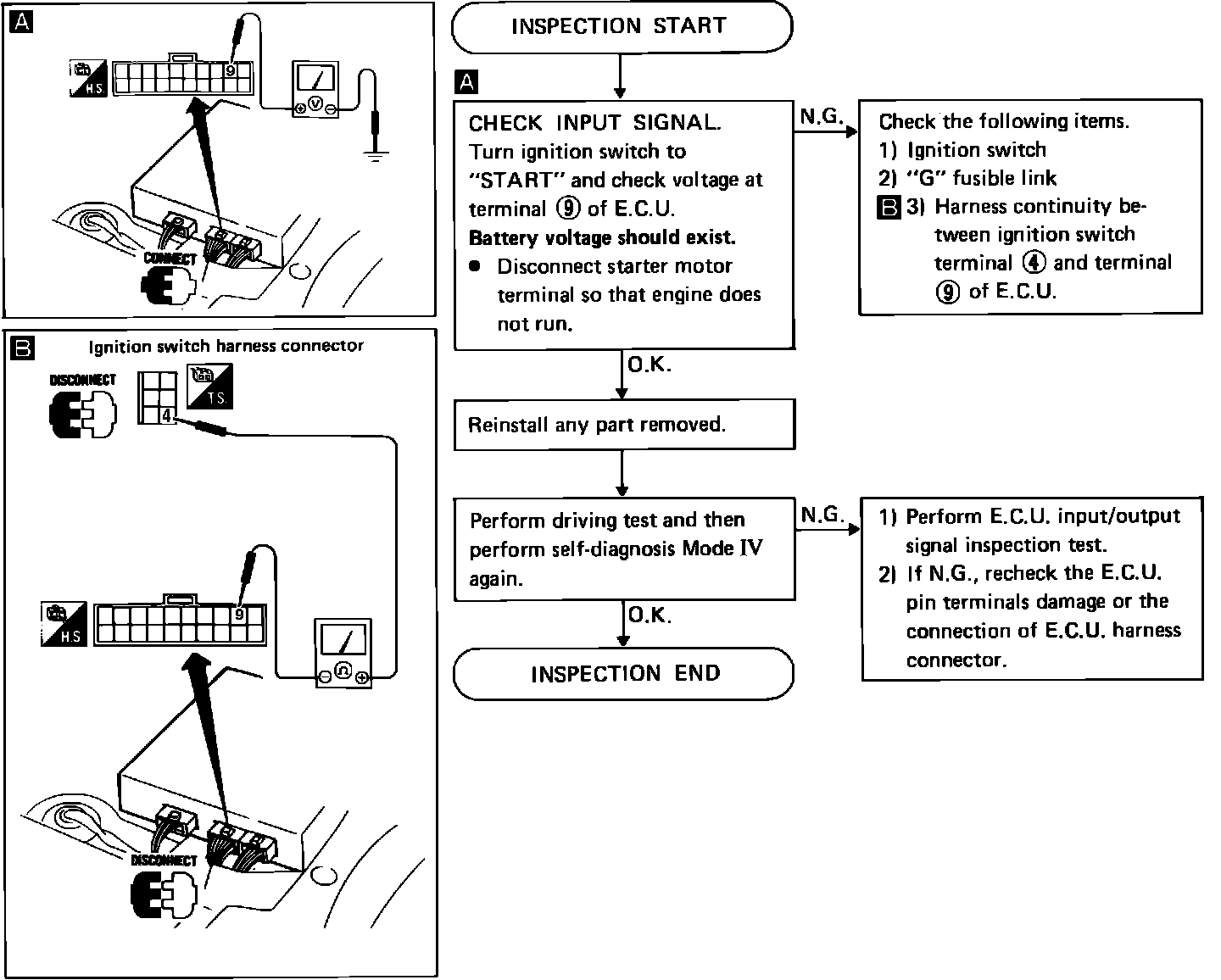

Fig. 277 Start signal switch ON/OFF diagnosis procedure.:
