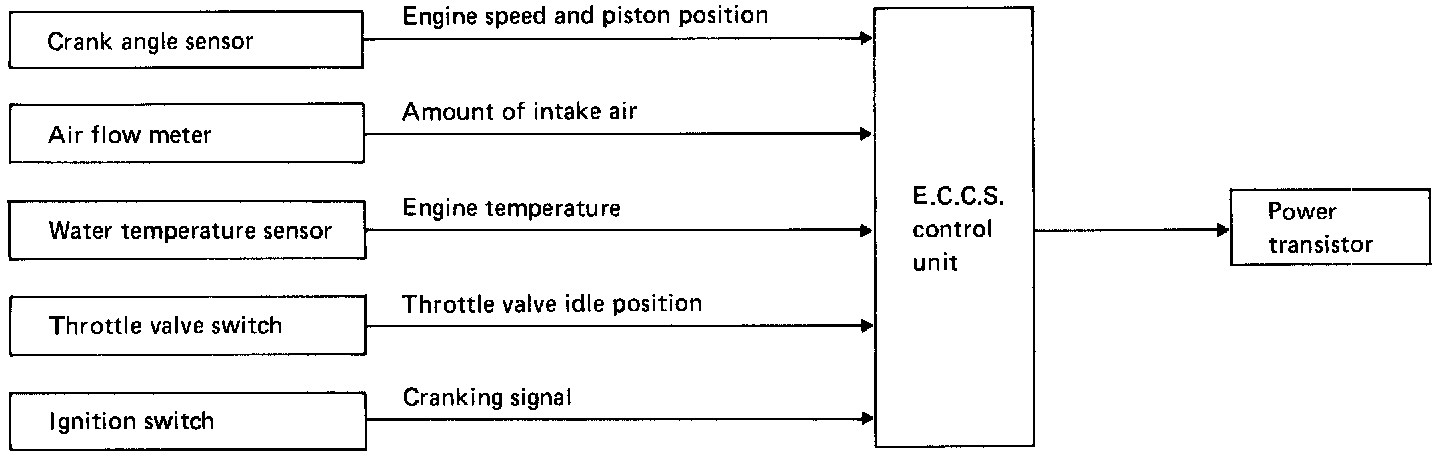

Spark Timing Control System

Ignition timing is controlled corresponding to the engine operating conditions.
The optimum ignition timing in each driving condition is preprogrammed in the E.C.U. The signal from the E.C.U. is transmitted to the power transistor and controls ignition timing.
