Component

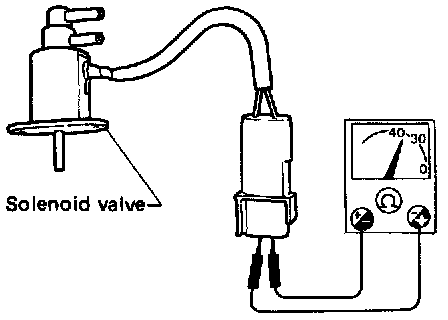

1. Check the solenoid valve for electric continuity, after disconnecting the harness connector.
Continuity should exist.

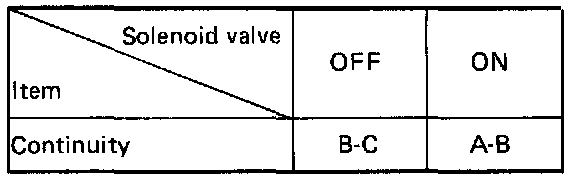

2. Check the solenoid valve for normal operation, after disconnecting the harness connector and all the vacuum hoses. Supply the solenoid valve with battery voltage, and check whether there is continuity between ports A, B and C
