Nissan-Datsun
>>
1988
>>
Sentra Hatchback Coupe L4-1597cc 1.6L SOHC (E16i)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Start Signal
Start Signal

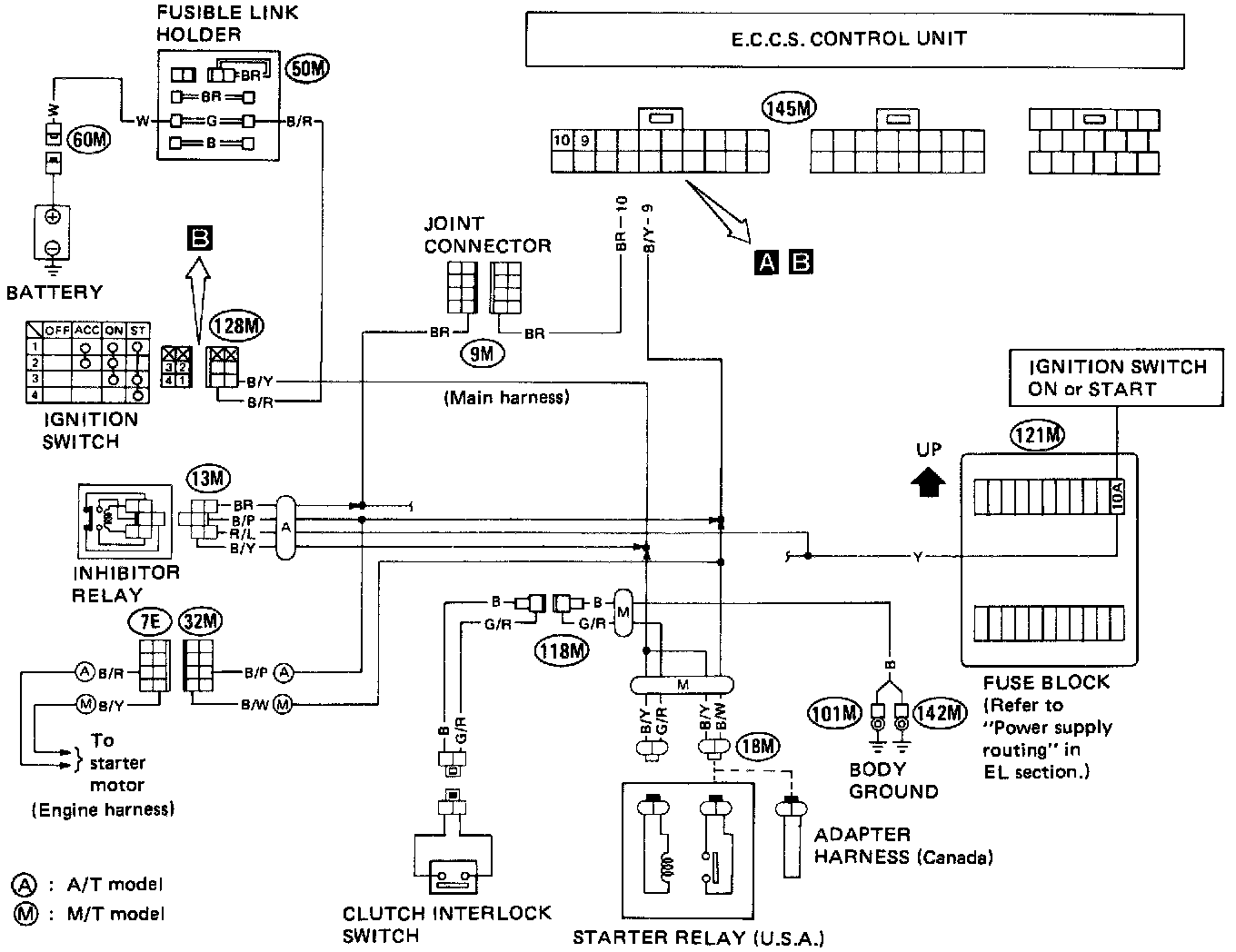

Wiring Diagram

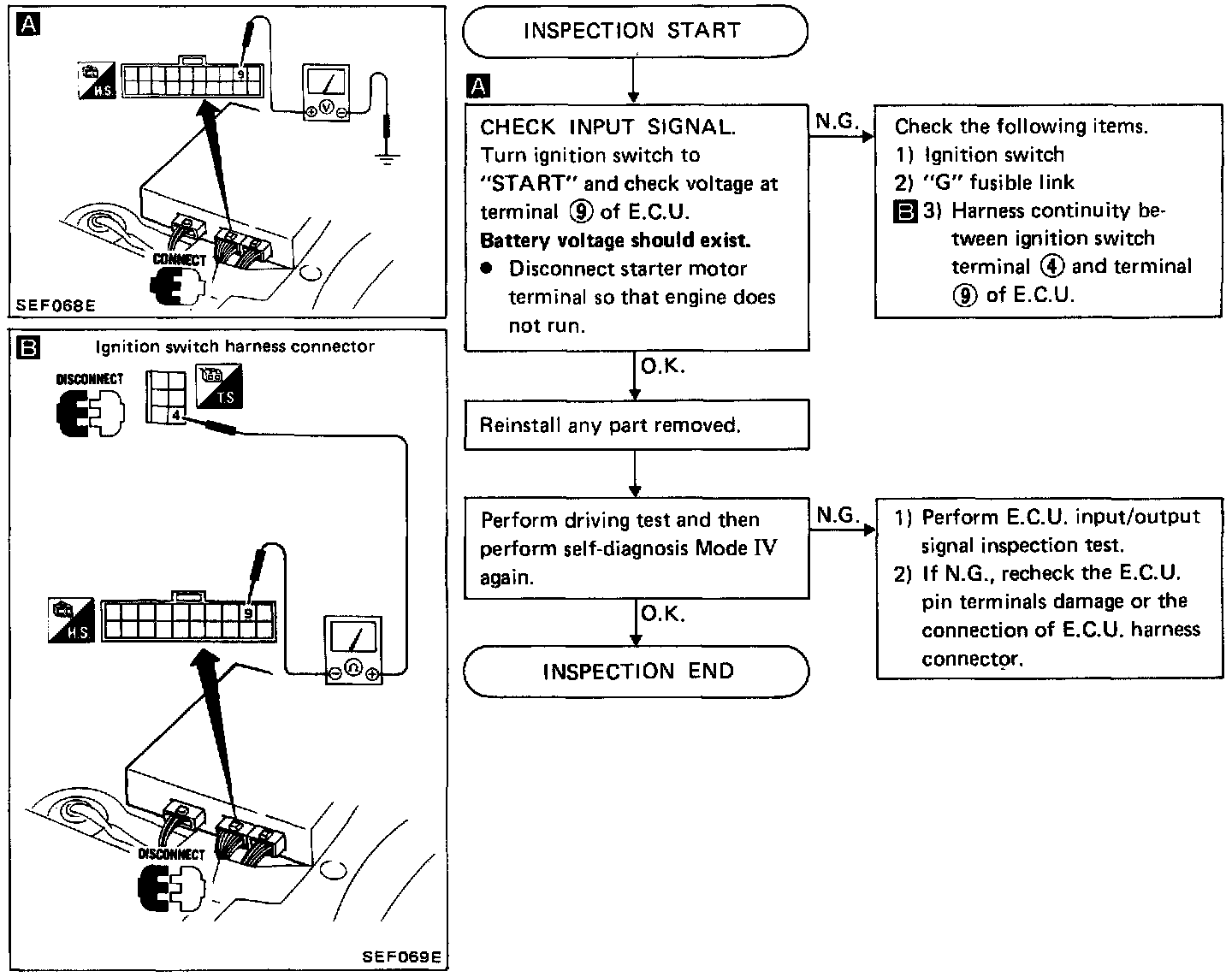

(Switch ON/OFF diagnosis)
