Mixture Heater Relay Control Circuit
Mixture Heater Relay Control Circuit

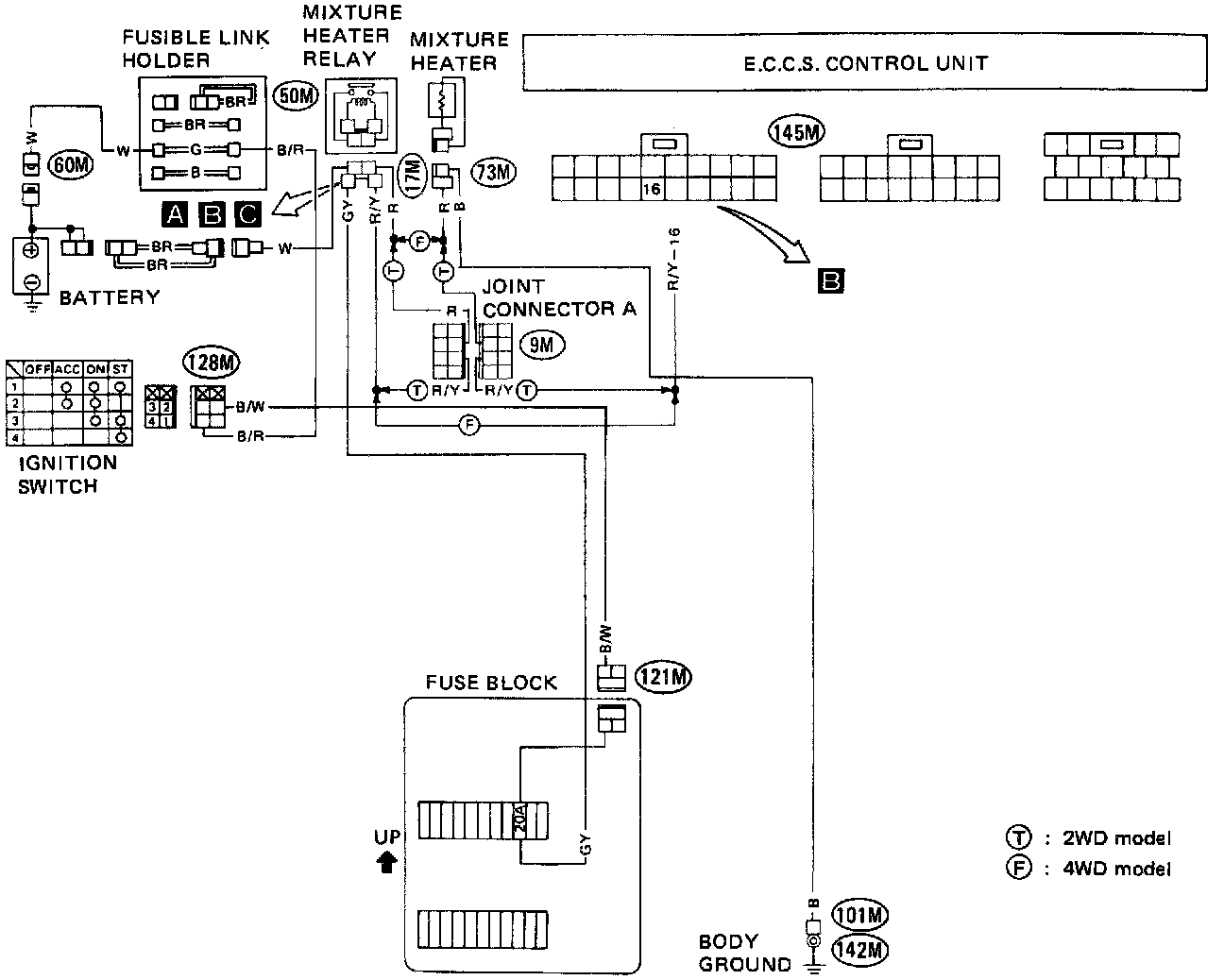

Wiring Diagram

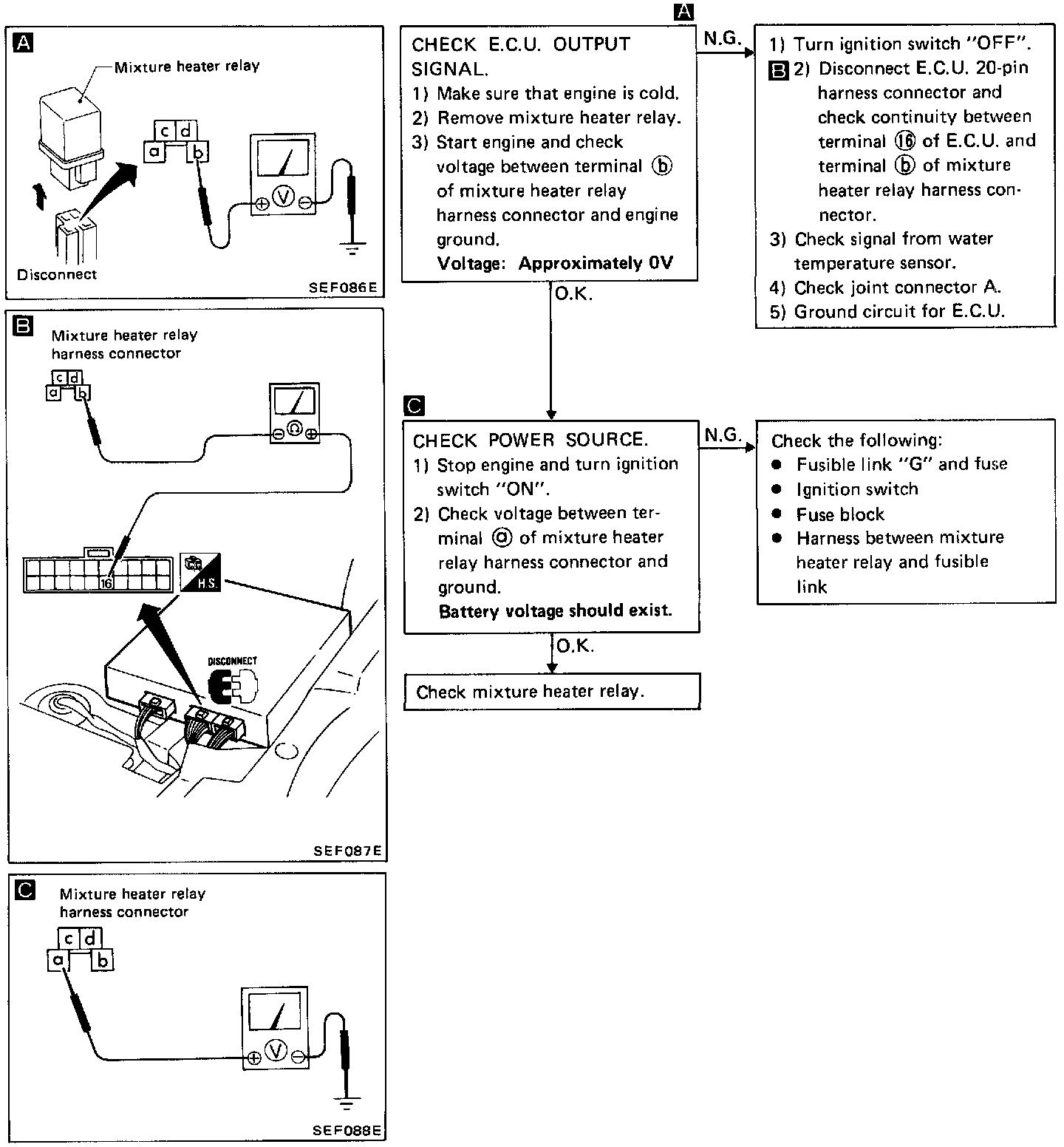

Inspection Procedure
(Not self-diagnostic item)
