Pulsar SE Modification Procedure

FIGURE 3:

1. Disconnect the E.G.R. temperature sensor connector (34F) (Figure 3).

FIGURE 2:

FIGURE 4:

2. Install the countermeasure sub-harness between the E.C.C.S. harness and the exhaust gas temperature sensor connector.

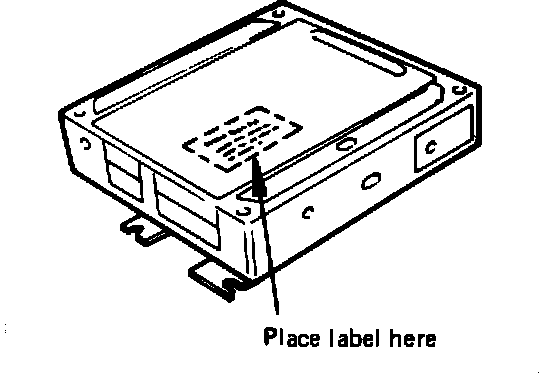

3. Apply the countermeasure application sticker (refer to Figure 2) to the top of the control unit (Figure 4).

FIGURE 1:

4. Apply the campaign completion label (Figure 1) to the underside of the hood.

NOTE: Installation of this sub-harness may result in a self diagnosis code of 35 appearing during future system diagnosis. This code is now normal and does not indicate a malfunction.
