Sentra Hatchback Coupe L4-1597cc 1.6L SOHC (E16i)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Column
Steering Column

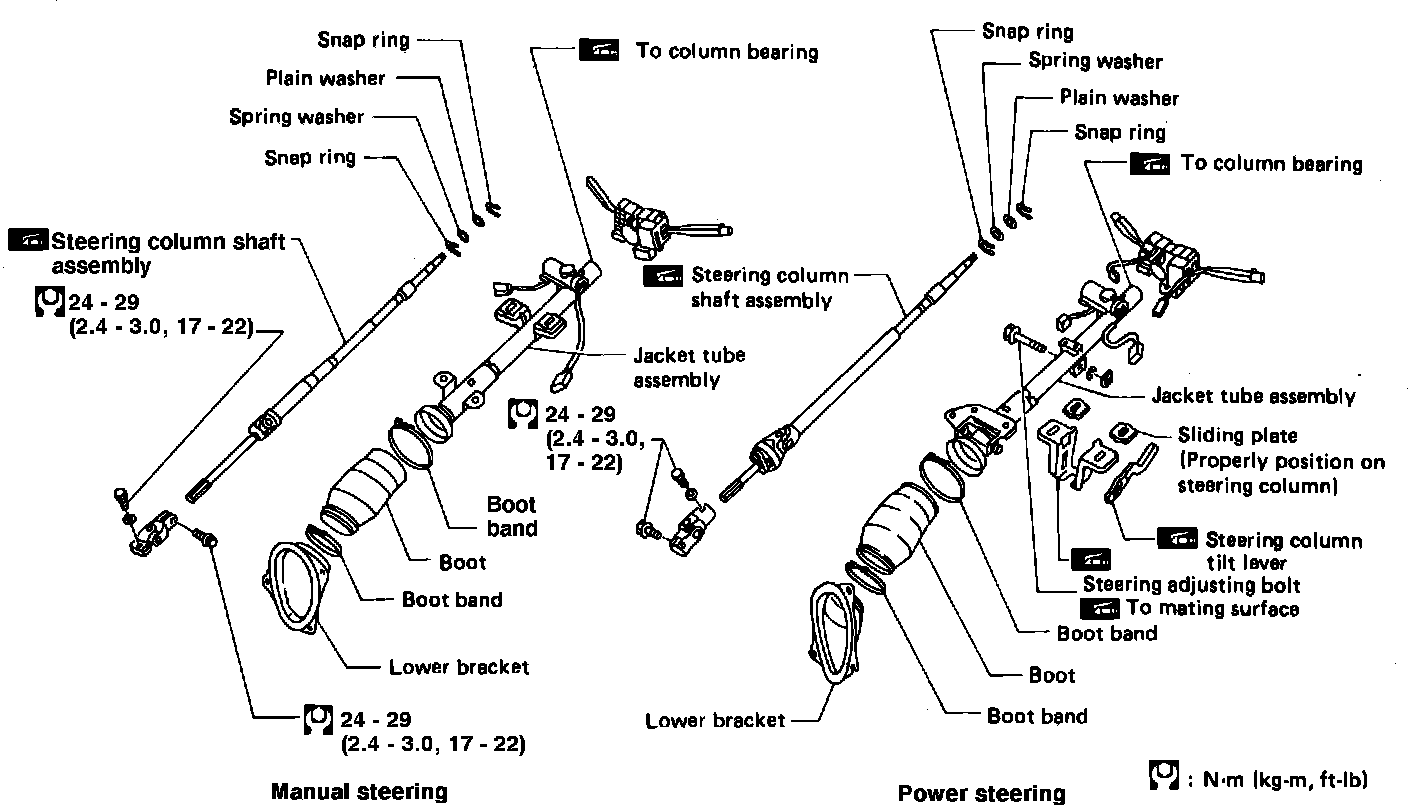

Fig. 12 Exploded view of steering column. 1987-88 Sentra:
