Engine - Compression Ratio Correction

9217nissan01

Models: 1988 Pulsar SE

Section: Engine Mechanical

Classification: EM86-002

Bulletin No.: TS88-021

Date: February 22, 1988


APPLIED MODEL:
1988 Pulsar SE with CA18DE engine

Pagg EM-91 of the 1988 Pulsar Service Manual [July 1987 (03) and January 1988 (04) printings], shows an incorrect compression ratio of 10.0. The correct ratio is 9.5. Please make this correction by hand in your copy of the Service Manual as shown below.

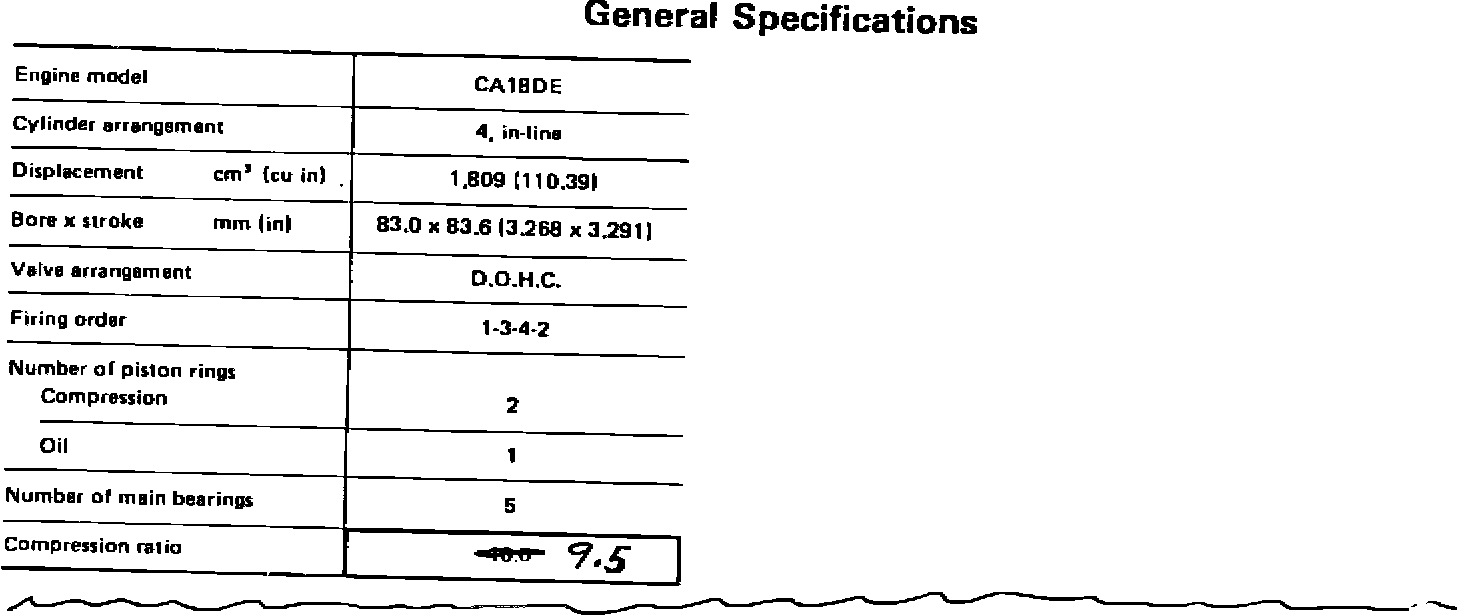

SERVICE DATA AND SPECIFICATIONS (S.D.S.)
