Mixture Heater Control Circuit
Mixture Heater Control Circuit

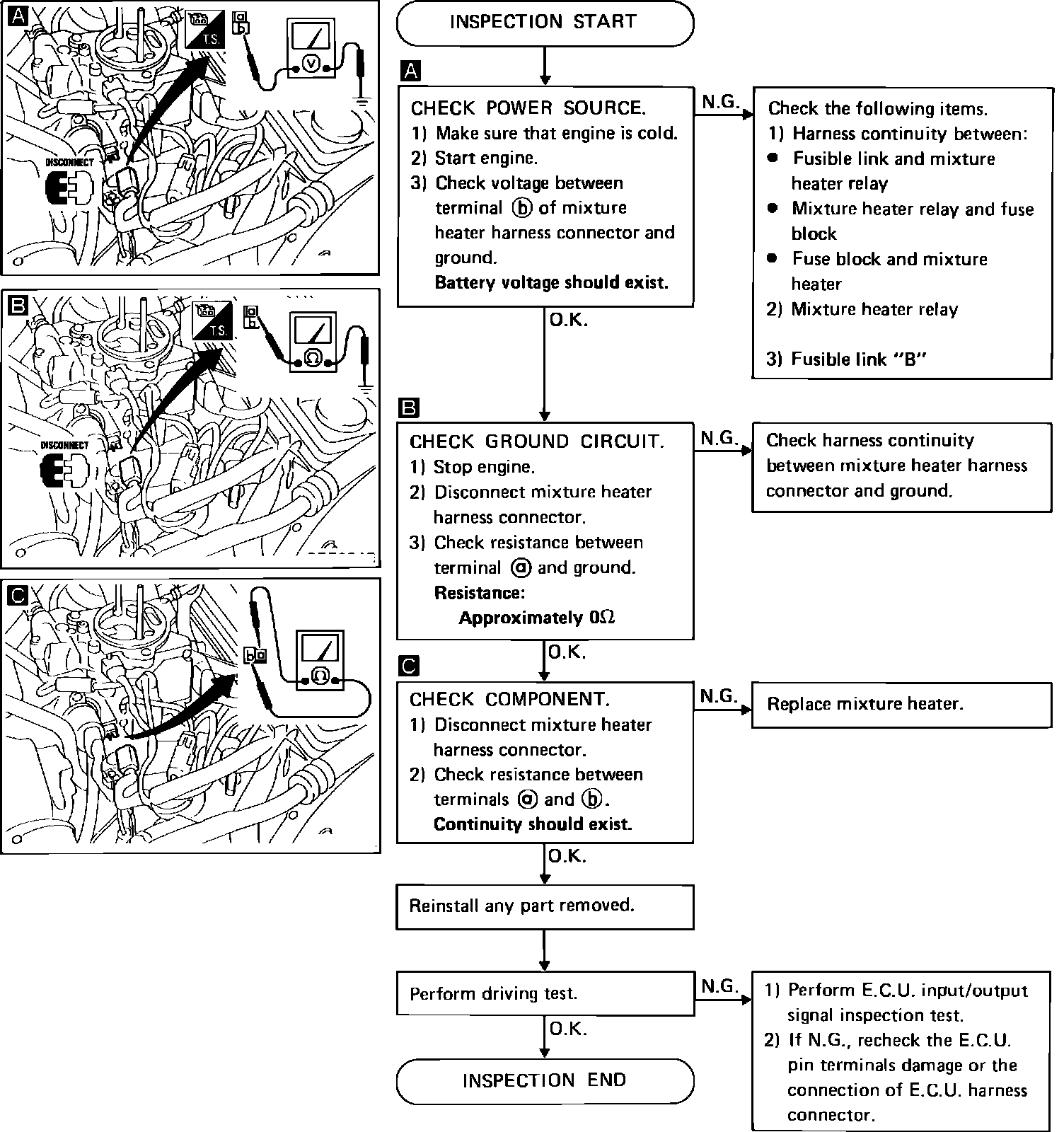

Fig. 337 Mixture heater circuit diagnosis.:
