Fuel - Updated Procedure For Injector Leak Inspection

88nissan09

Classification: Section: Engine Fuel

EF&EC88-019A & Emission Control

Reference:
TECHNICAL BULLETIN TS88-119A

Models: 1988 Stanza and Pulsar NX

Date: October 20, 1988

PROCEDURE FOR INJECTOR LEAK INSPECTION


The attached Bulletin and past-on pages (EF&EC-84 and EF&EC-220) supersede Technical Bulletin EF&EC88-019 (TS88-119) dated September 22, 1988. The previous past-on pages were incorrect. Please replace them with the attached corrected pages.

PROCEDURE FOR INJECTOR LEAK INSPECTION


APPLIED MODELS: 1988 Stanza Sedan (T12)
1988 Pulsar NX SE(KN13)


SERVICE INFORMATION

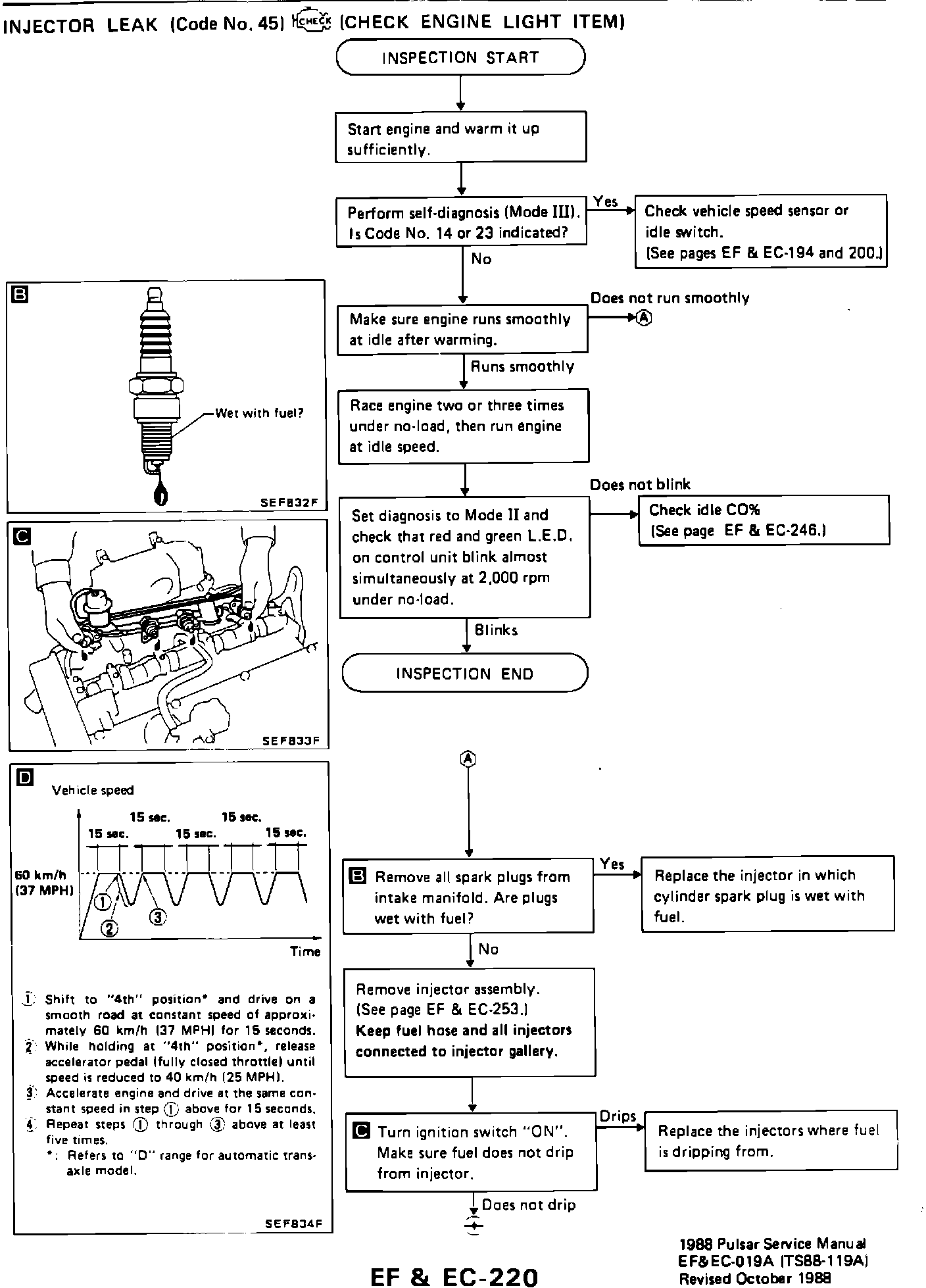

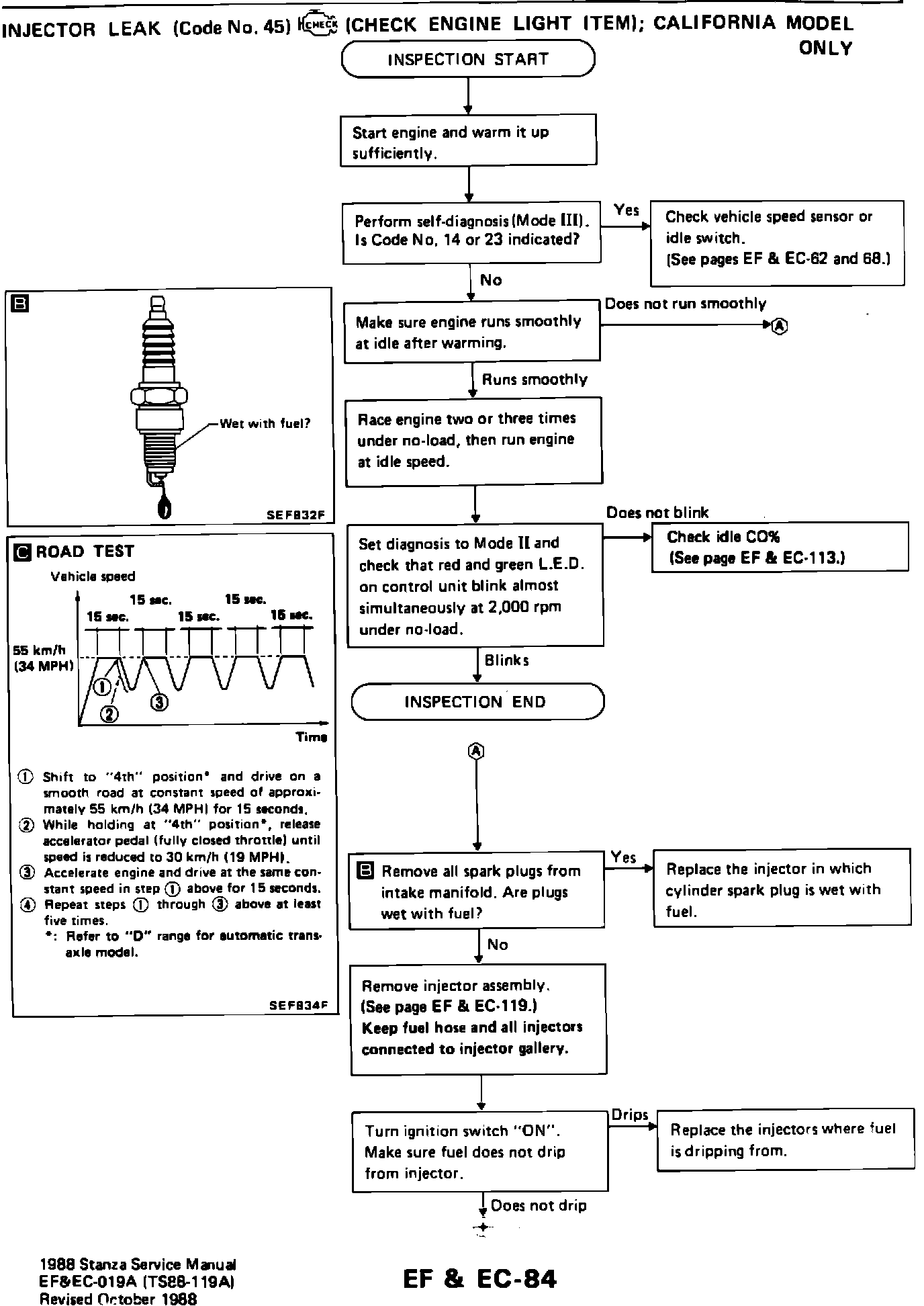

The procedure for inspecting an injector for leaking has been modified for the 1988 Stanza Sedan and Pulsar NX SE. The attached Service Manual pages (EF&EC-84 for the Stanza; EF&EC-220 for the Pulsar) reflect these changes. Please paste them in your copies of subject Service Manual.

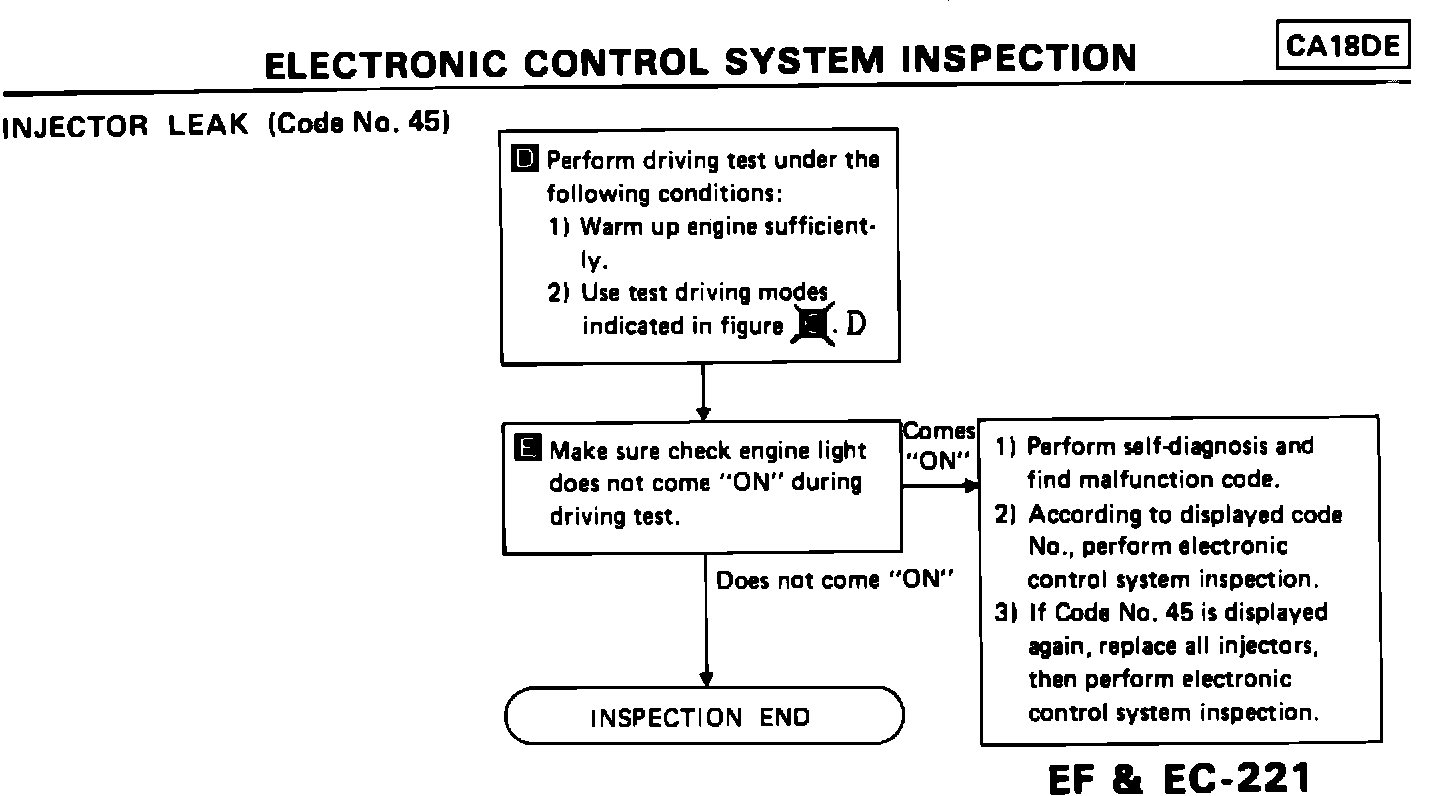

Also page EF&EC-221 in the 1988 Pulsar NX Service Manual has an incorrect reference letter. Please correct it by hand as shown below.
