Nissan-Datsun
>>
1988
>>
Pulsar L4-1597cc 1.6L SOHC (E16i)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Component Locations
Component Locations

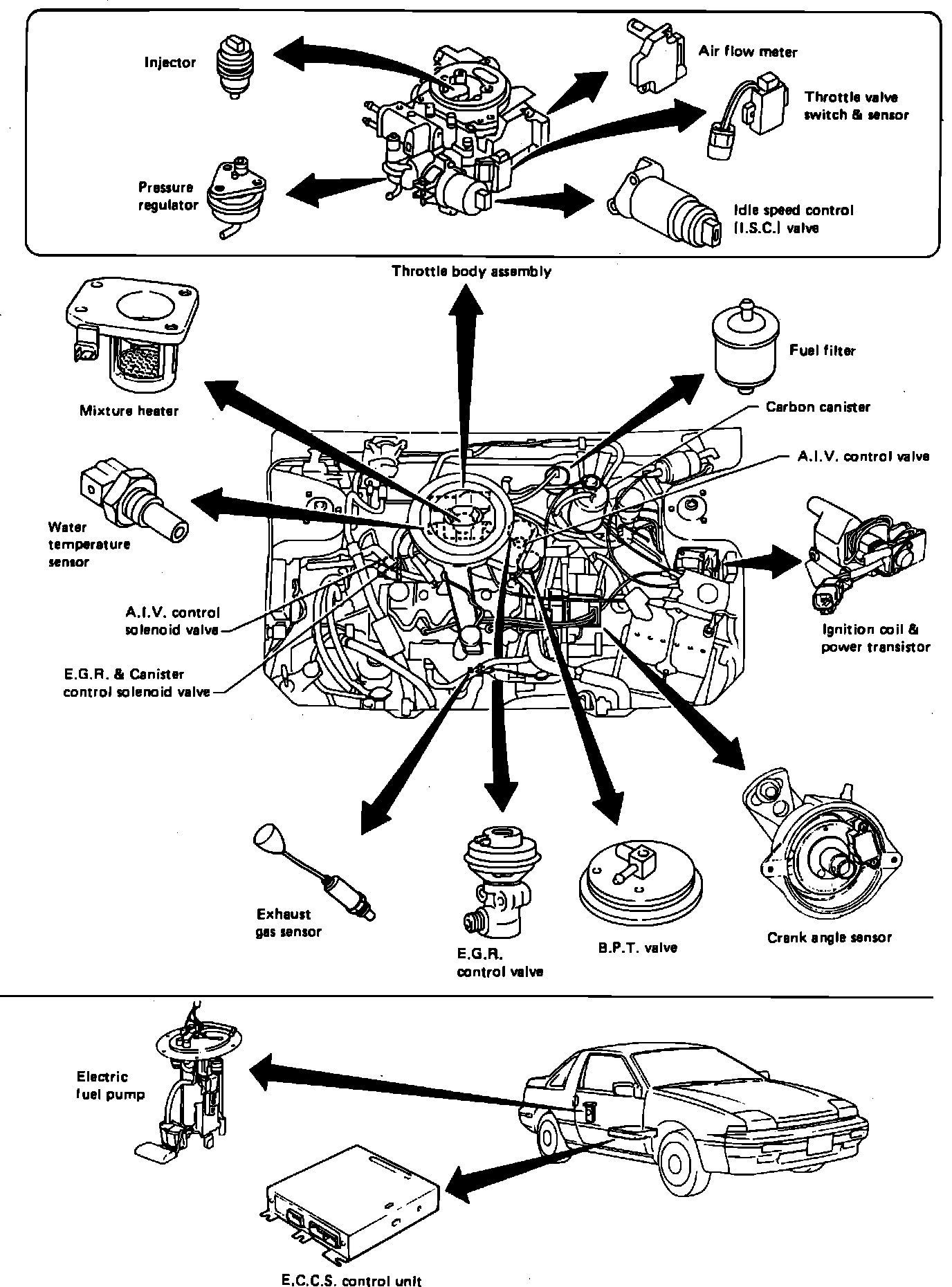

ECCS Components.:
General Underhood View

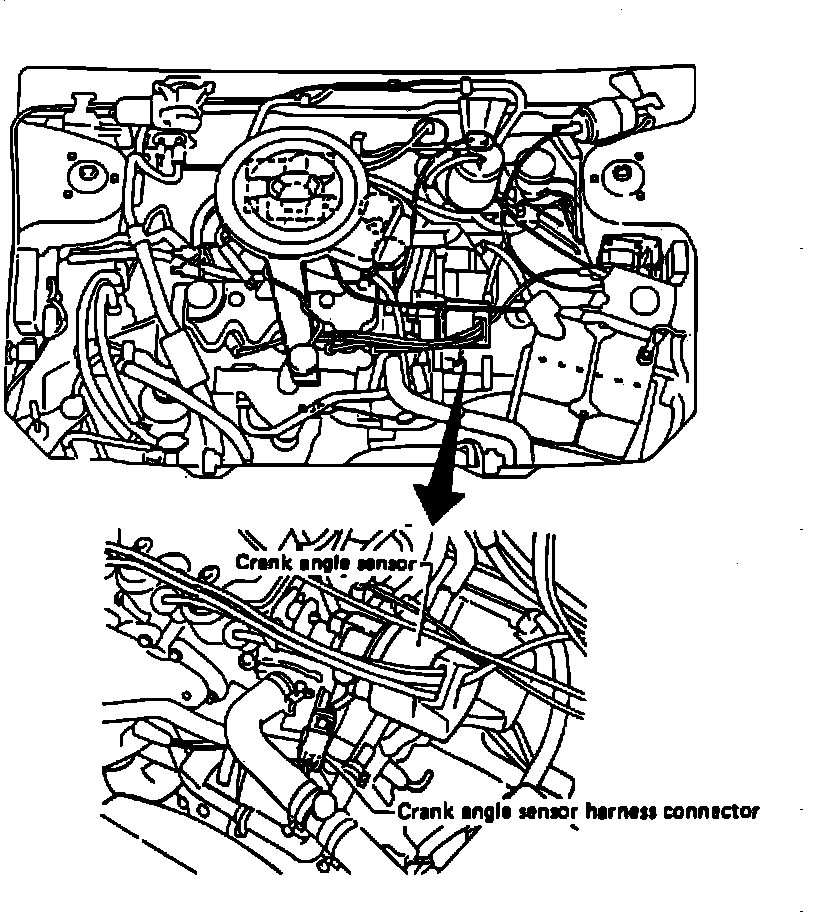

LH Side Of Engine Compartment.:
Crank Angle Sensor Connector
