Inspection and Adjustment

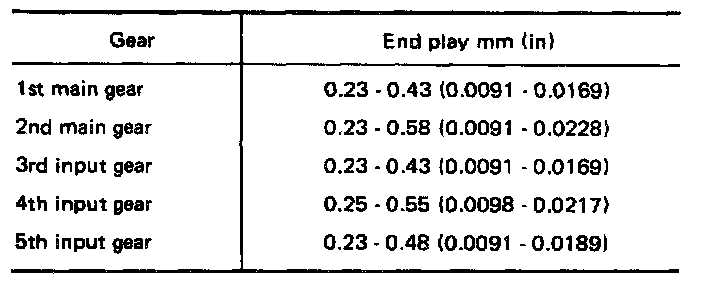

Gear End Play:

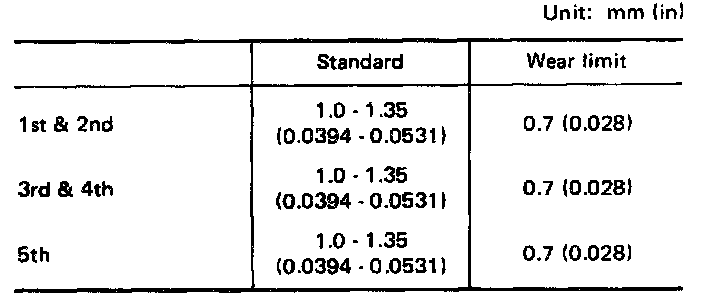

Clearance Between Baulk Ring And Gear:

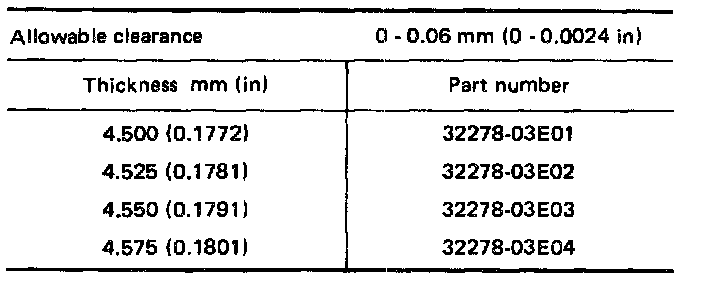

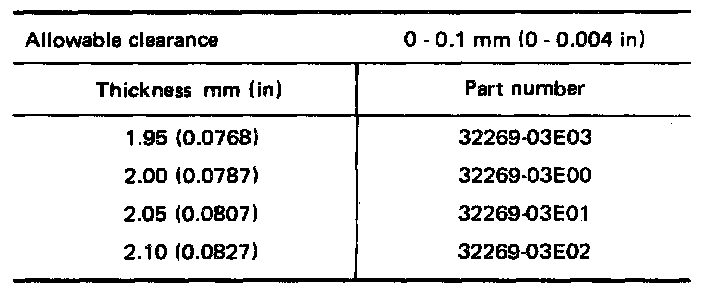

Available Snap Ring - 3rd And 4th Synchronizer Hub (At Input Shaft):

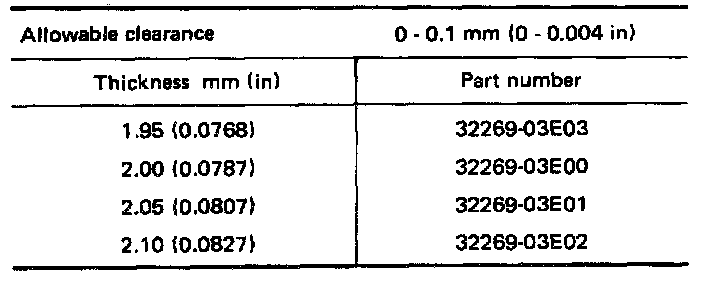

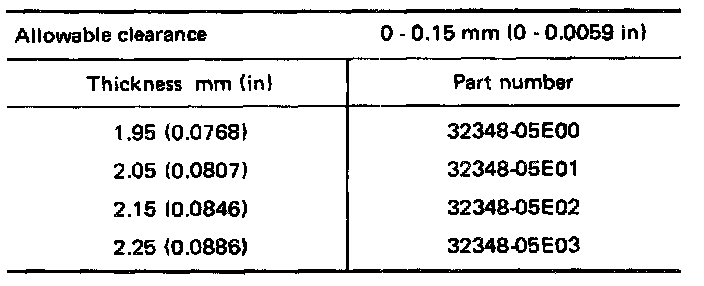

Available Snap Ring - 1st And 2nd Synchronizer Hub:

Available Snap Ring - 5th Main Gear:

Available Washer - Input Shaft Thrust Washer:

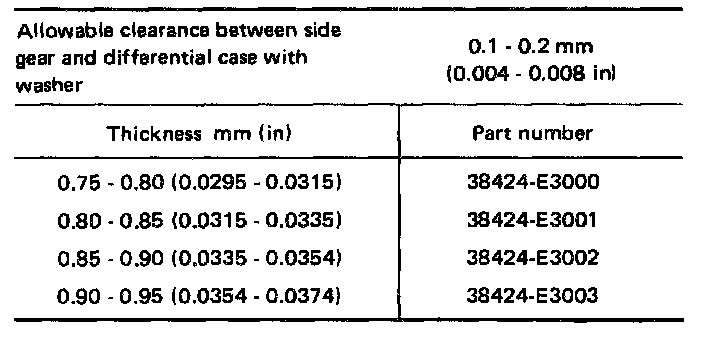

Available Washer - Differencial Side Gear Thrust Washer:

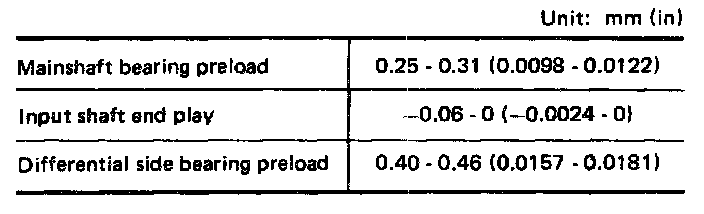

Bearing Preload And End Play:

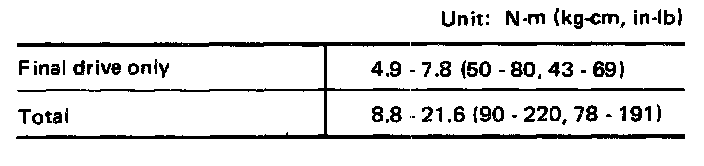

Turning Torque (New Bearing):

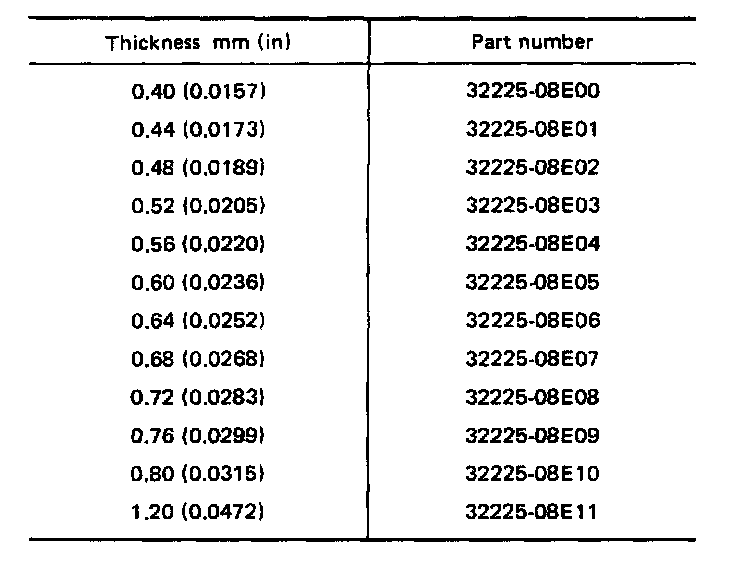

Available Shim - Mainshaft Bearing Adjusting Shim:

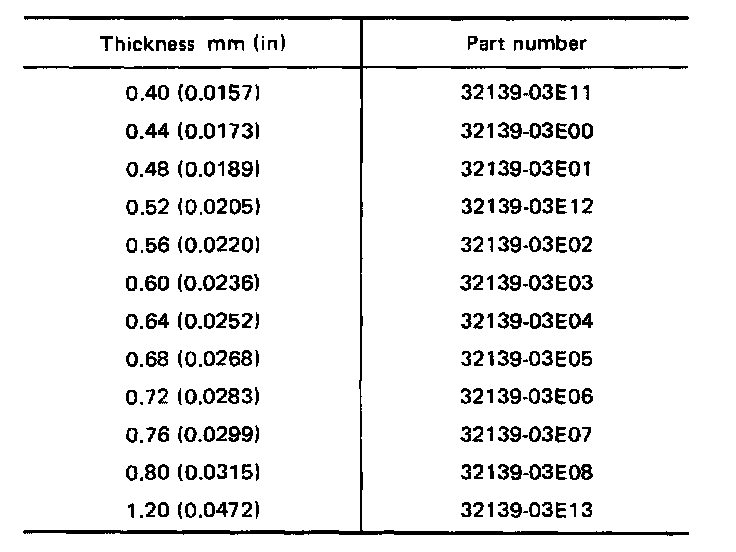

Available Shim - Input Shaft Bearing Adjusting Shim:

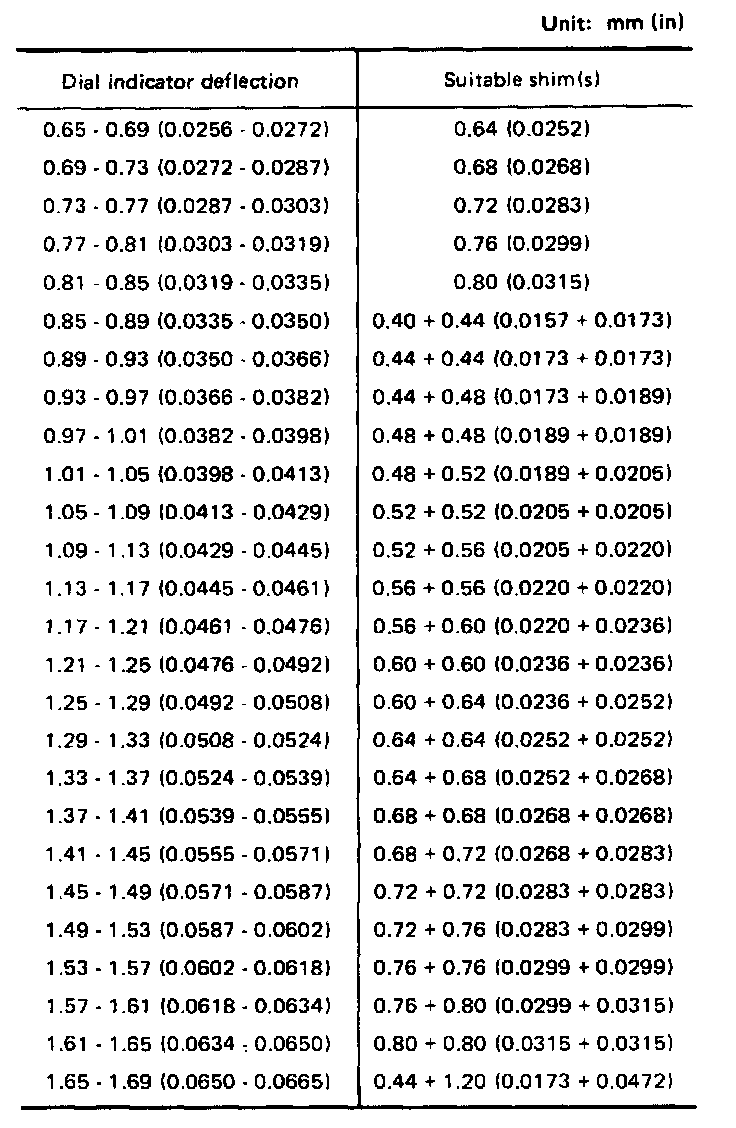

Available Shim - Table For Selecting Input Shaft Bearing Adjusting Shim:

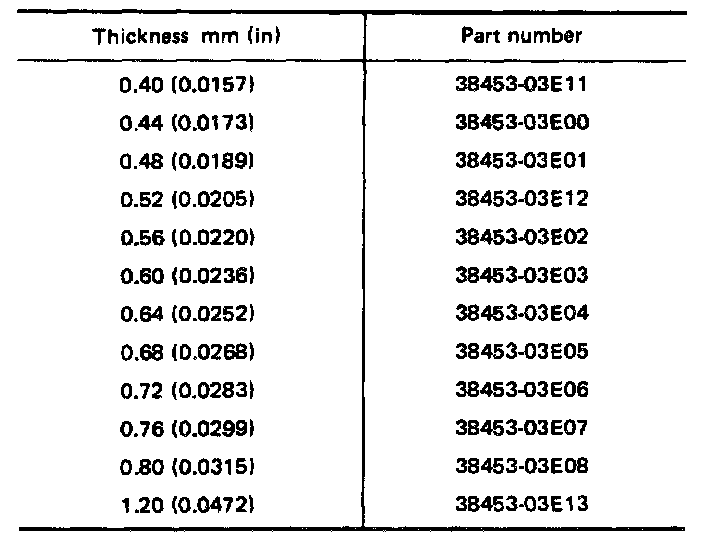

Available Shim - Different Side Bearing Adjusting Shim:

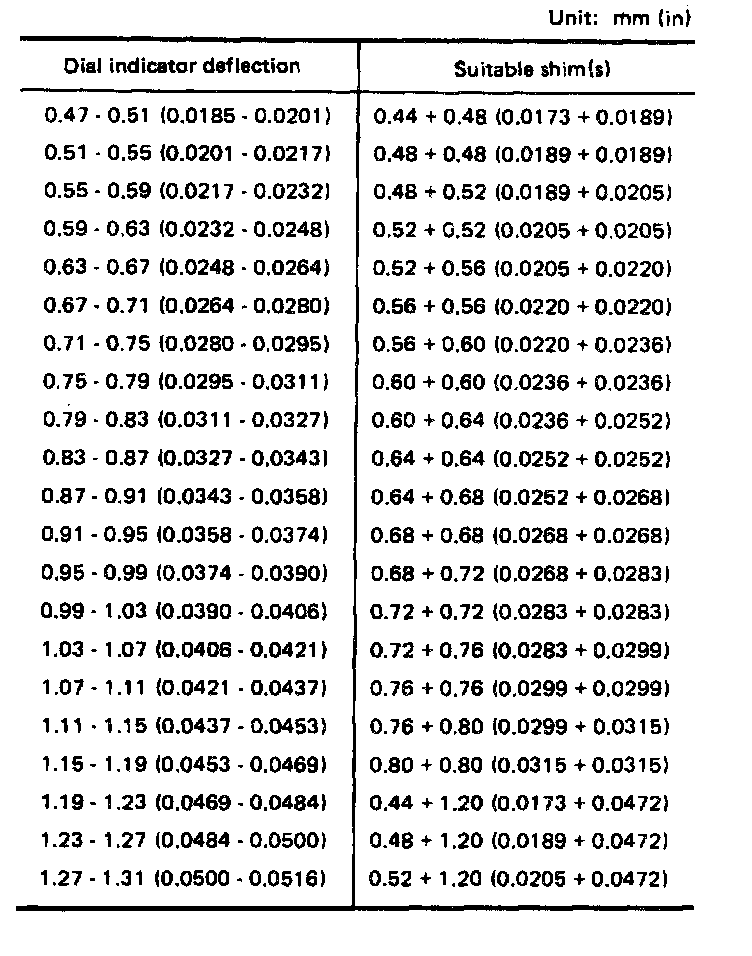

Available Shim - Table For Selecting Different Side Bearing Adjusting Shim(s):
