Home
>>
Nissan-Datsun
>>
1988
>>
Maxima Sedan V6-2960cc 3.0L SOHC MFI (VG30E)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Restraints and Safety Systems
>>
Seat Belt Control Module
>>
Locations
>>

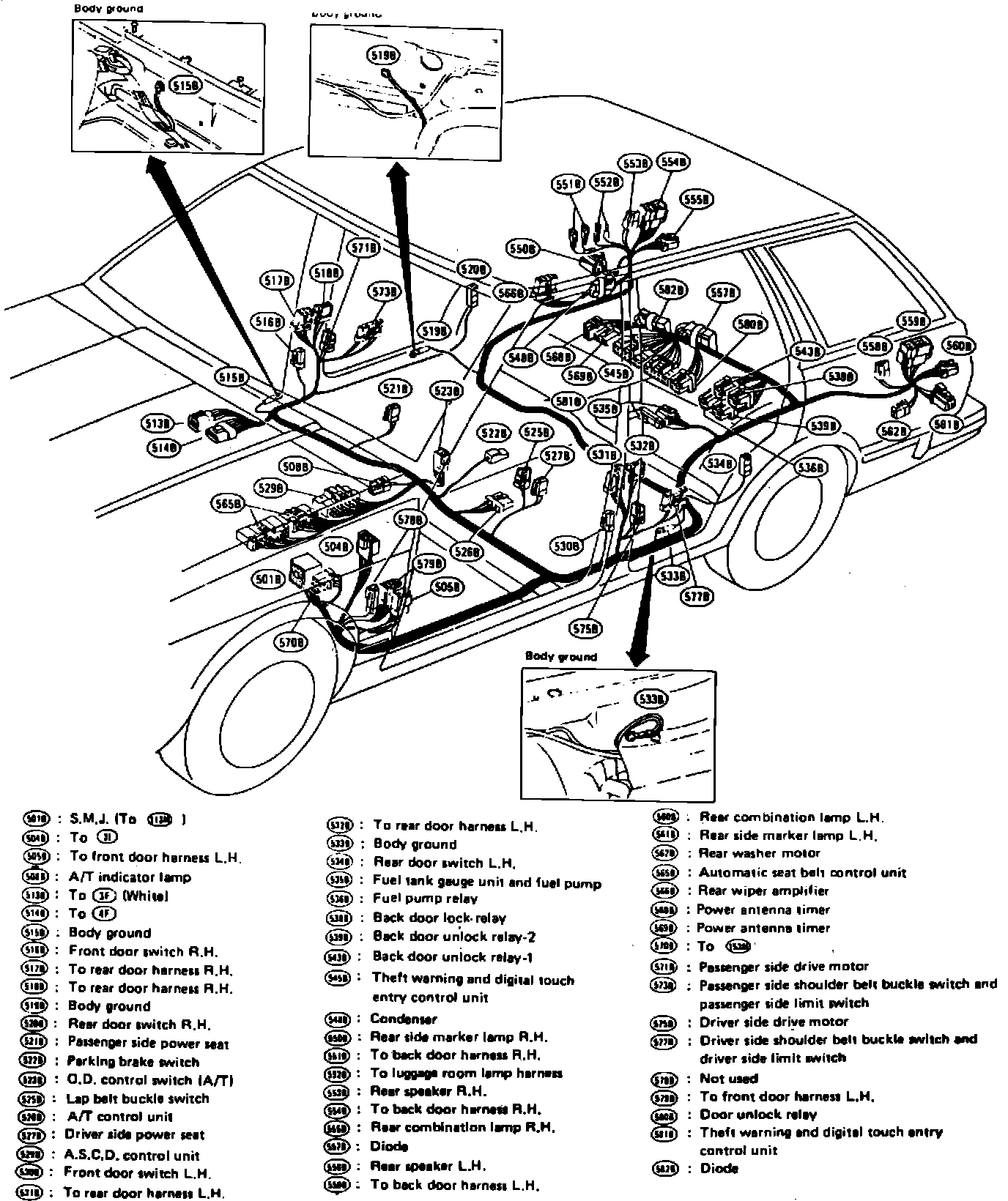

Automatic Seat Belt Control Unit (Wagon)
Automatic Seat Belt Control Unit (Wagon)
Body Wiring Harness.:
565B, Under Center Of I/P
Applicable to: 1988 Maxima Wagon
