Testing Mixture Ratio Feedback System

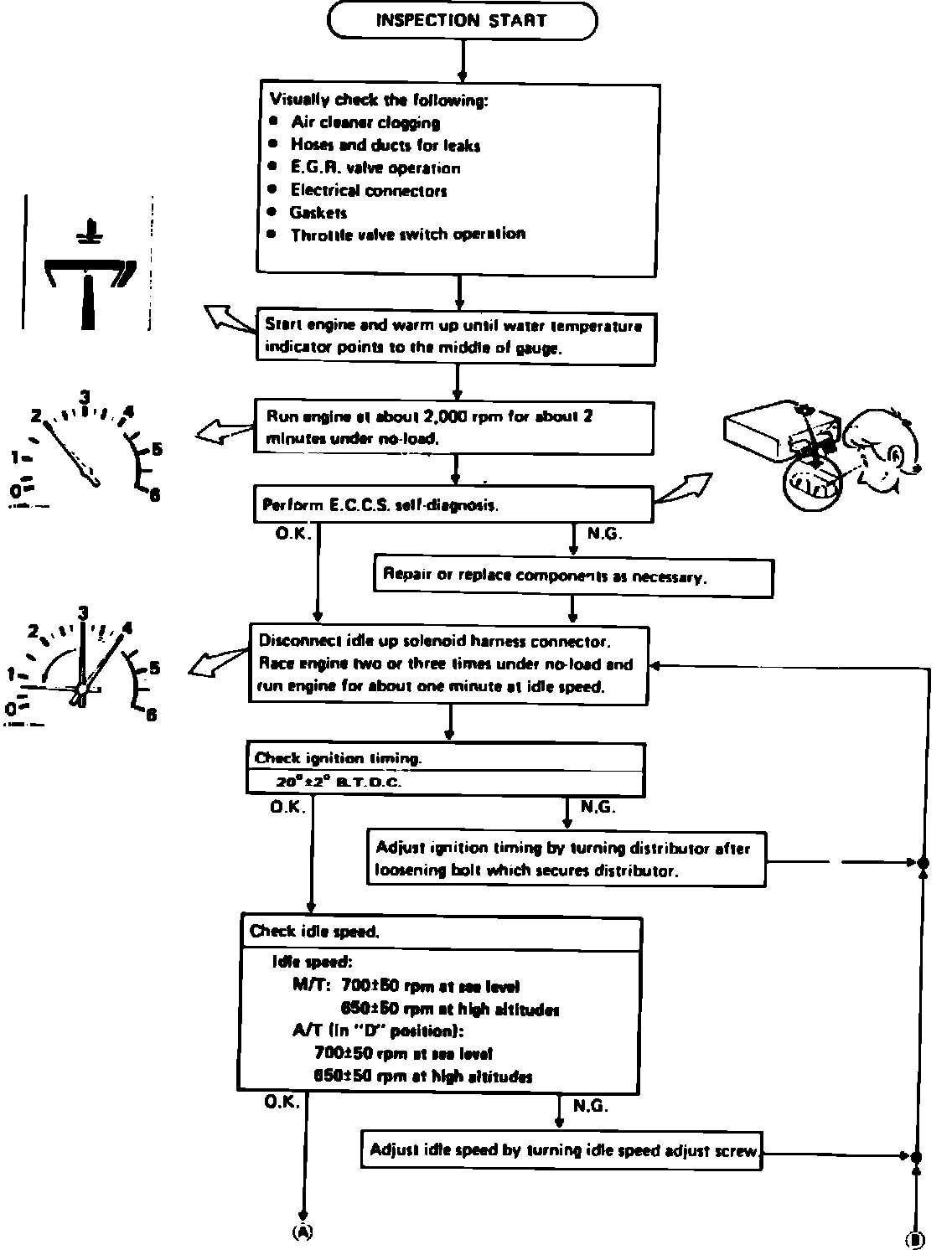

Fig. 18a Testing mixture ratio feedback system.:

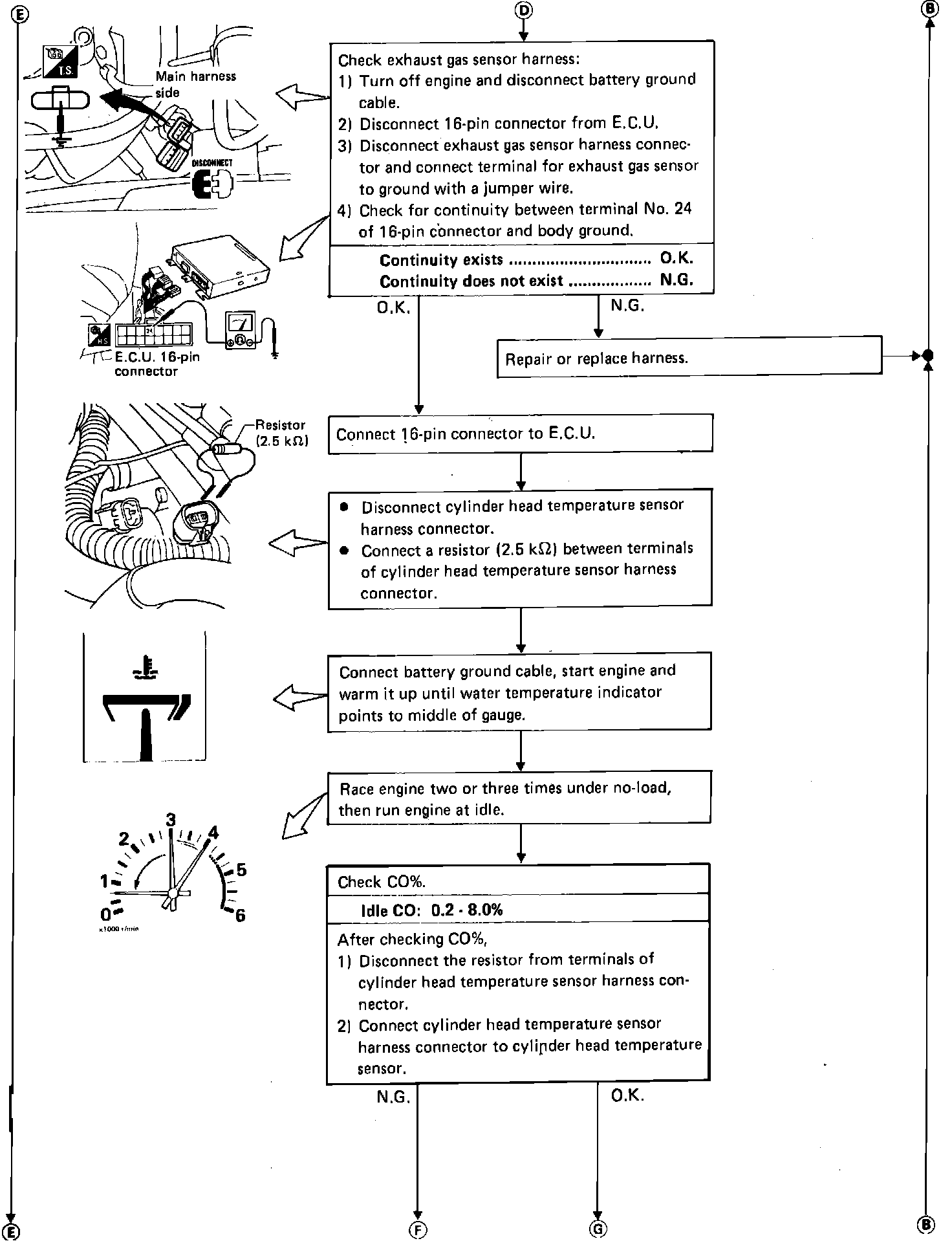

Fig. 18b Testing mixture ratio feedback system.:

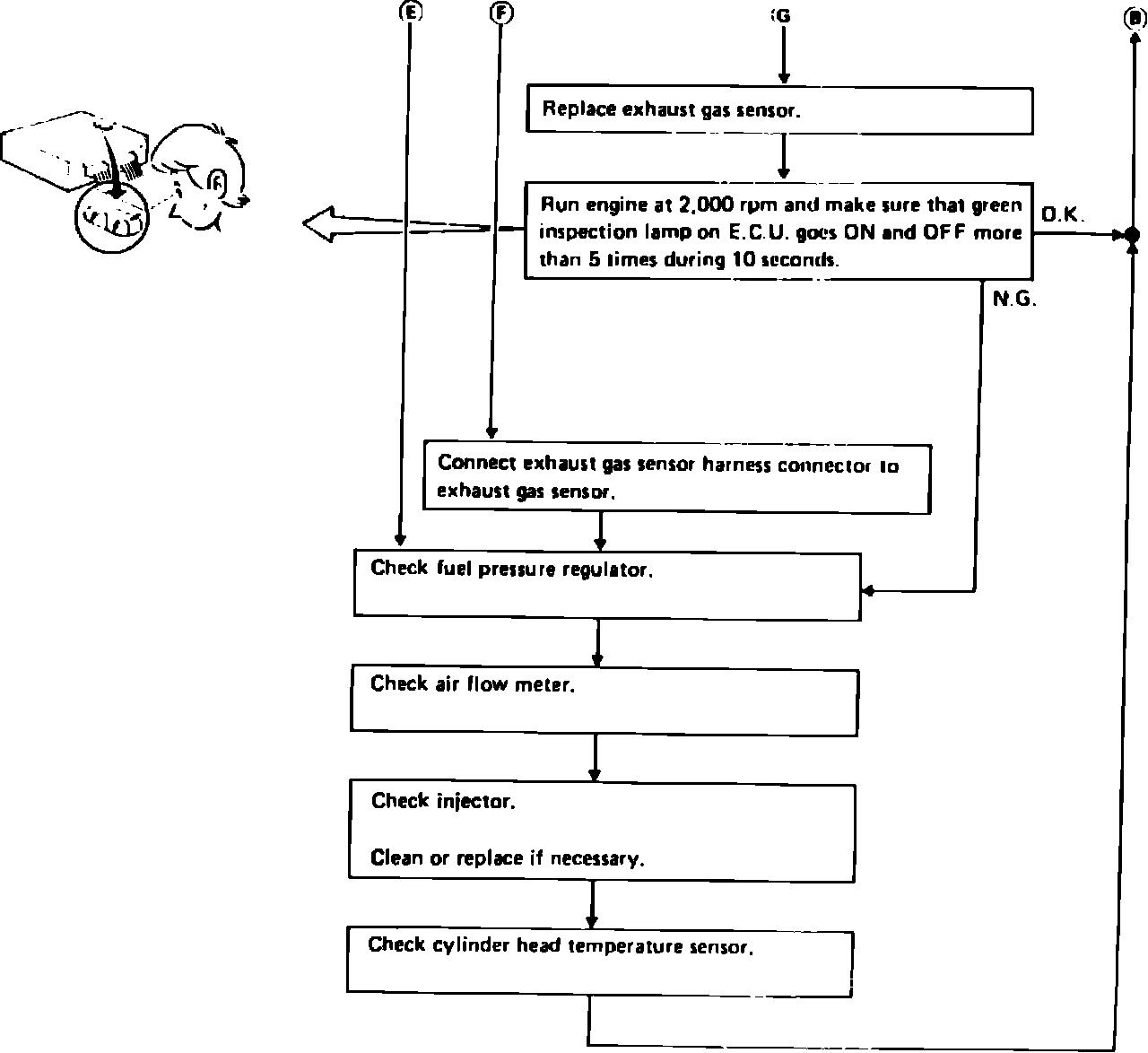

Fig. 18c Testing mixture ratio feedback system.:

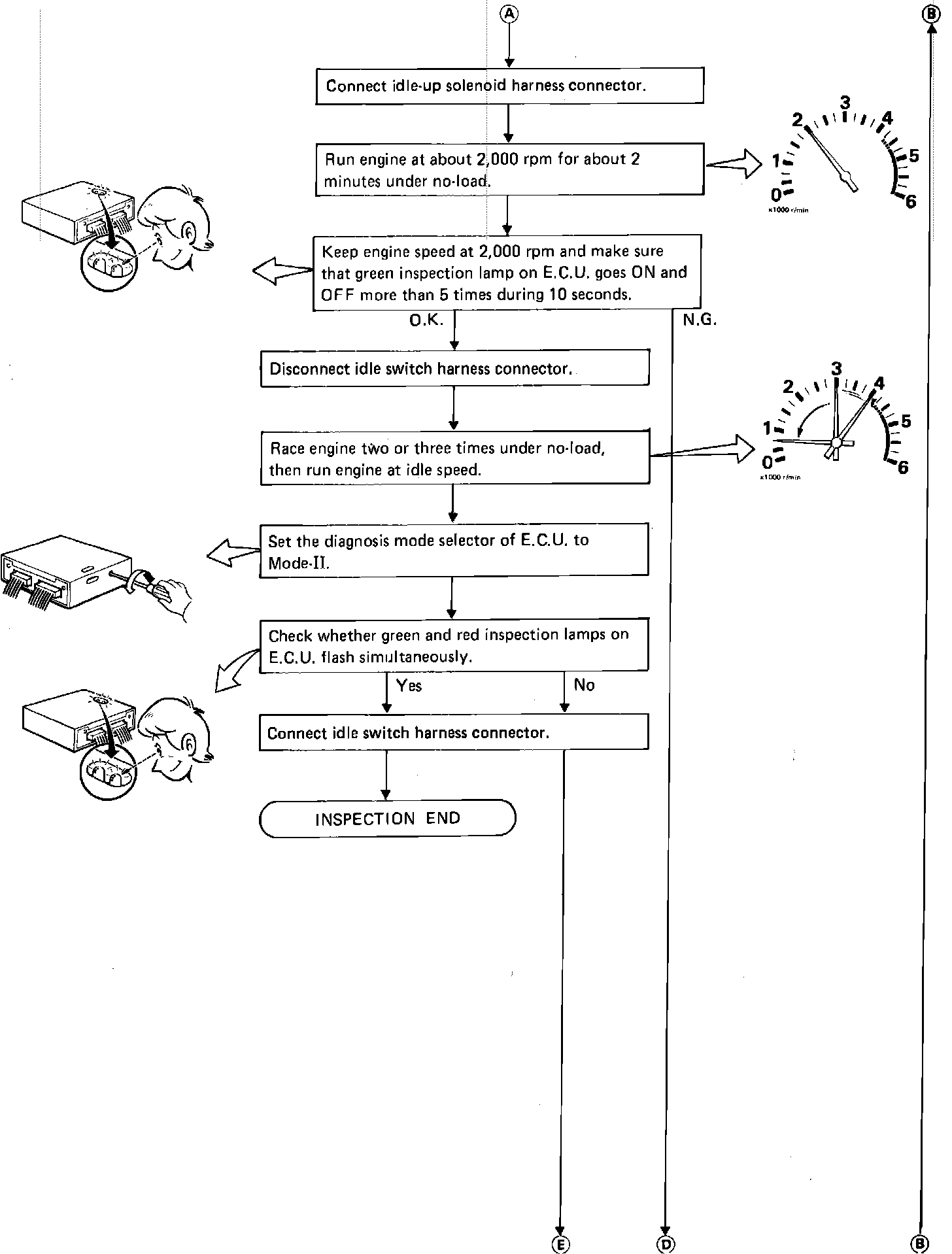

Fig. 18d Testing mixture ratio feedback system.:
