Pressure Regulator Control Solenoid Valve
Pressure Regulator Control Solenoid Valve

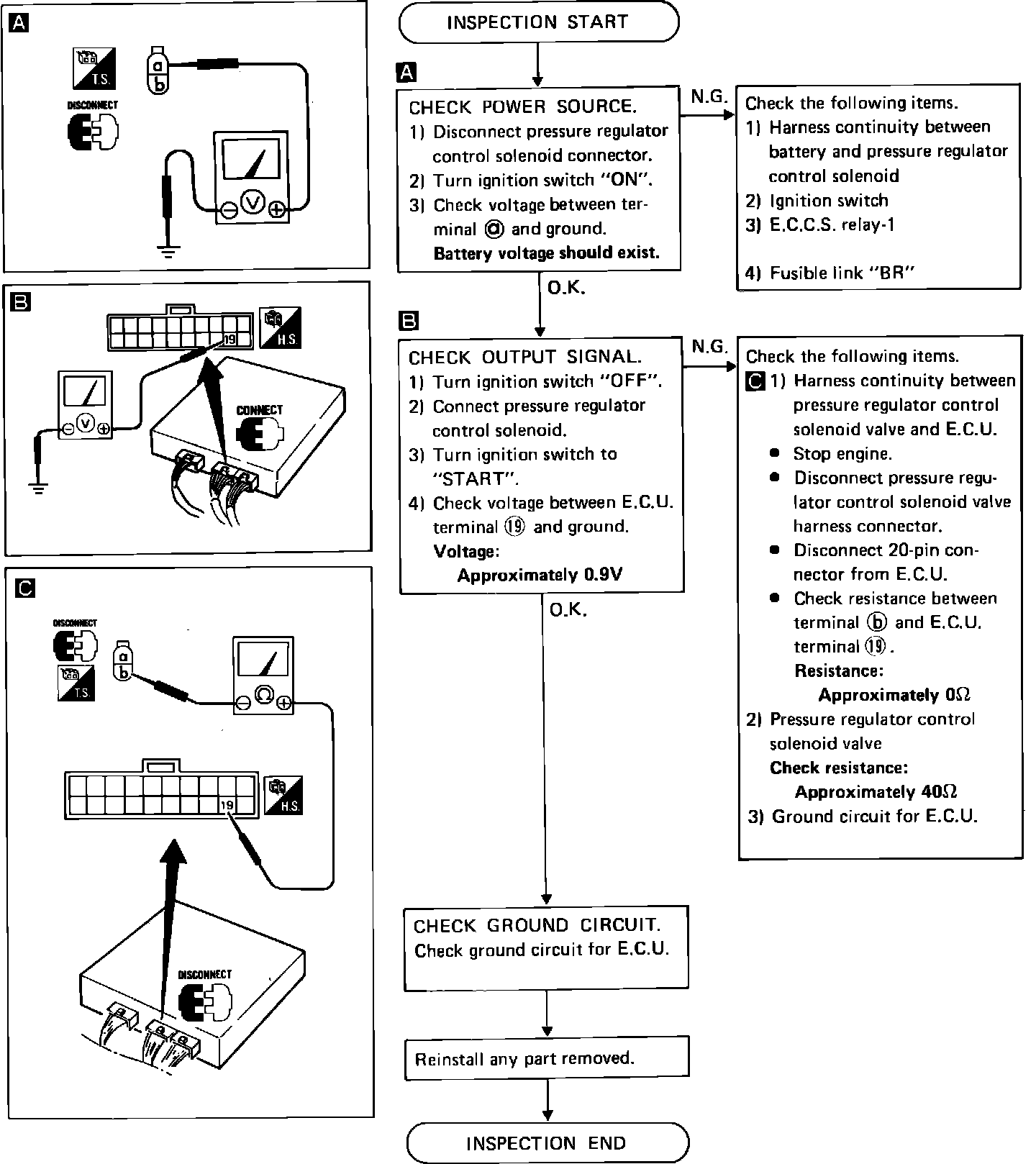

Fig. 319 Pressure regulator control solenoid circuit diagnosis.:
