Heater Core Temperature Sensor / Switch: Testing and Inspection

Water Temperature Sensor Testing:

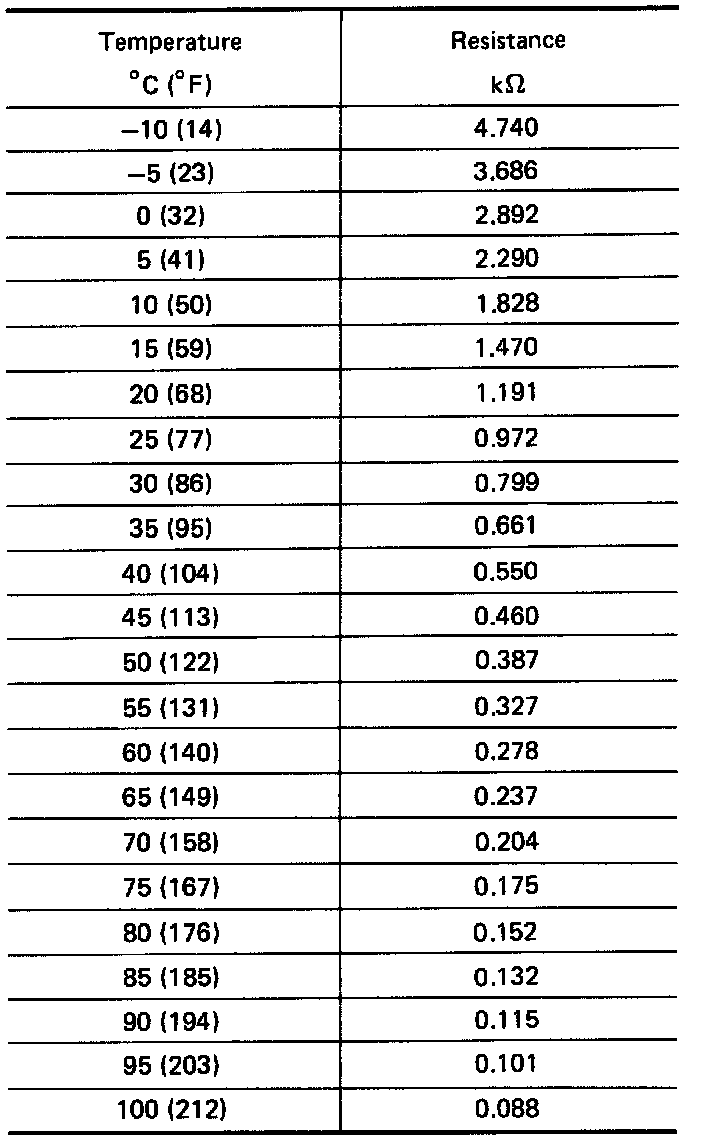

Water Temperature Sensor Testing Chart:

WATER TEMPERATURE SENSOR
1. After disconnecting auto air conditioner harness connector, ensure that there is resistance between terminals (651 and 938 on vehicle harness side, using the table above.

Ignition switch: OFF
