SUB Amplifier (W/Auto. A/C)

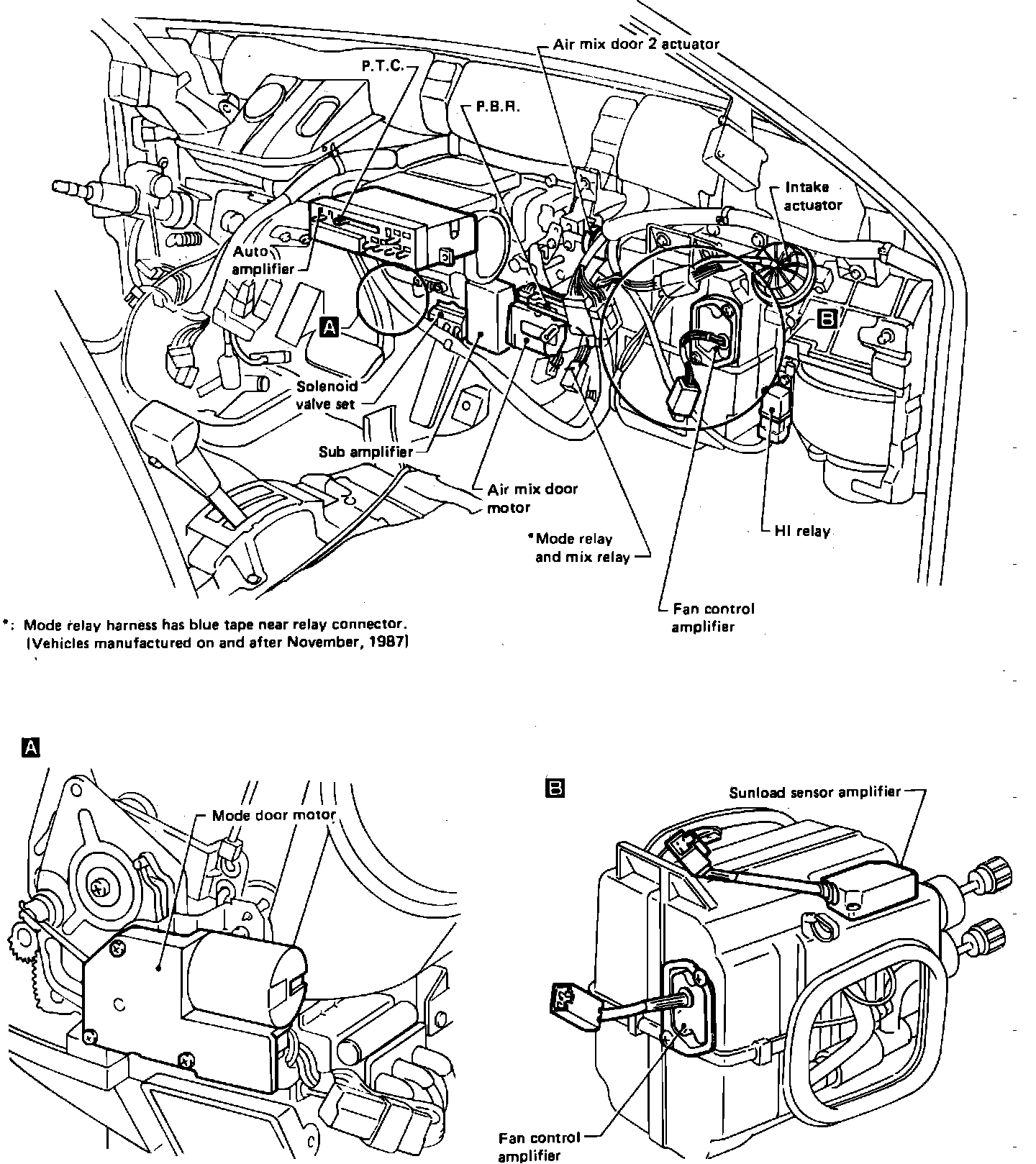

A/C System Component Location:

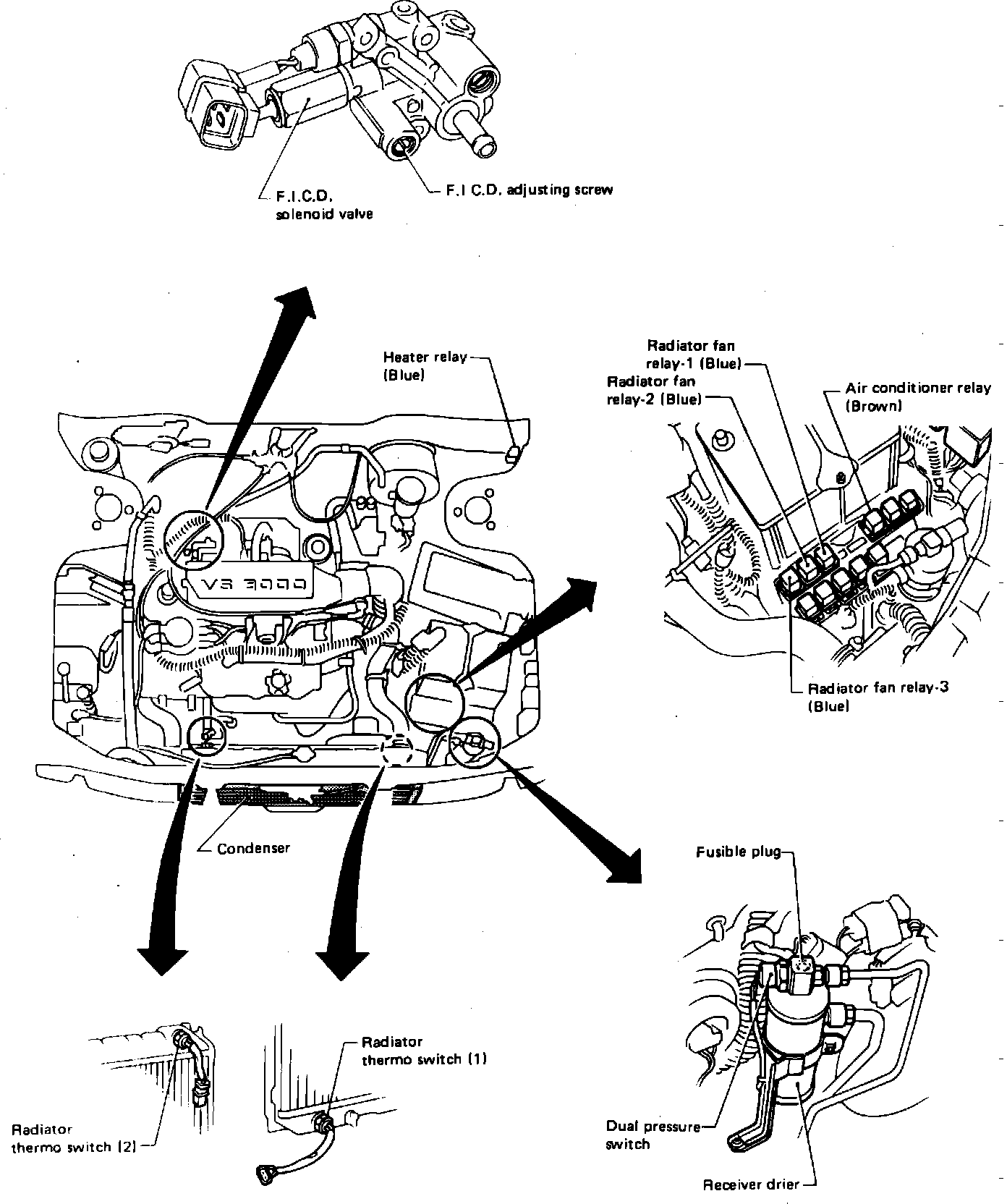

A/C System Component Location:




The Potentio Balance Resistor (PBR) is located behind center of instrument panel.
