Mechanical Specifications

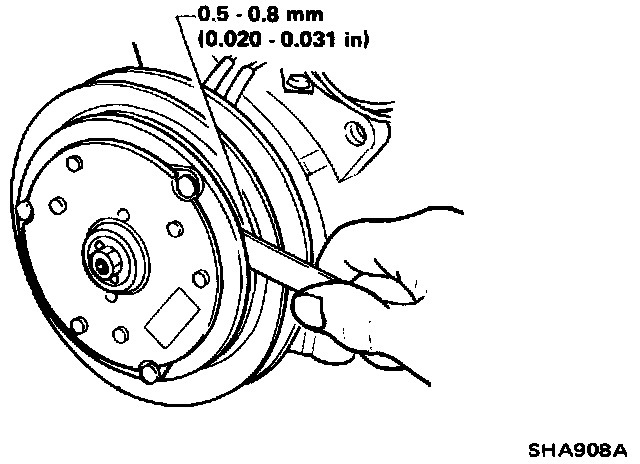

Compressor Clutch - Clearance:




Clutch Air Gap mm (inches)
Clearance 0.5-0.8 (0.020-0.031)
