Installation

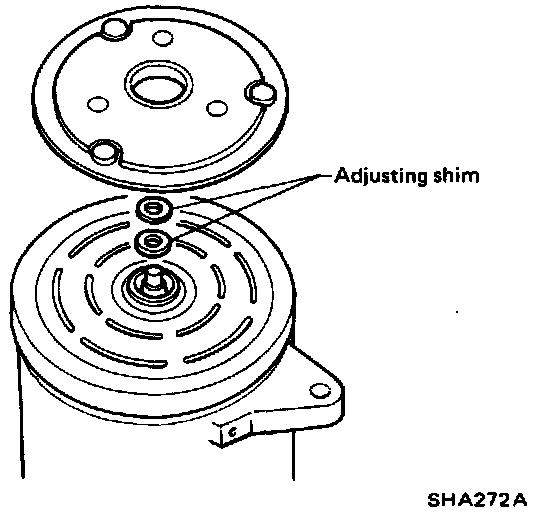

Compressor Clutch - Assembly:

Compressor Clutch - Clearance:

^ When assembling clutch hub, adjust hub-to-pulley clearance with shims.

Break-In Operation
When replacing compressor clutch assembly, do not forget break-in operation, accomplished by engaging and disengaging the clutch about thirty times.

Break-in operation raises the level of transmitted torque.
