Tightening Torque

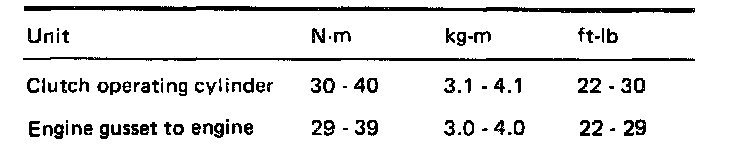

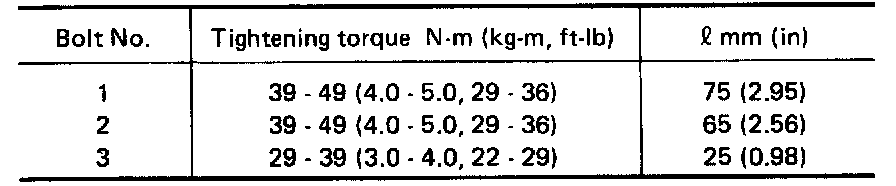

Transmission Installation:

Gear Assembly:

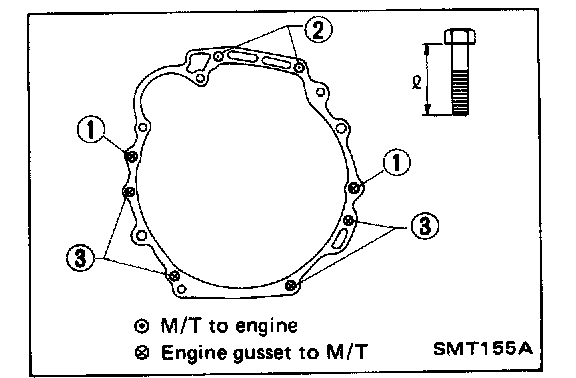

CA18ET And CA20E Engine Models:

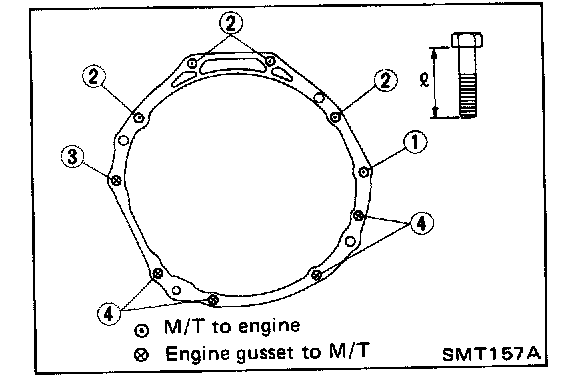

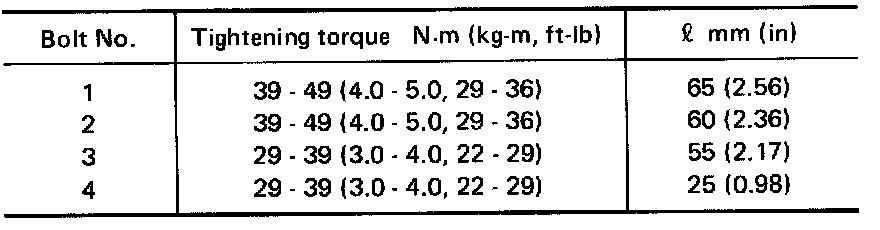

VG30E Engine Model:

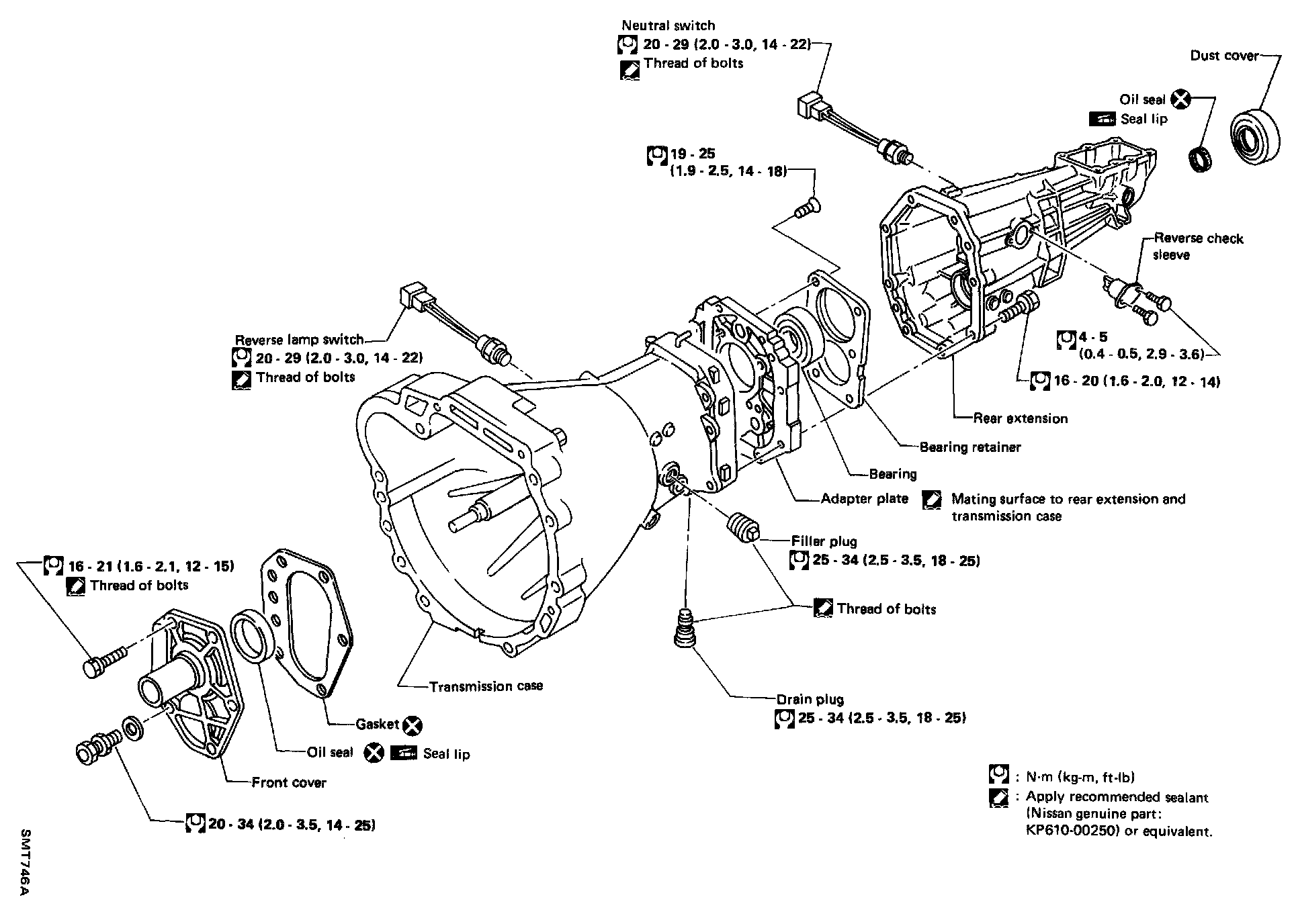

Case Components:

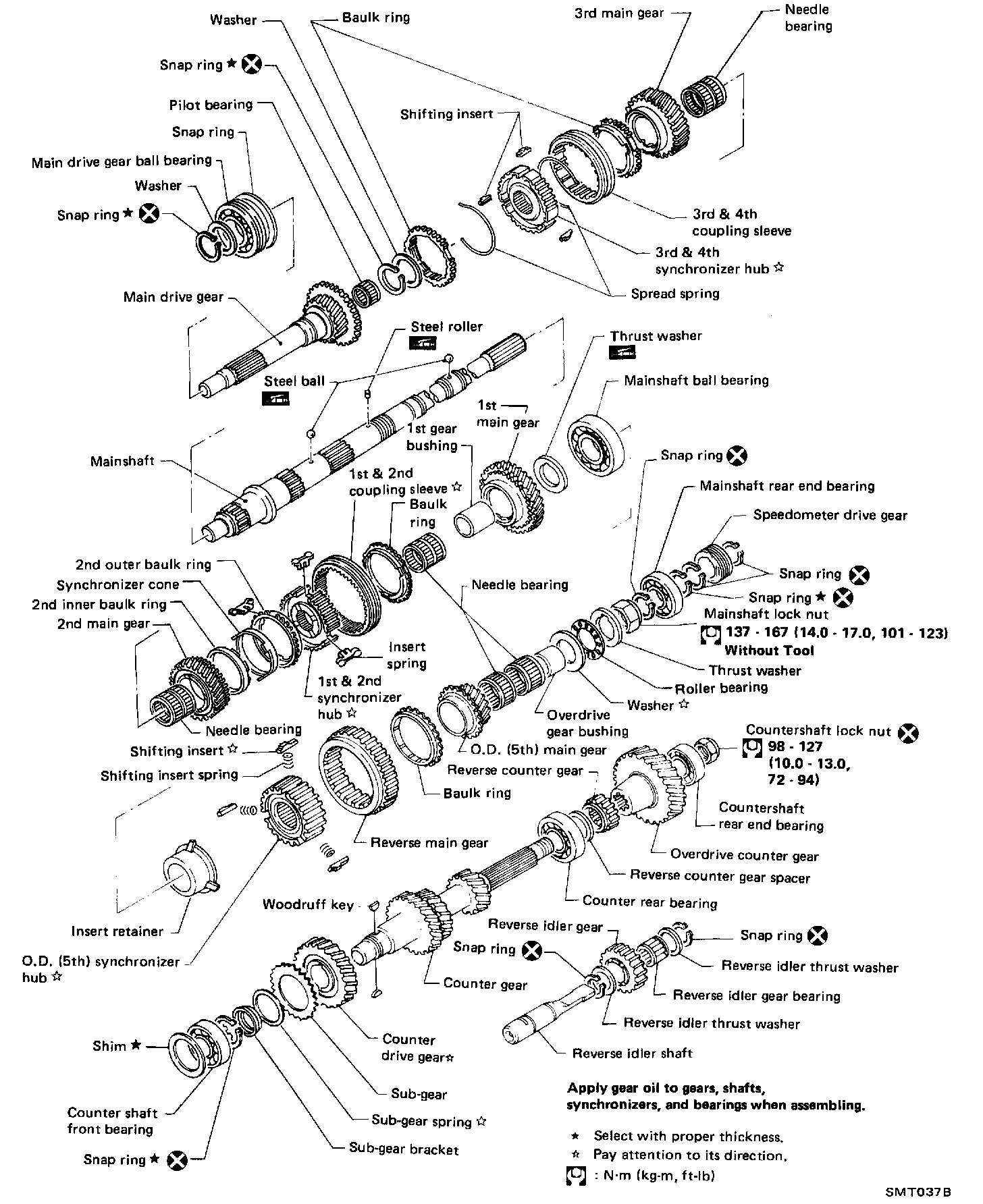

Gear Components:

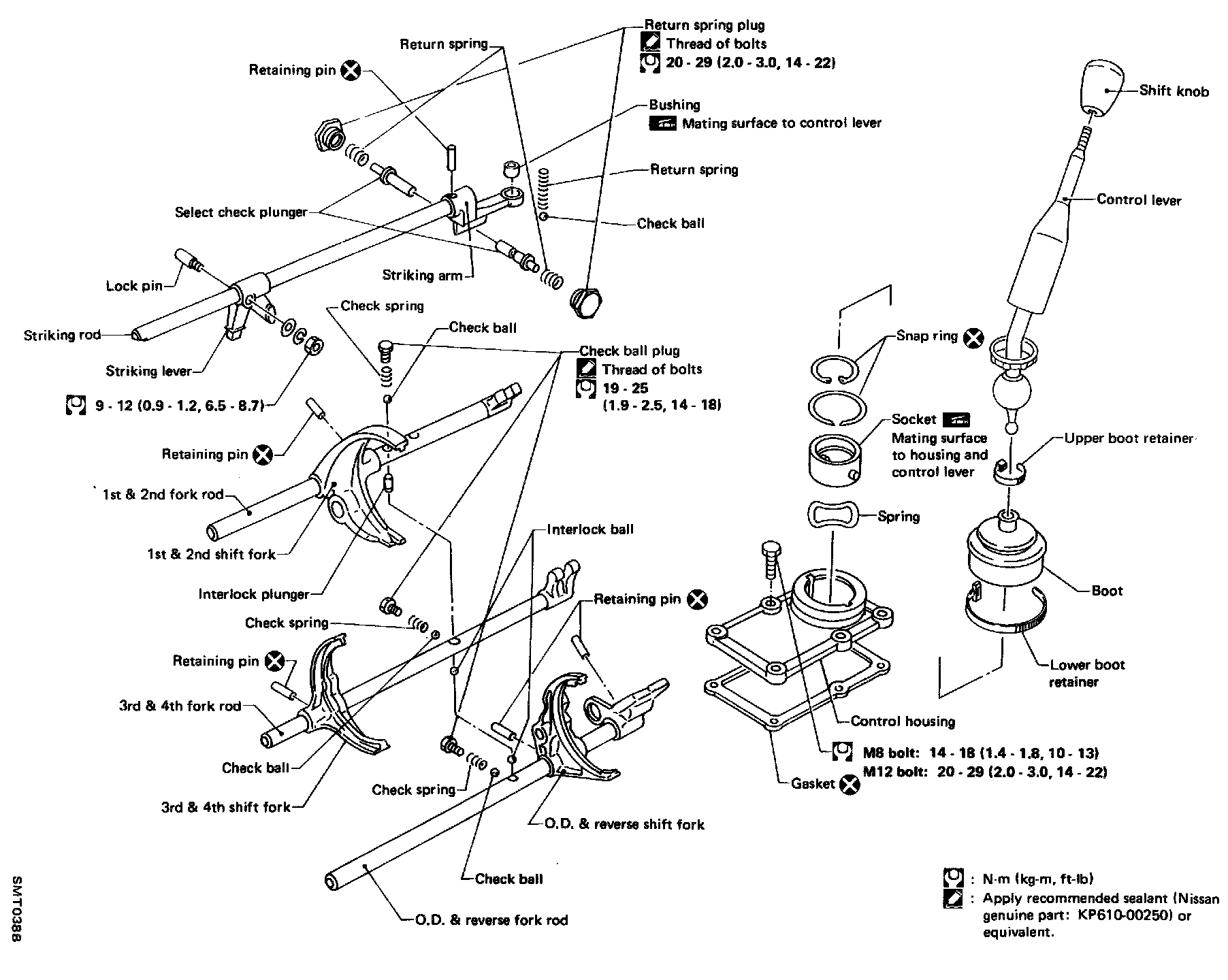

Shift Control Components (Without Mainshaft Braking Mechanism):

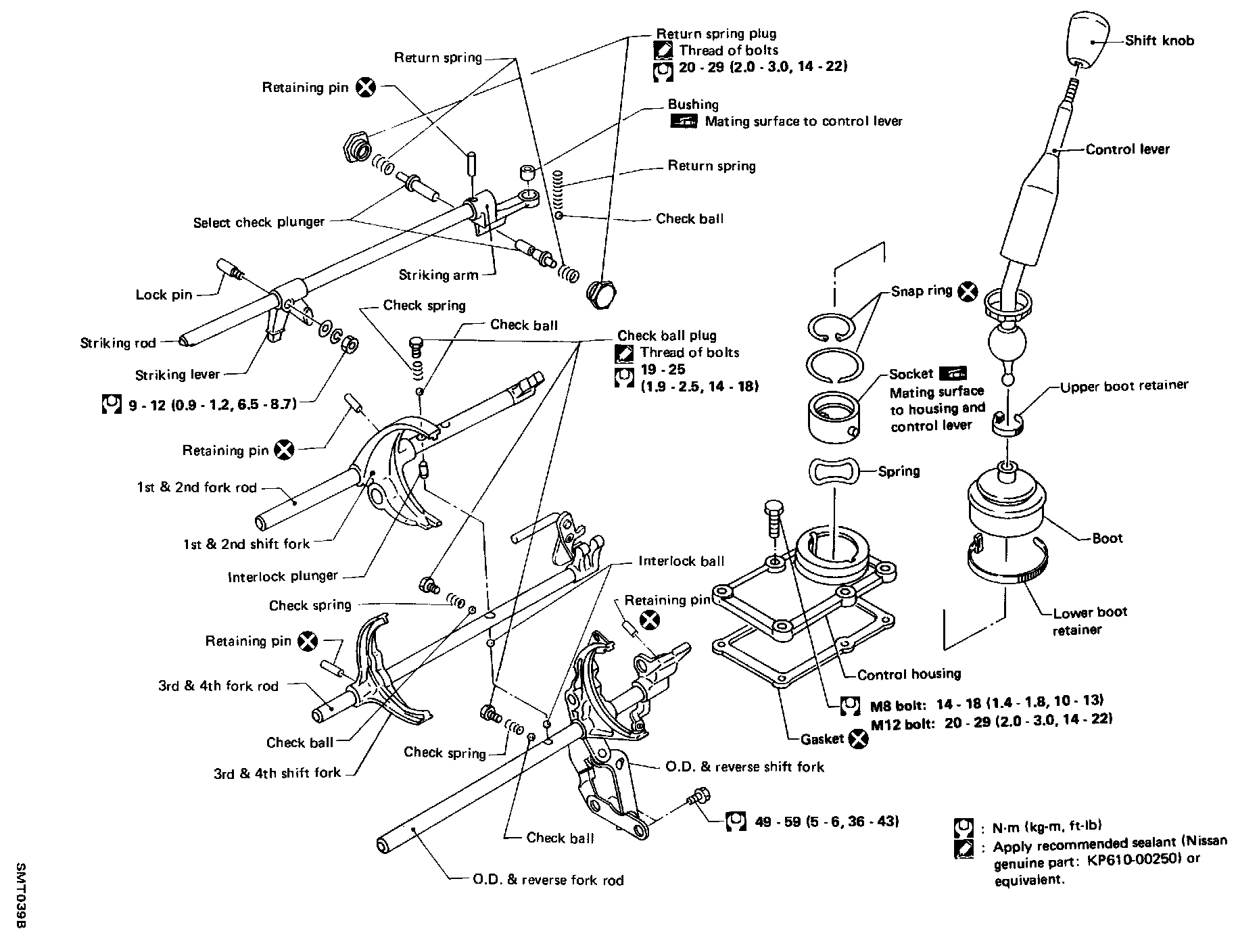

Shift Control Components (With Mainshaft Braking Mechanism):
