Nissan-Datsun
>>
1988
>>
200SX L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Locations
>>
Fuse Panel & Power Distribution
Fuse Panel & Power Distribution

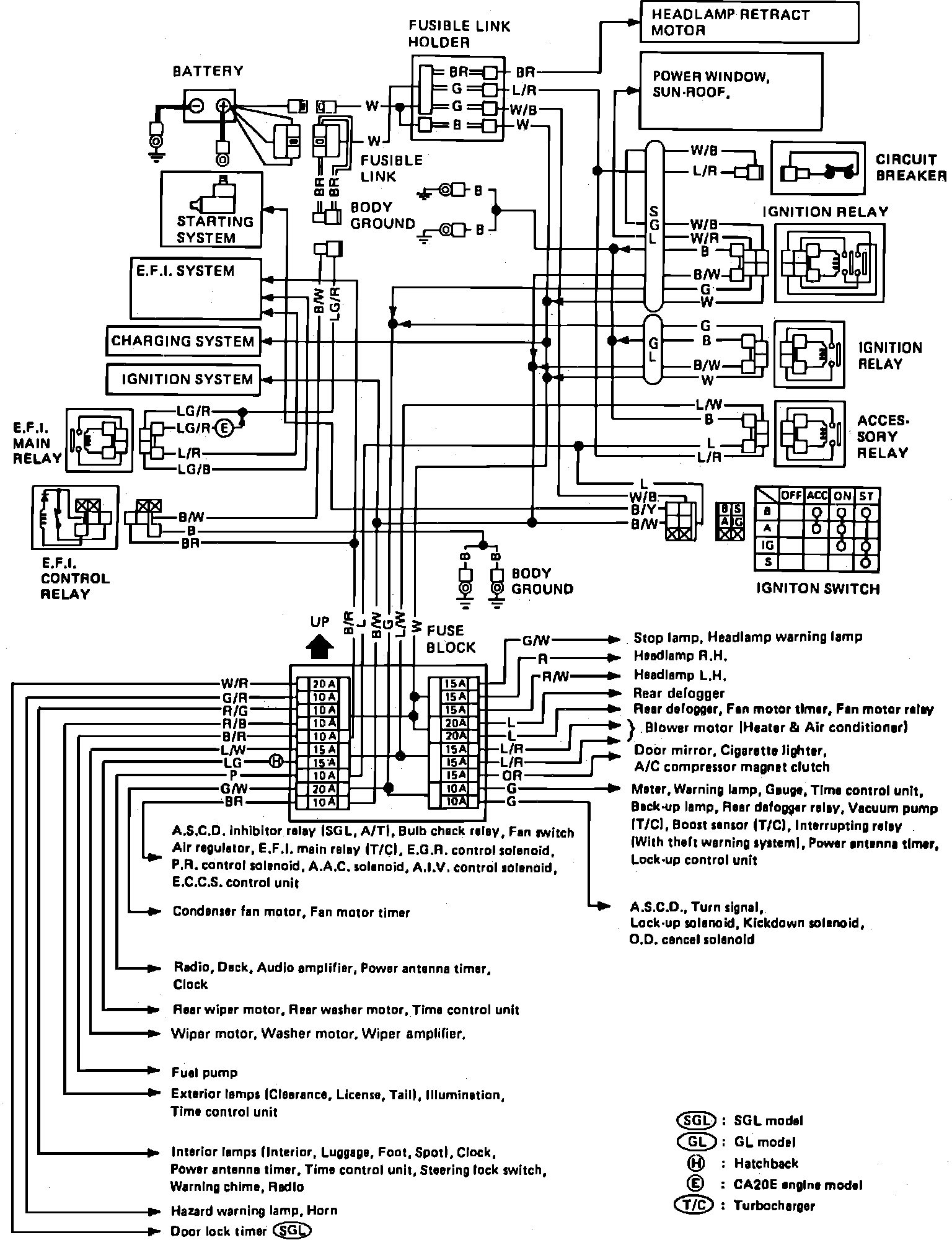

Fig. 1 Fuse Panel, Circuit Breakers & Relays:
