Nissan-Datsun
>>
1988
>>
200SX L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
EGR Control
EGR Control

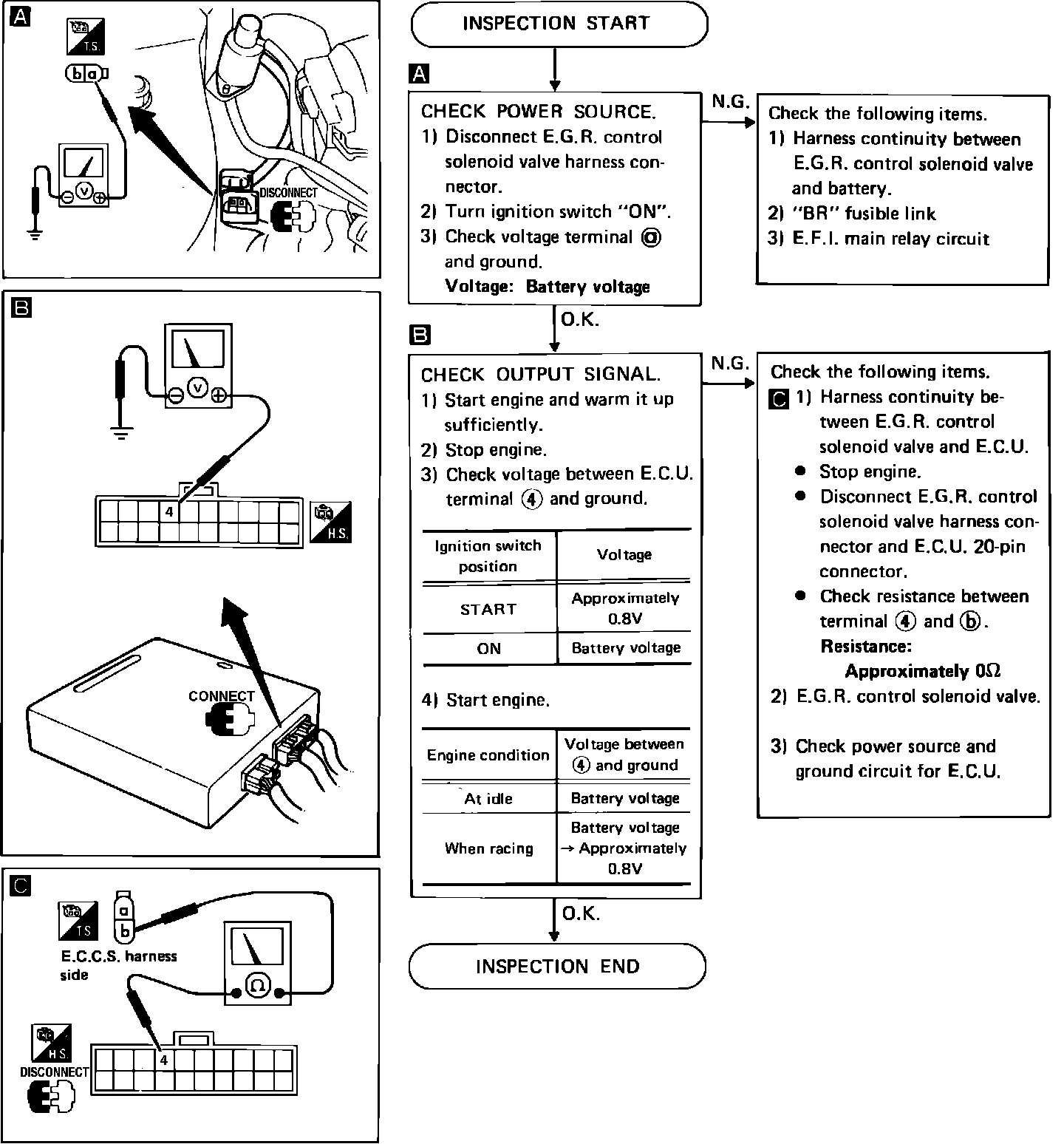

Fig. 378 EGR control circuit diagnosis.:
