Air Induction Valve Control
Air Induction Valve Control

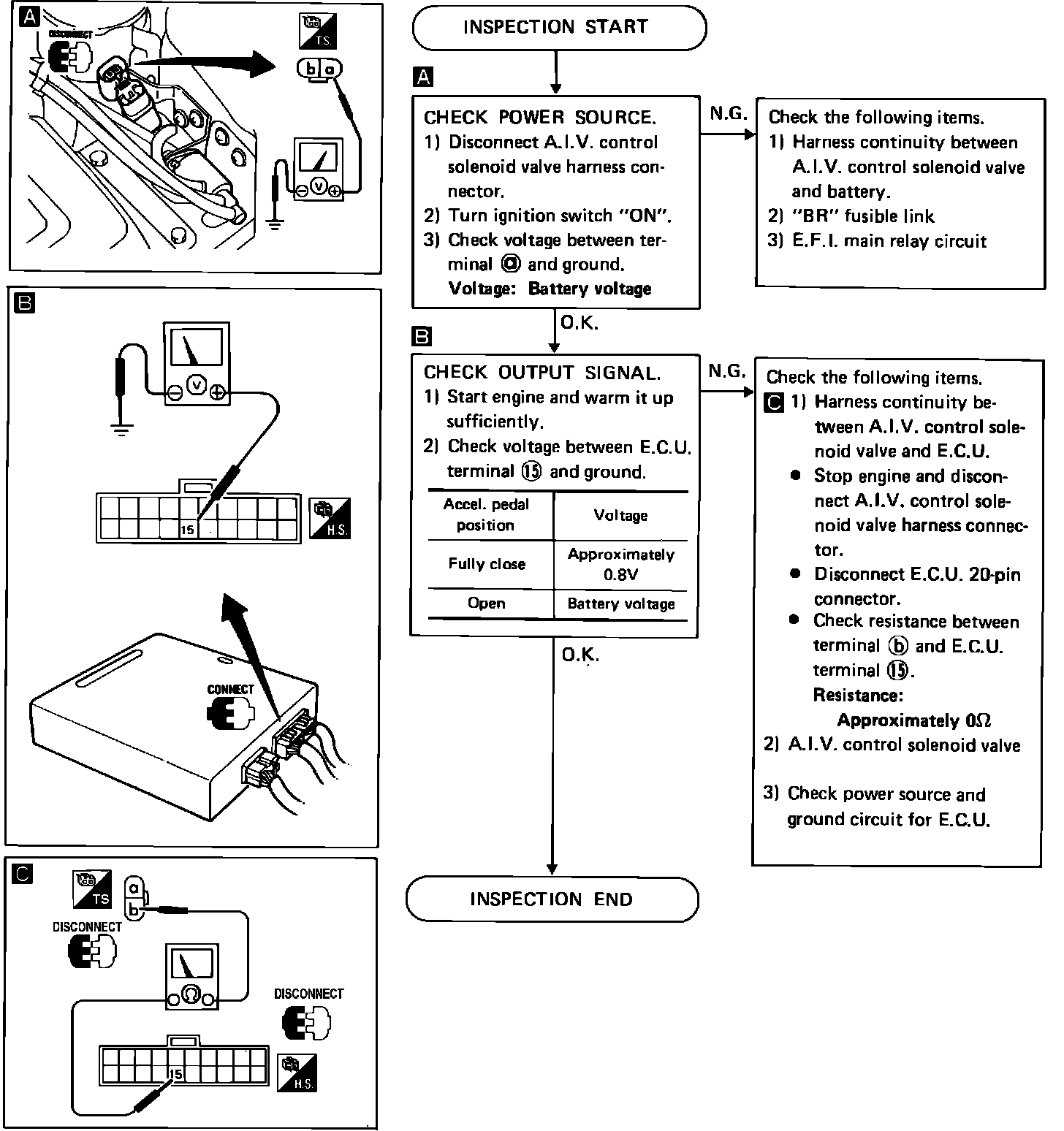

Fig. 376 Air induction valve control circuit diagnosis.:
