Heater System Exploded View (Front)
Heater System Exploded View (Front)

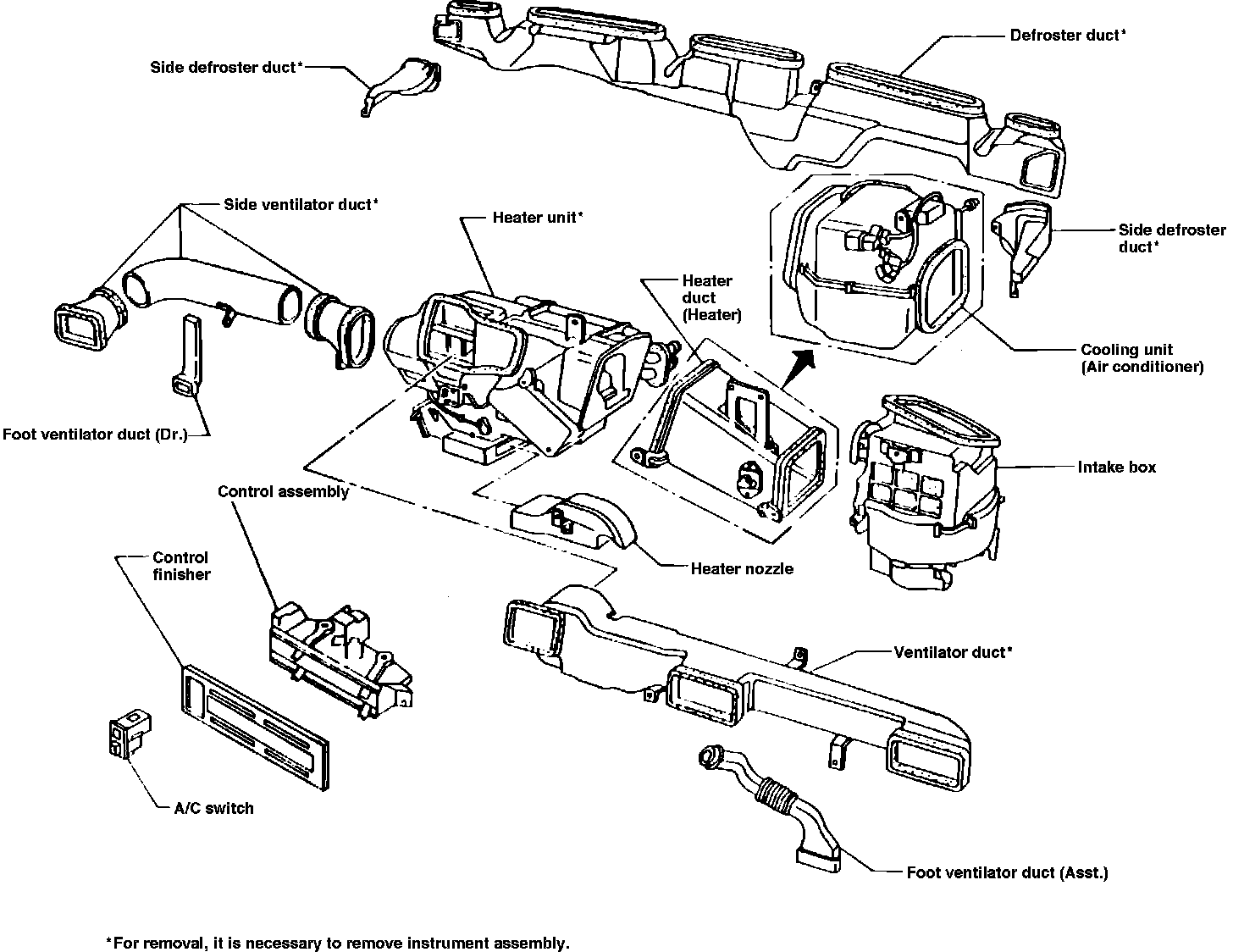

Fig. 19 Exploded view of heater system. 1988 200SX:
