200SX L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Lock-Up Control Valve and O.D Cancel Valve
Lock-Up Control Valve and O.D Cancel Valve

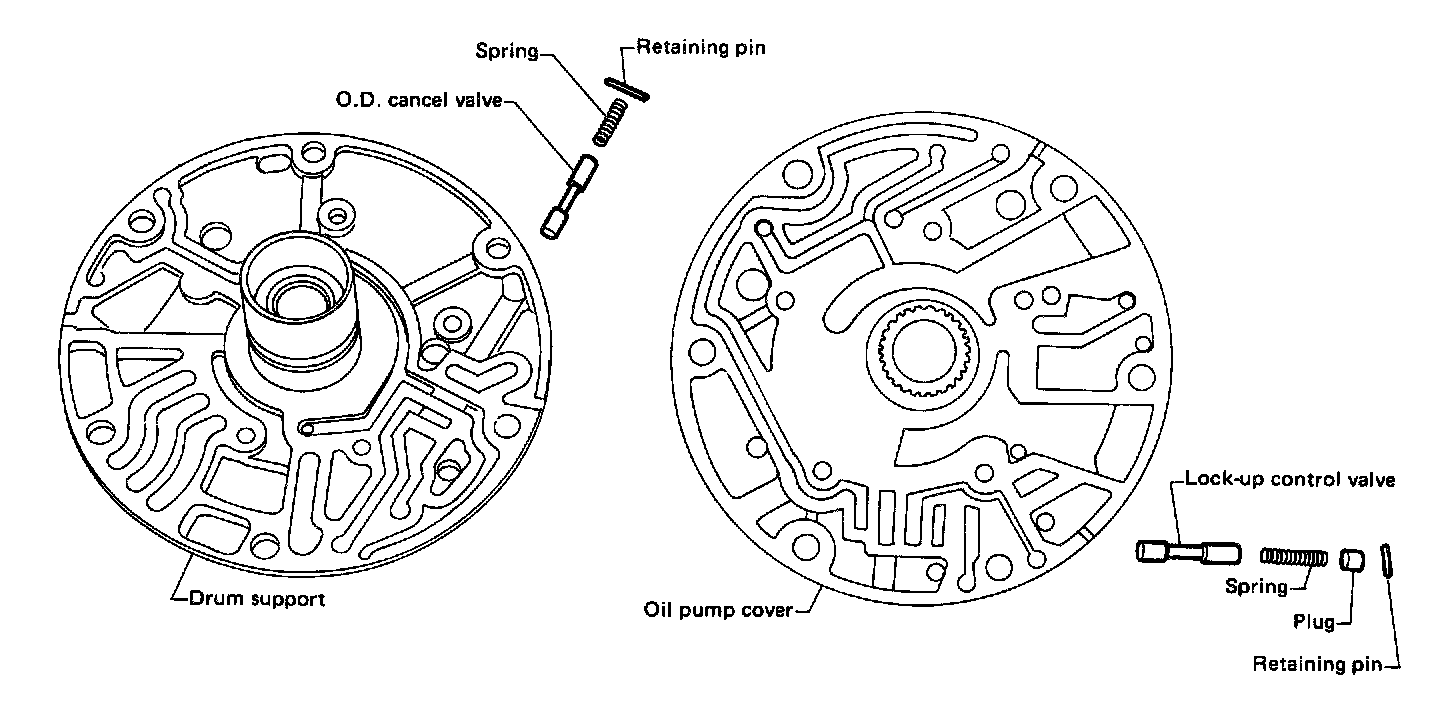

Lock-up Control Valve And O.D Cancel Valve:
