Manual Transmission

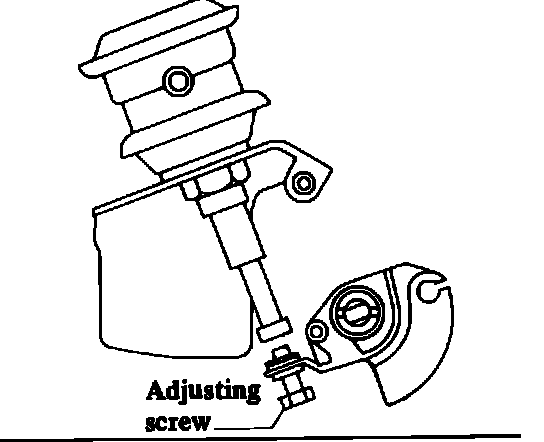

Fig. 62 A/C Idle-Up Actuator For Manual Trans.:

1. Warm up engine to operating temperature.
2. Turn on air conditioner and check engine speed. The specified speed is 800 RPM.
3. If out of specification, adjust by turning adjustment screw, Fig. 62.
