Control Assembly: Testing and Inspection

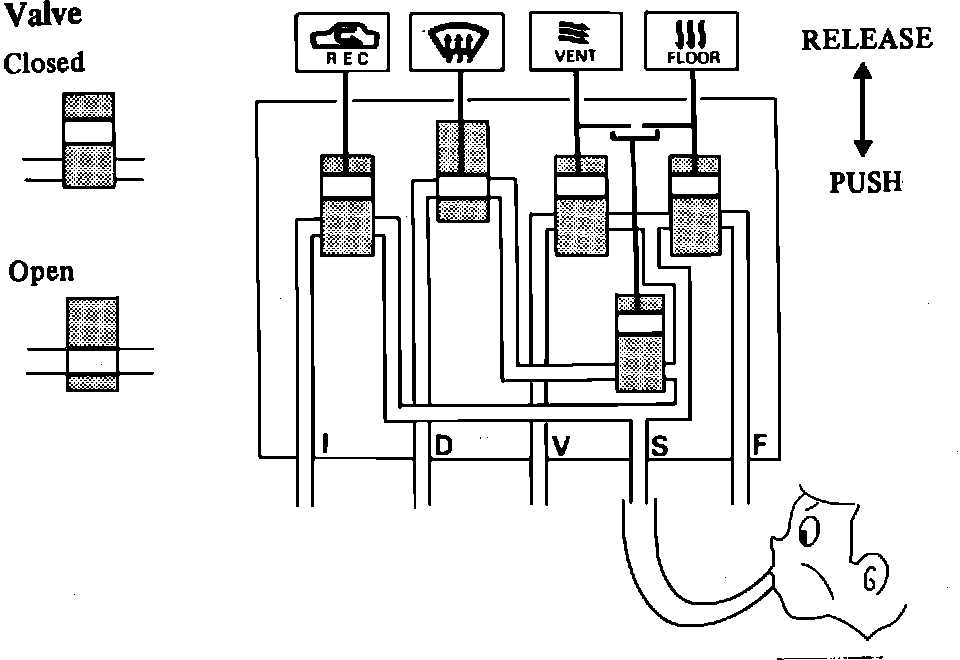

Fig. 66 Testing vacuum switch.:

1. Disconnect vacuum harness to switch and connect test hose to ``S'' port on switch, Fig. 66.
2. Blow through test hose and check that valves open as shown when buttons are depressed.
