Retractable Headlamp - Production Modifications: Overview

TS85-032

March 20, 1985

Body Electrical

RETRACTABLE HEADLAMP MODIFICATIONS, PULSAR NX

APPLIED MODELS:

Pulsar NX

SERVICE INFORMATION

This bulletin highlights modifications made to the Pulsar NX retractable headlamp system since the start of production. Refer to this bulletin when servicing the headlamp motor connectors and linkages.

APPLIED PRODUCTION DATES:

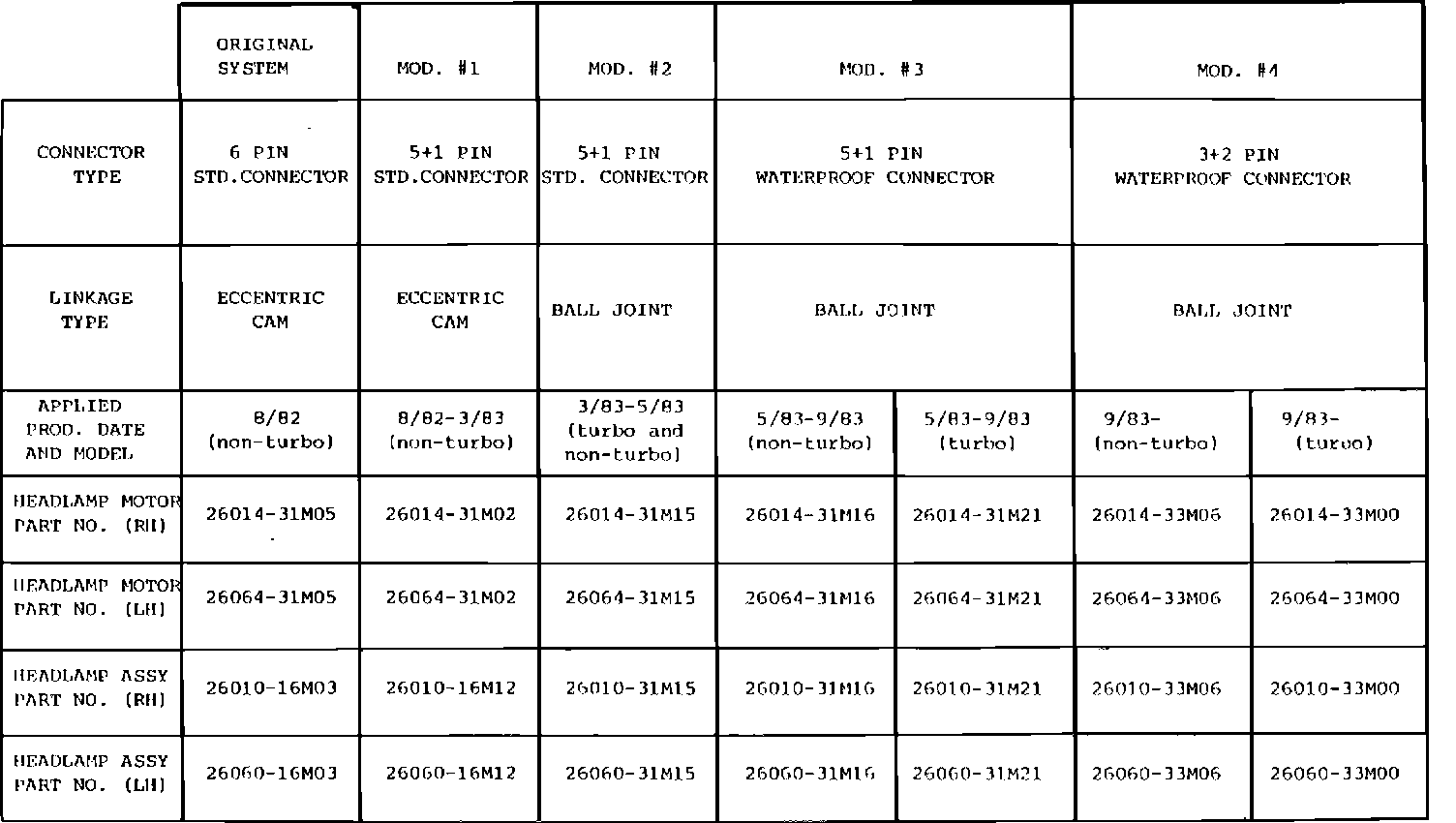

MODIFICATION DATE

Original - 6 pin standard connector August 1982

1) 5+1 pin standard connector August 1982 and eccentric cam motor linkage

2) 5+1 pin standard connector March 1983 and ball joint motor linkage

3) 5+1 pin waterproof connector May 1983 and ball joint motor linkage

4) 3+2 pin waterproof connector September 1983 and ball joint motor linkage. Modified combination switch and electrical circuits



PARTS INFORMATION

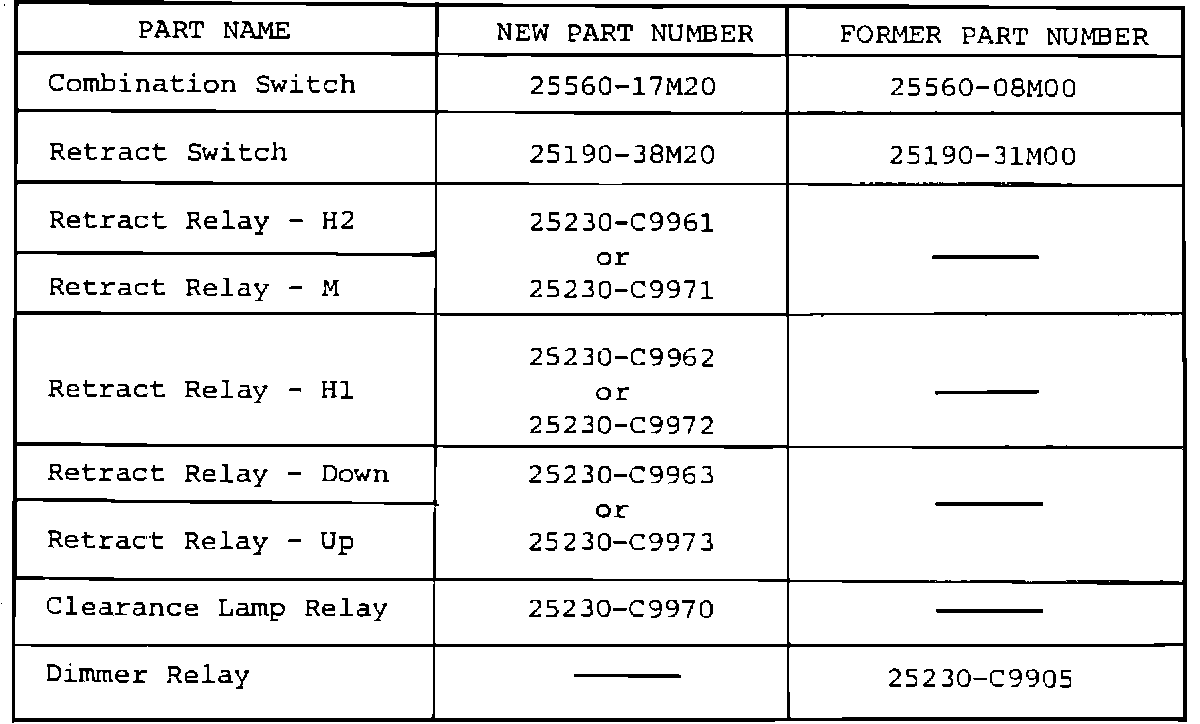

Retractable Headlamp Modifications And Part Number Changes




Additional Parts Affected By Modification #4 - September 1983 Production

INTERCHANGEABILITY: No. Parts cannot be interchanged from one modification to another modification.

INSPECTION PROCEDURES FOR EACH MODIFICATION

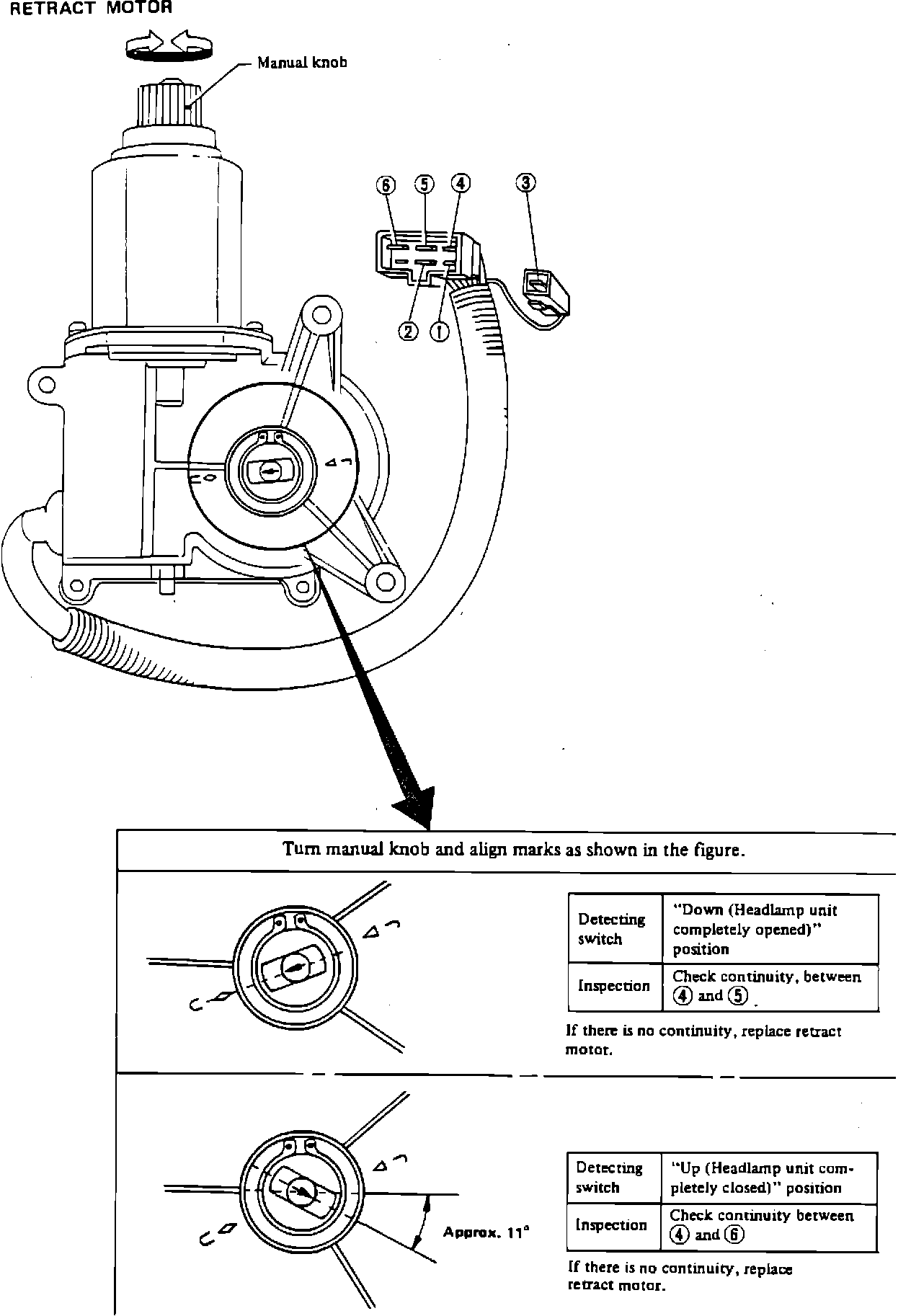

Original System - August 1982 Production



Modification #1 - August 1982 Production



Modification #2 - March 1983 Production



Modification #3 - May 1983 Production



WIRING DIAGRAM

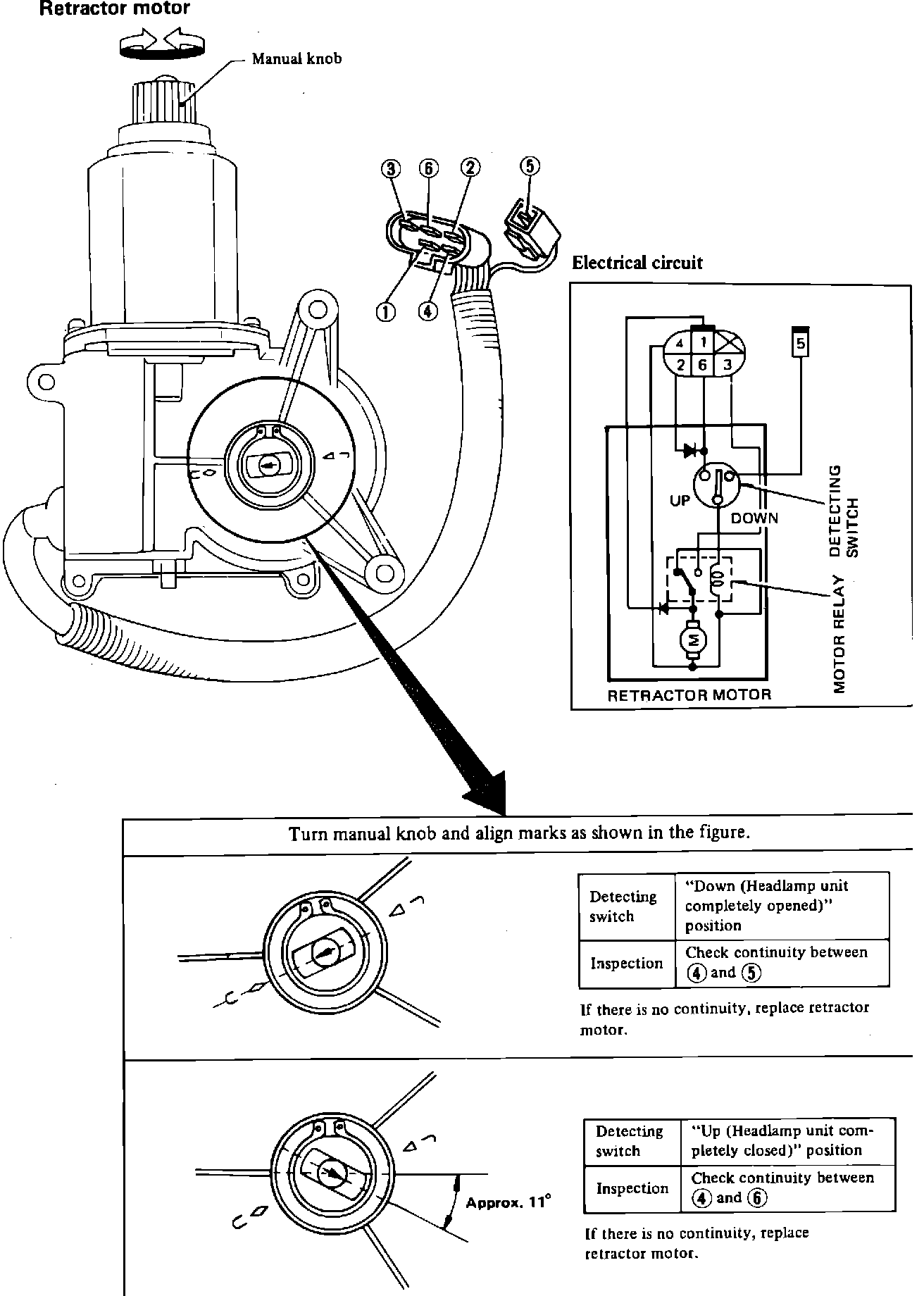

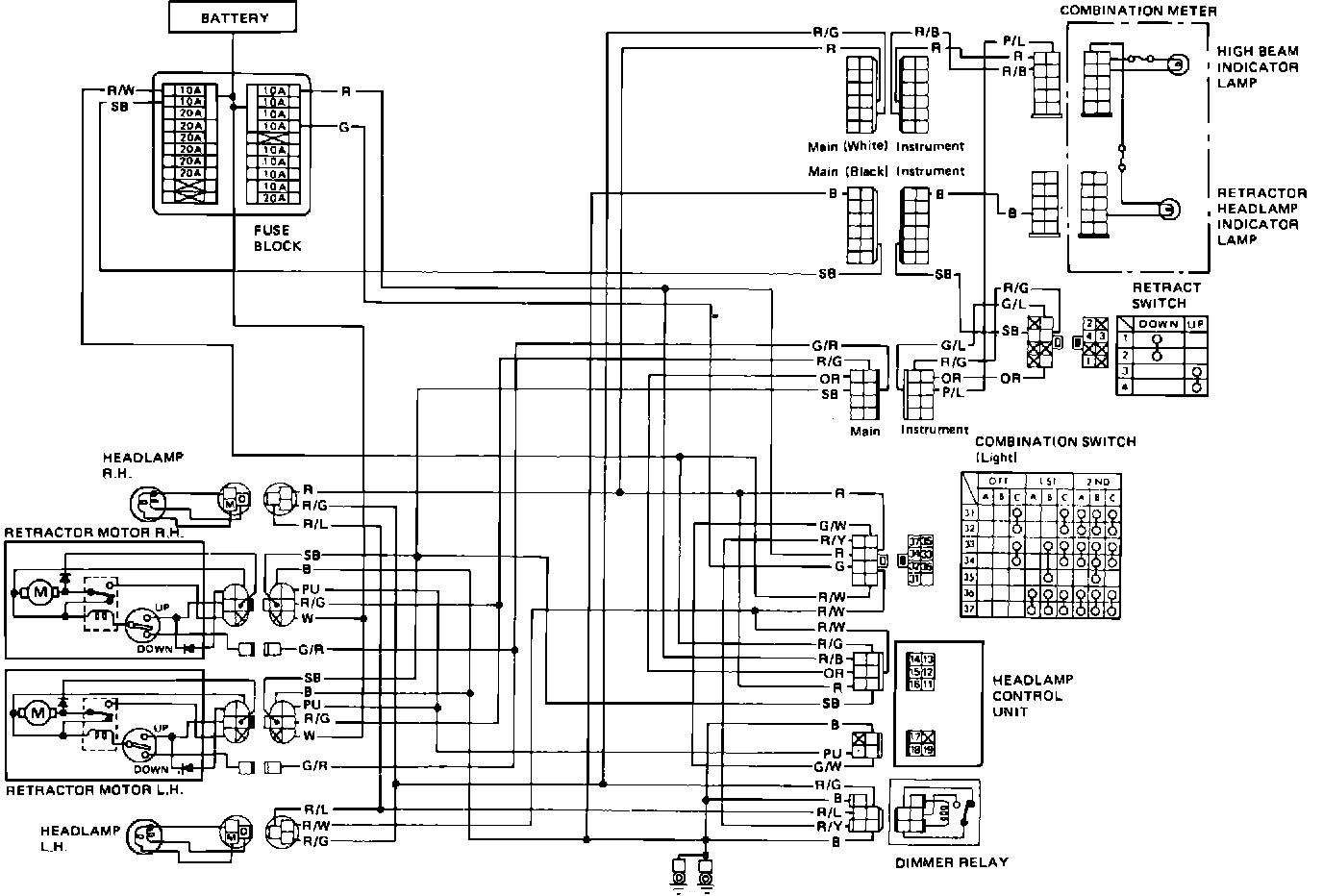

Modification #4 - September 1983 Production

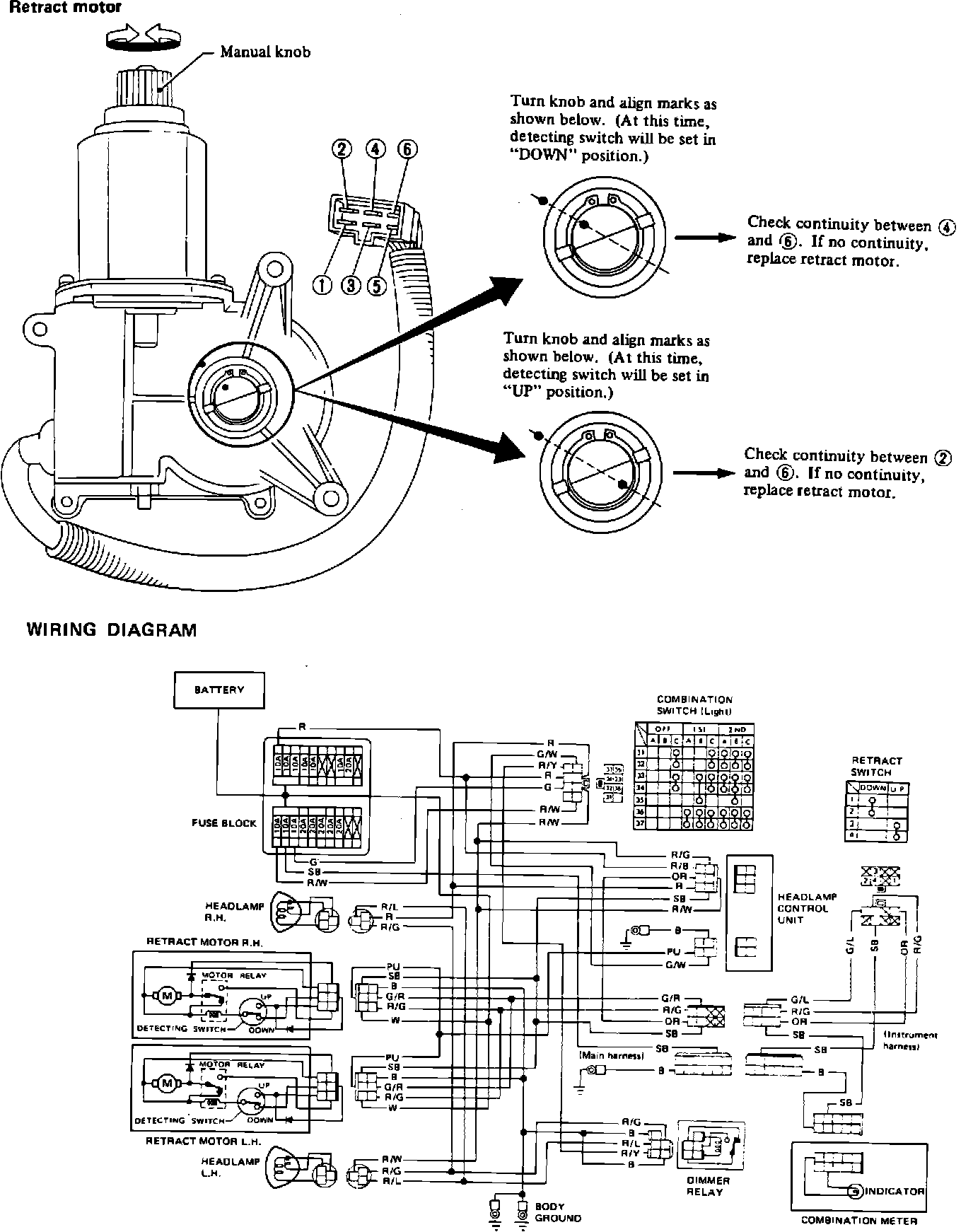

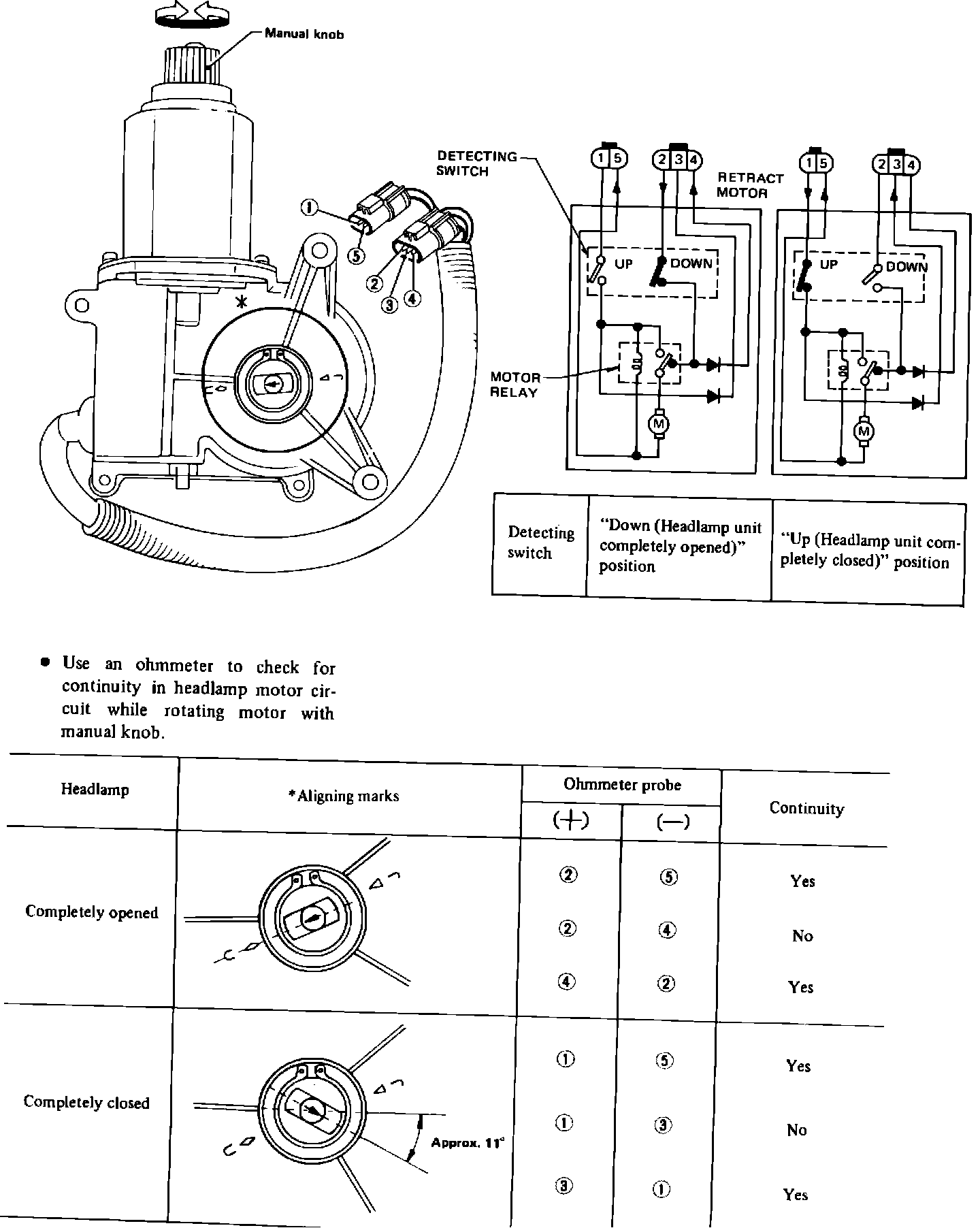

RETRACT MOTOR

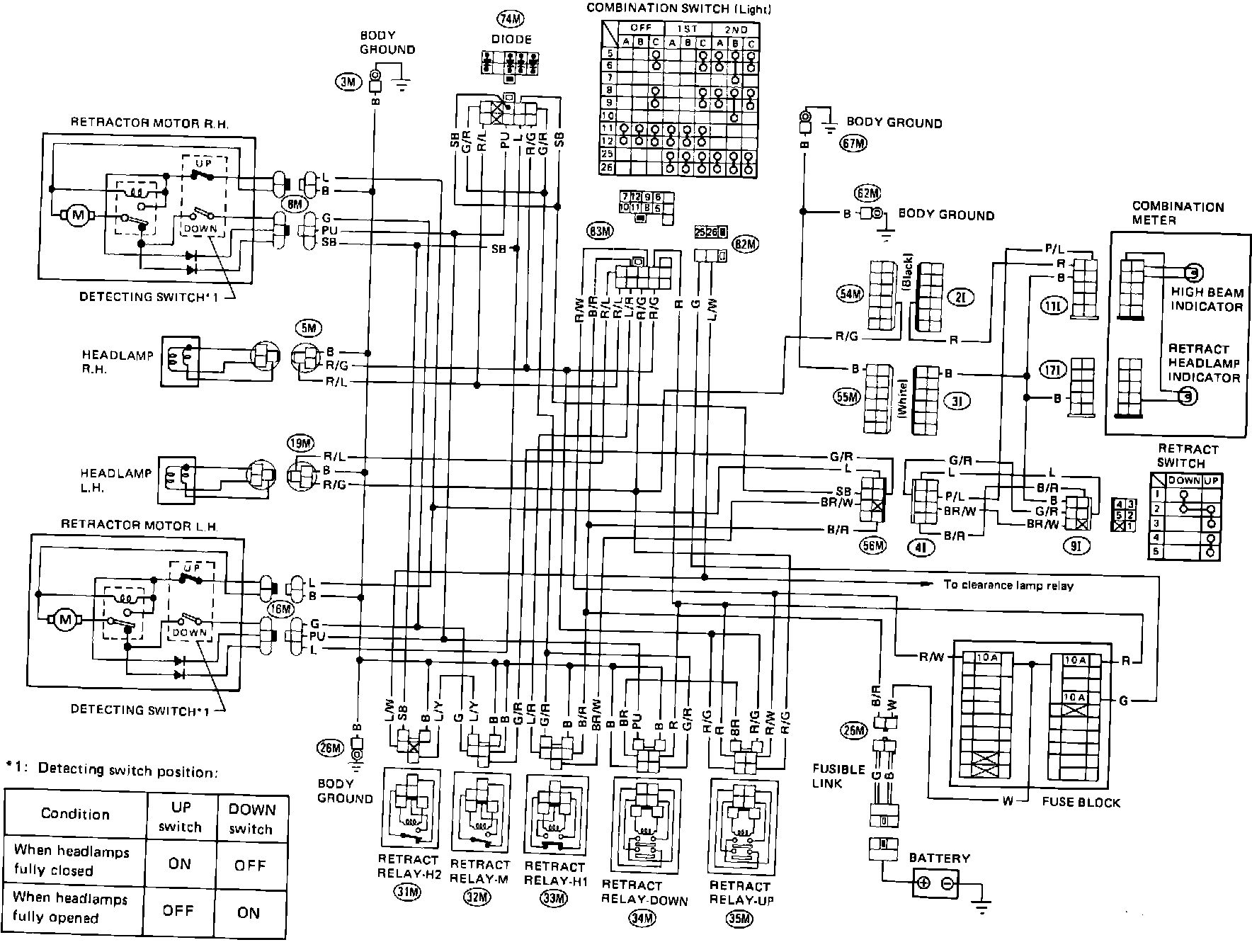

HEADLAMP SYSTEM/WIRING DIAGRAM



INSPECTION

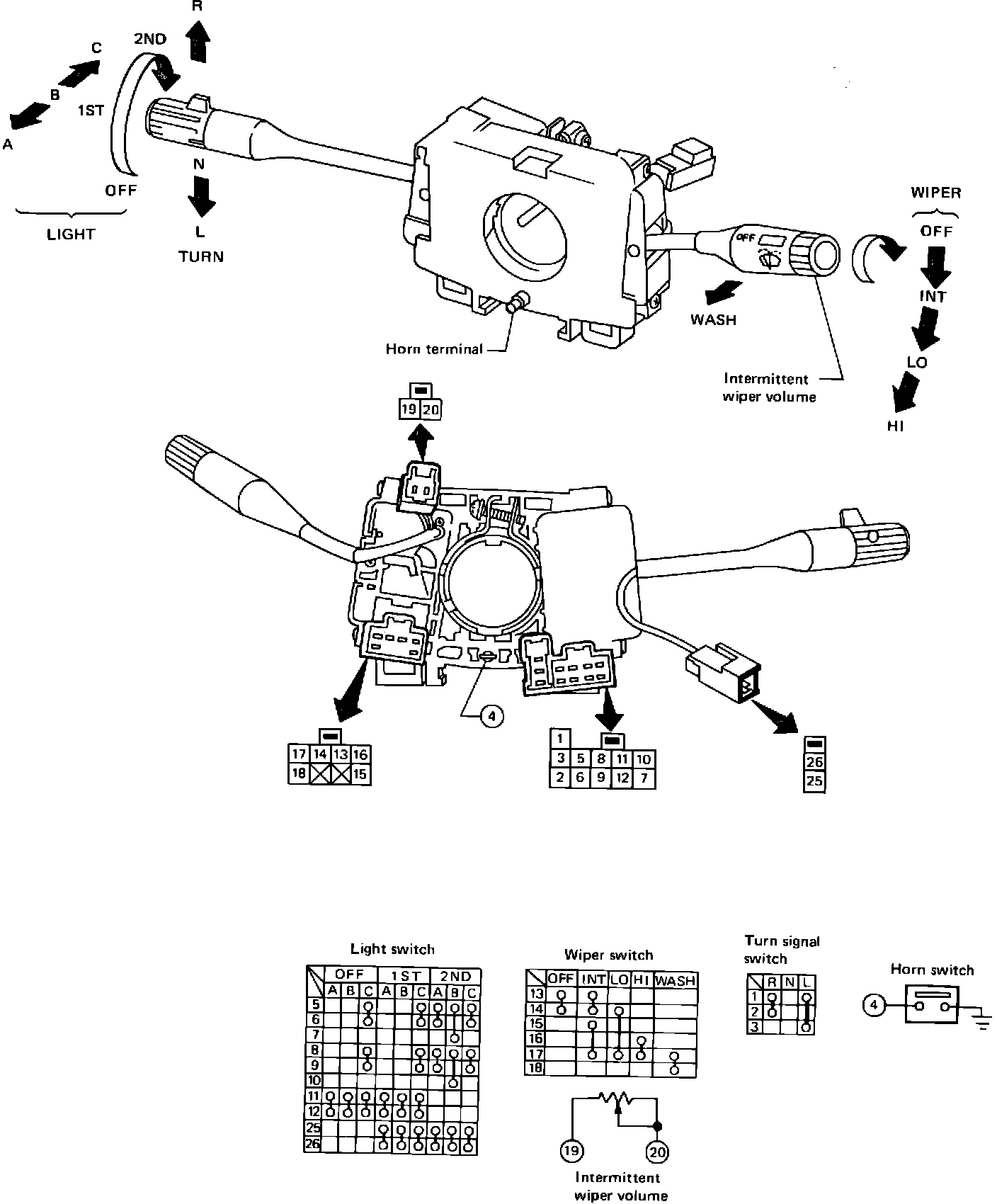

^ In accordance with modification #4 of the combination switch, the following circuits have also been changed. Circled areas show the changed circuits.



EXTERIOR LAMPS

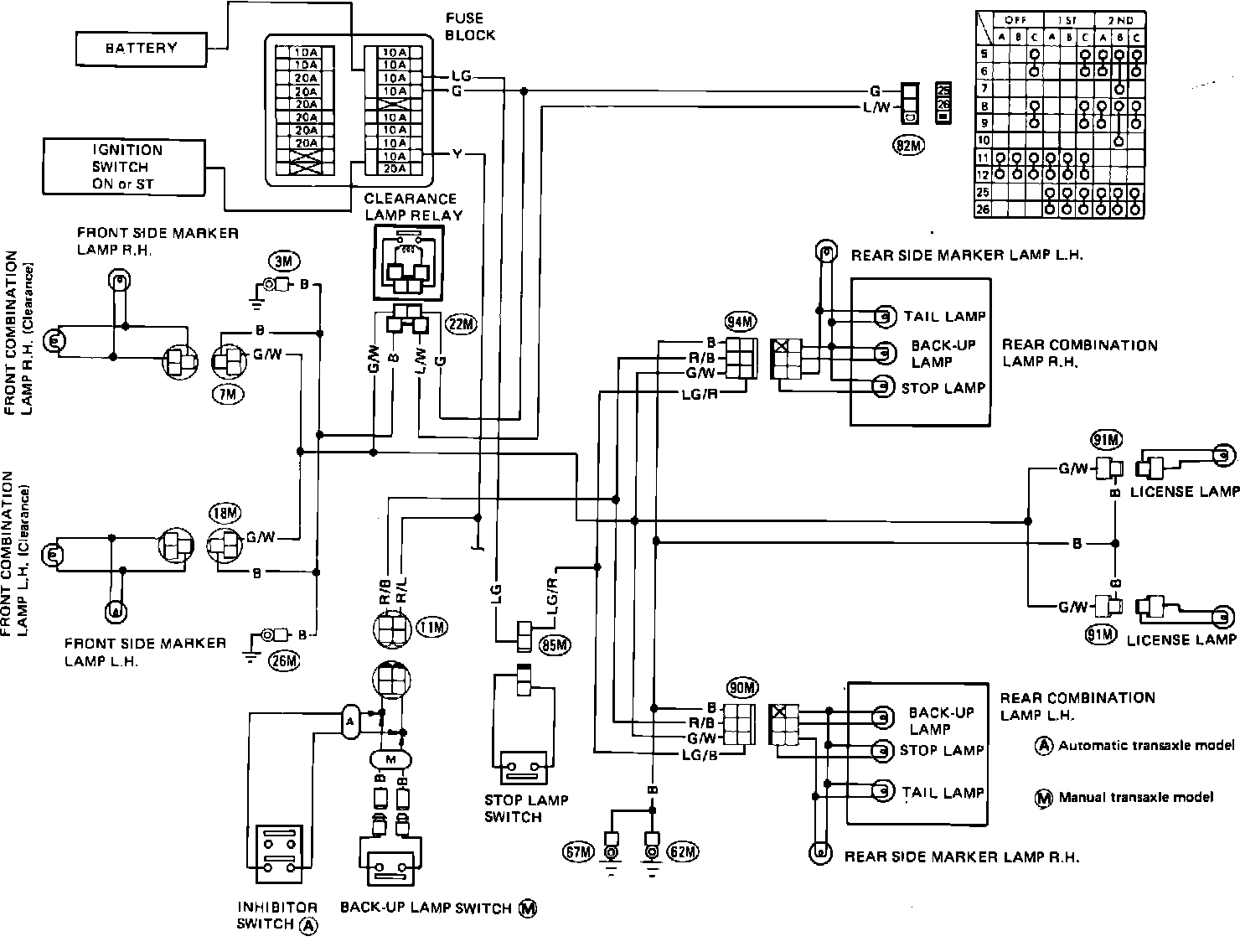

Clearance, side marker, license, tail, stop and back-up lamps

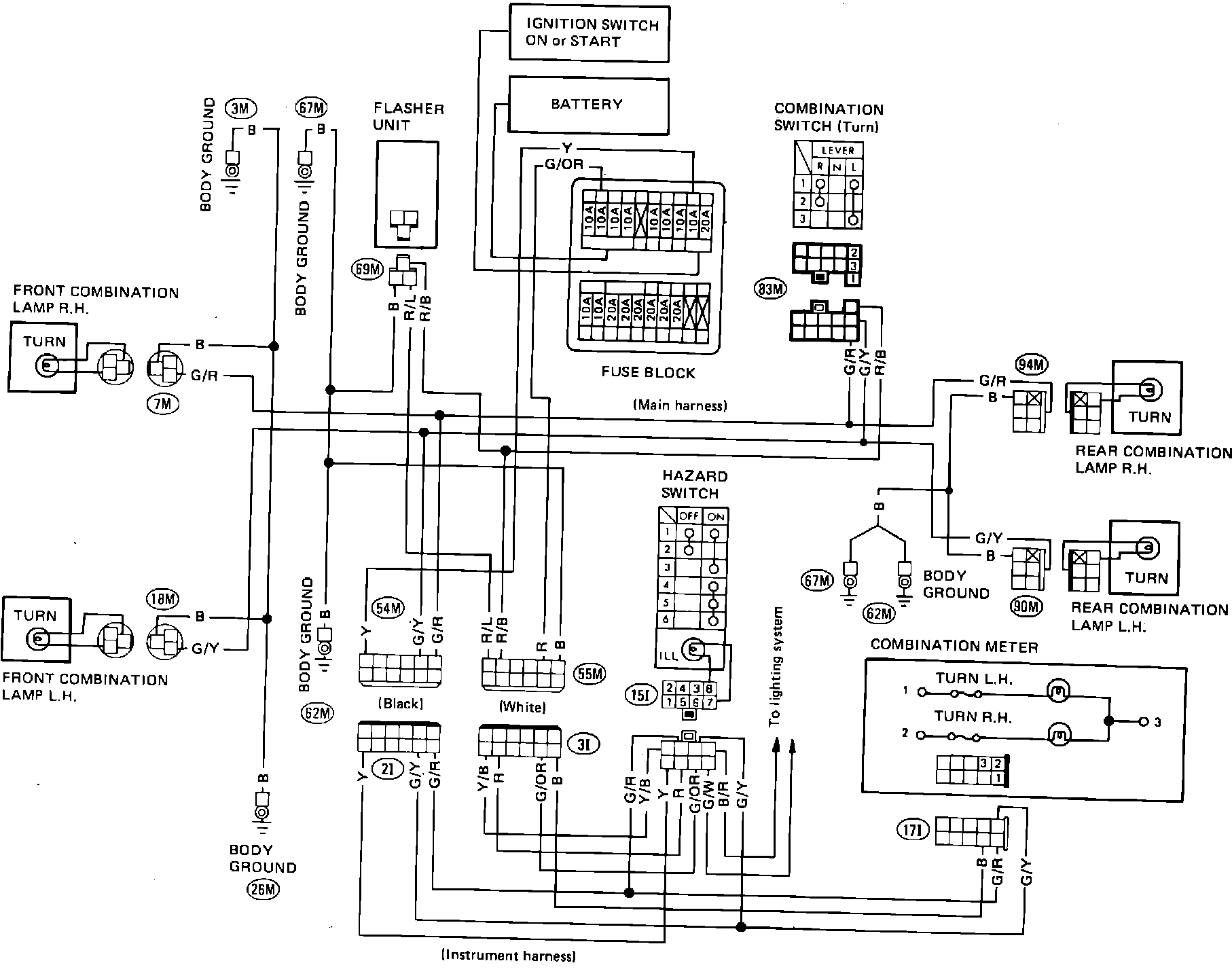

Turn signal and hazard

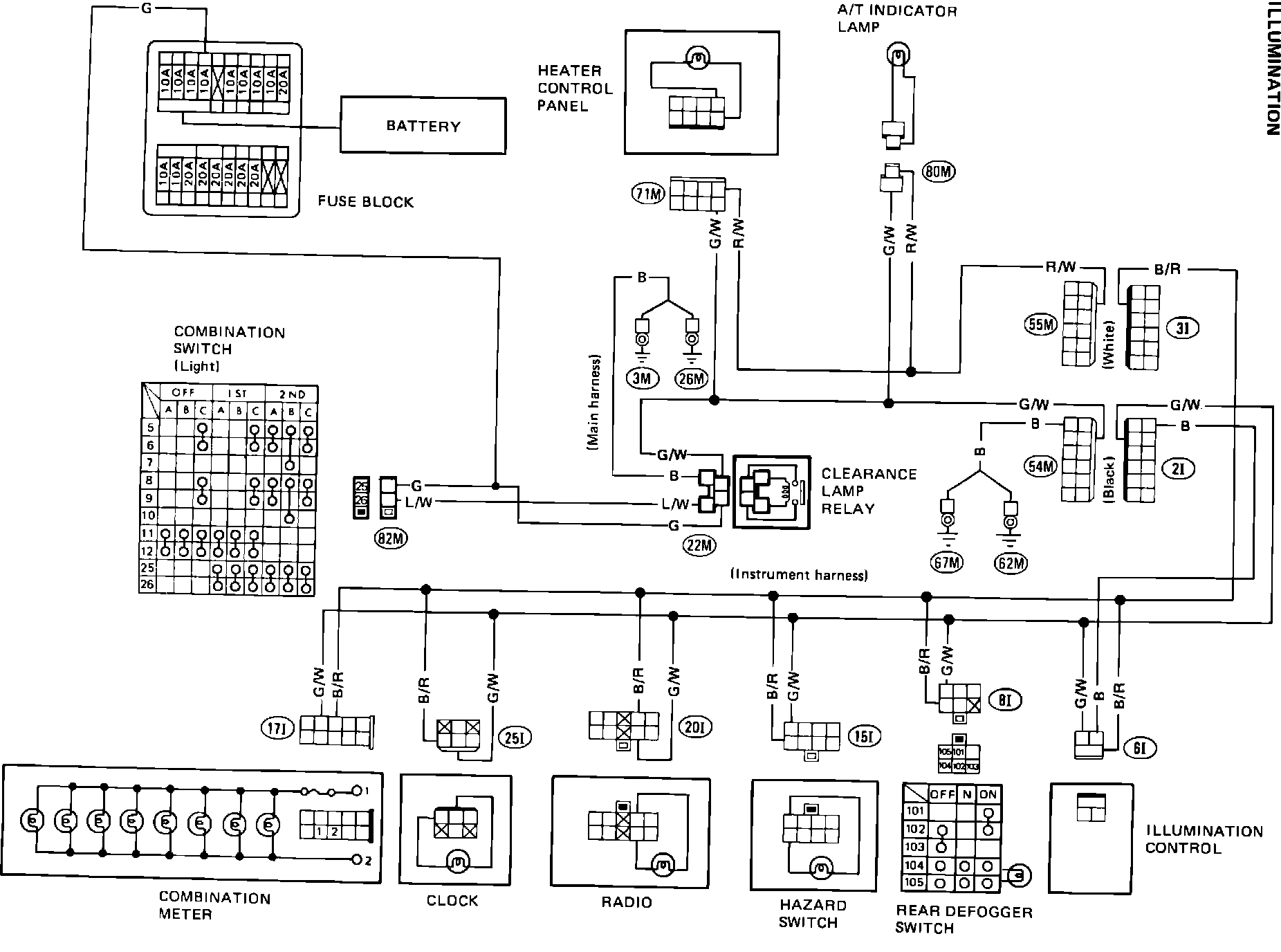

ILLUMINATION

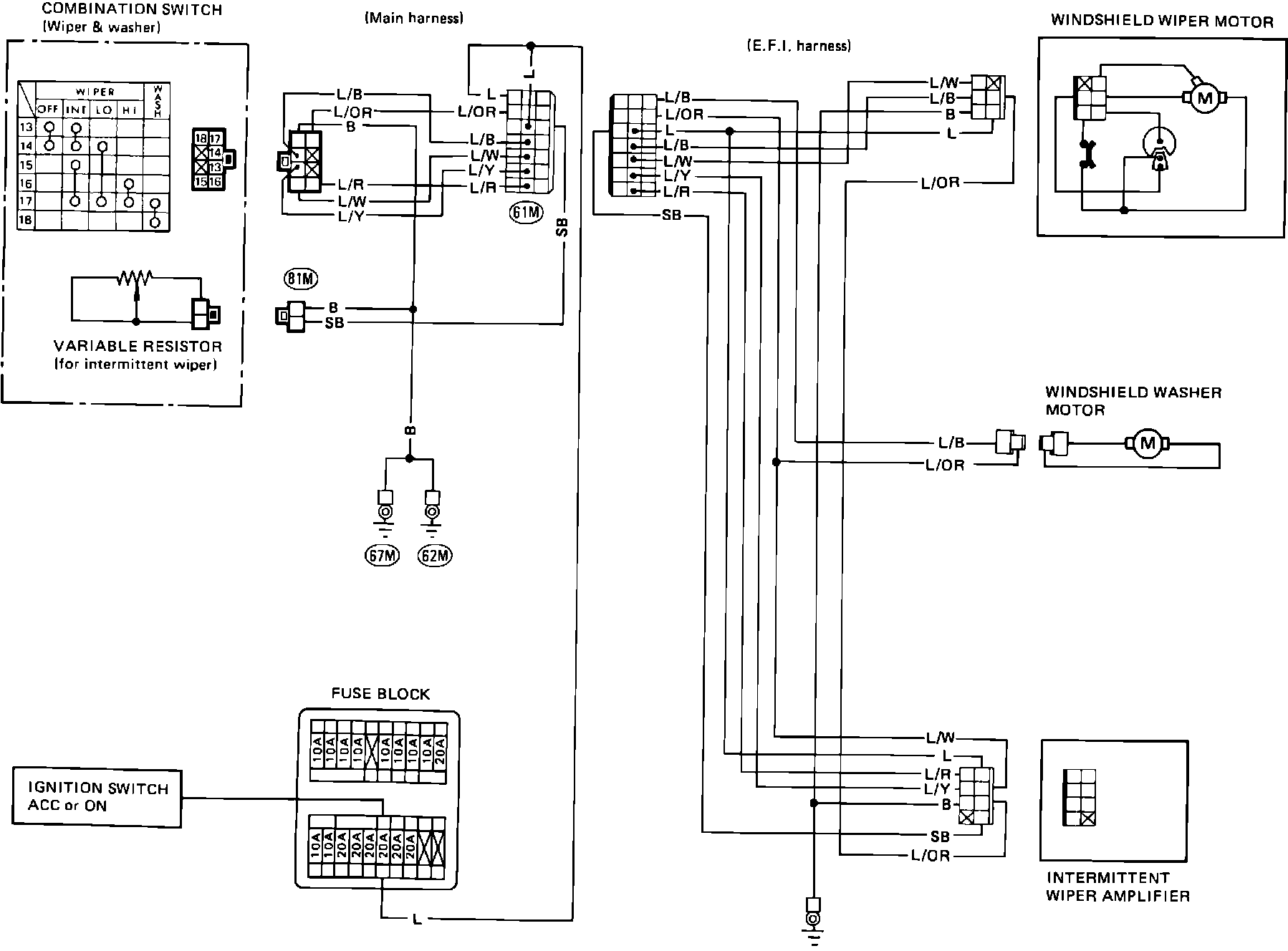

WINDSHIELD WIPER AND WASHER
