Back Pressure Transducer (BPT) Valve Replacement

23. Remove the BPT valve retaining screws.

24. Disconnect the three hoses from BPT valve.

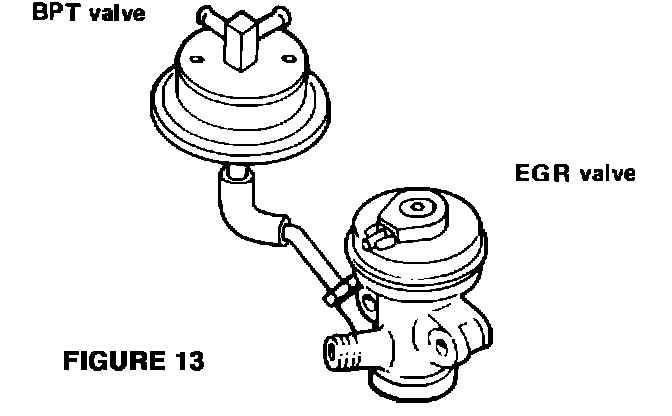

25. Install the new BPT valve and connect hoses (Figure 13).
SPECIAL NOTE

For vehicles manufactured after the following VINs, proceed to step 33. If vehicle is manufactured prior to the following VINs, continue with Step 26.


Sentra 4 dr Sedan JN1PB11S( )EU119550
Sentra 4 dr Sedan JN1PB11S( )EU609380
Sentra 4 dr Sedan JN1PB11S( )E5750080
Sentra 2 dr Sedan JN1PB12S( )EU133767
Sentra 2 dr Sedan JN1PB12S( )EU609552
Sentra 2 dr Hatchback JN1PB14S( )EU111841
Sentra Wagon JN1PB15S( )EU126004
Pulsar NX JN1MN24S( )EM021417
