Pick-Up Coil: Adjustments

Air Gap Adjustment:

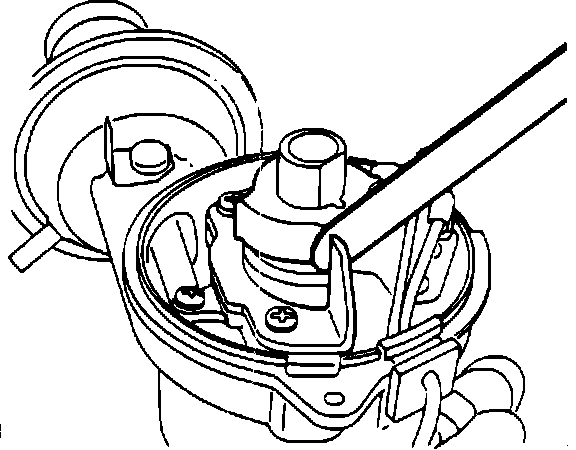

1. Using a non magnetic feeler gauge, measure the air gap between reluctor and stator.

Air Gap:
0.012 - 0.020 in (0.3 - 0.5 mm)

2. If reluctor air gap is not within specifications, Loosen stator retaining screws and adjust.
