Engine - No Fast Idle Diagnostics

85nissan01

TS85-030

March 18, 1985
Emission Control







NO FAST IDLE, 1984 FEDERAL SENTRA AND PULSAR NX

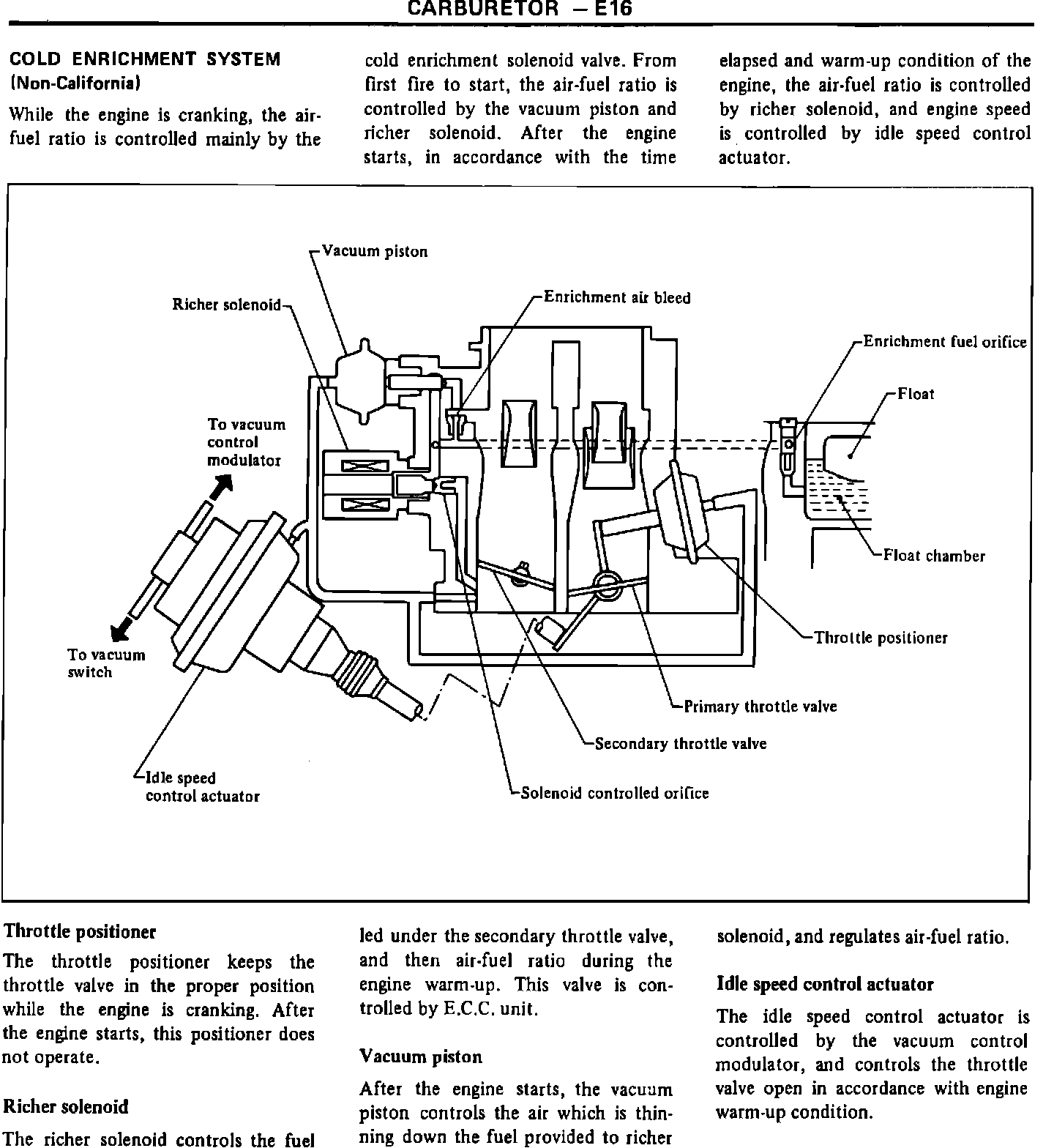

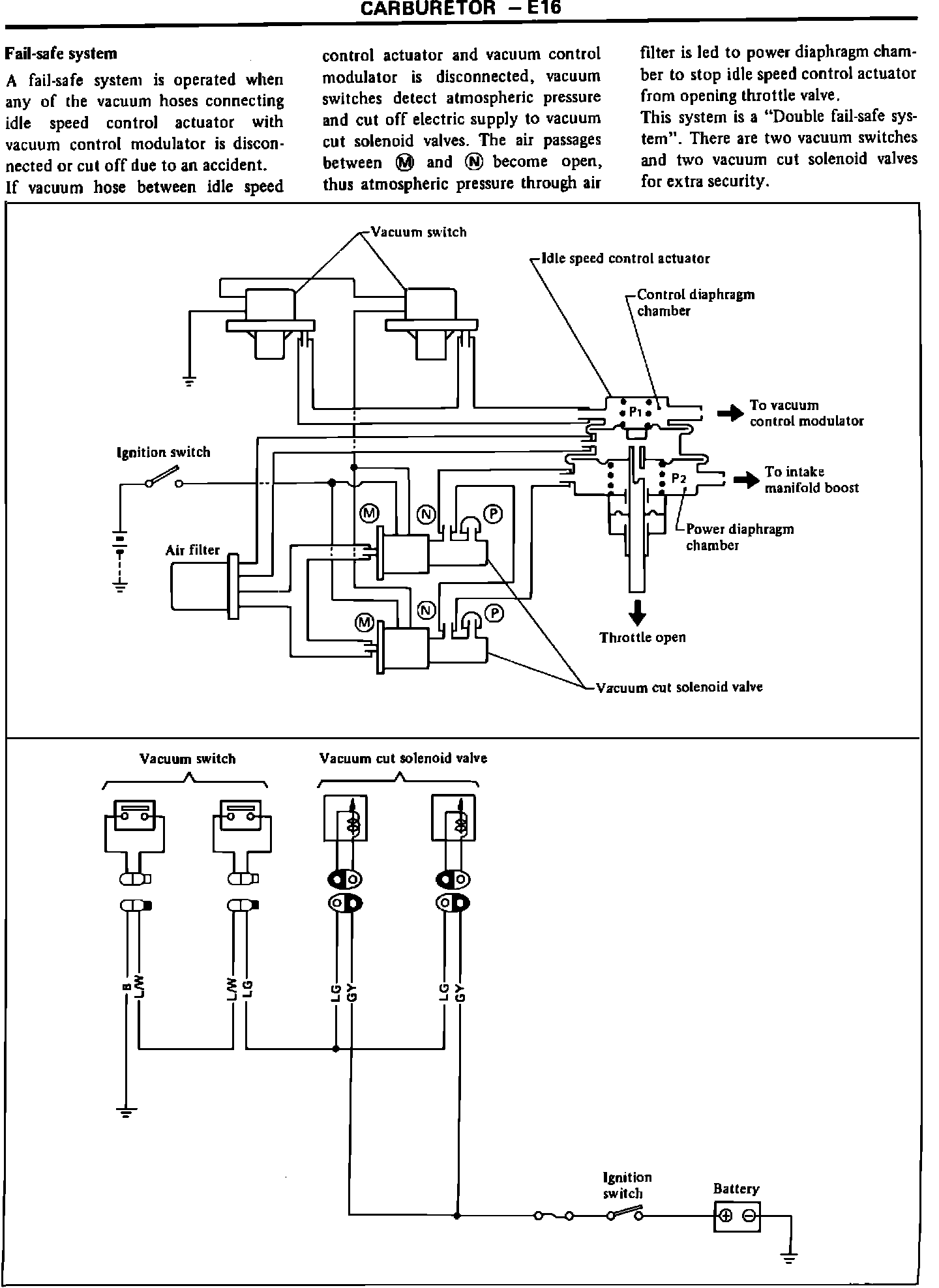

The 1984 Federal Sentra and Pulsar NX vehicles equipped with the E16 engine have a computer controlled idle speed. The system consists of a vacuum control modulator (VCM), an idle speed control valve, and a "fail-safe" system. The "fail-safe" system consists of two vacuum switches and two vacuum cut solenoid valves. Pages EF & EC-48 and -49 of the 1984 Sentra and Pulsar Service Manuals describe complete idle speed component operation.

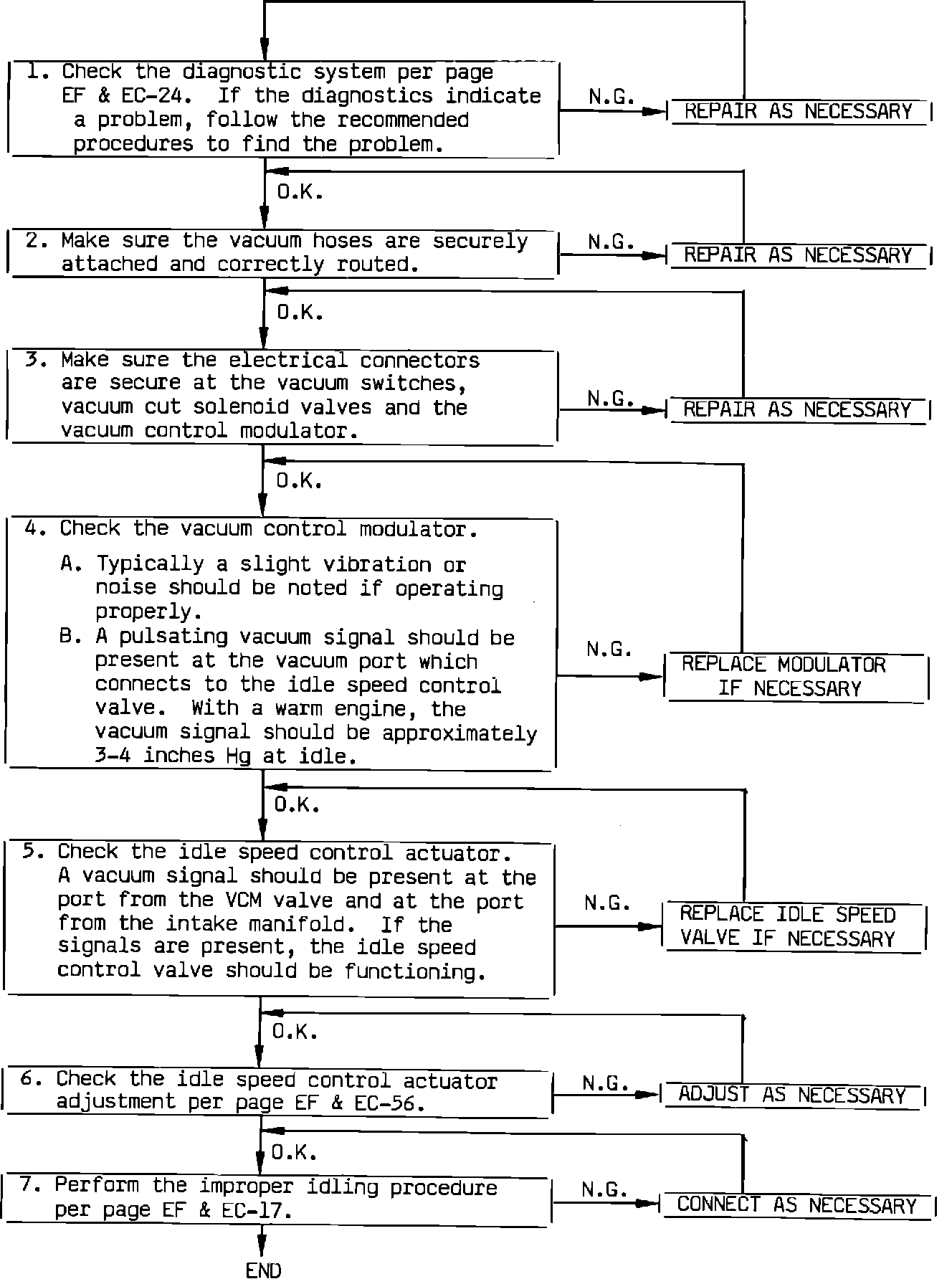

If no fast idle occurs, use the following diagnostic procedure to locate the malfunction.



EF & EC-48



EF & EC - 49

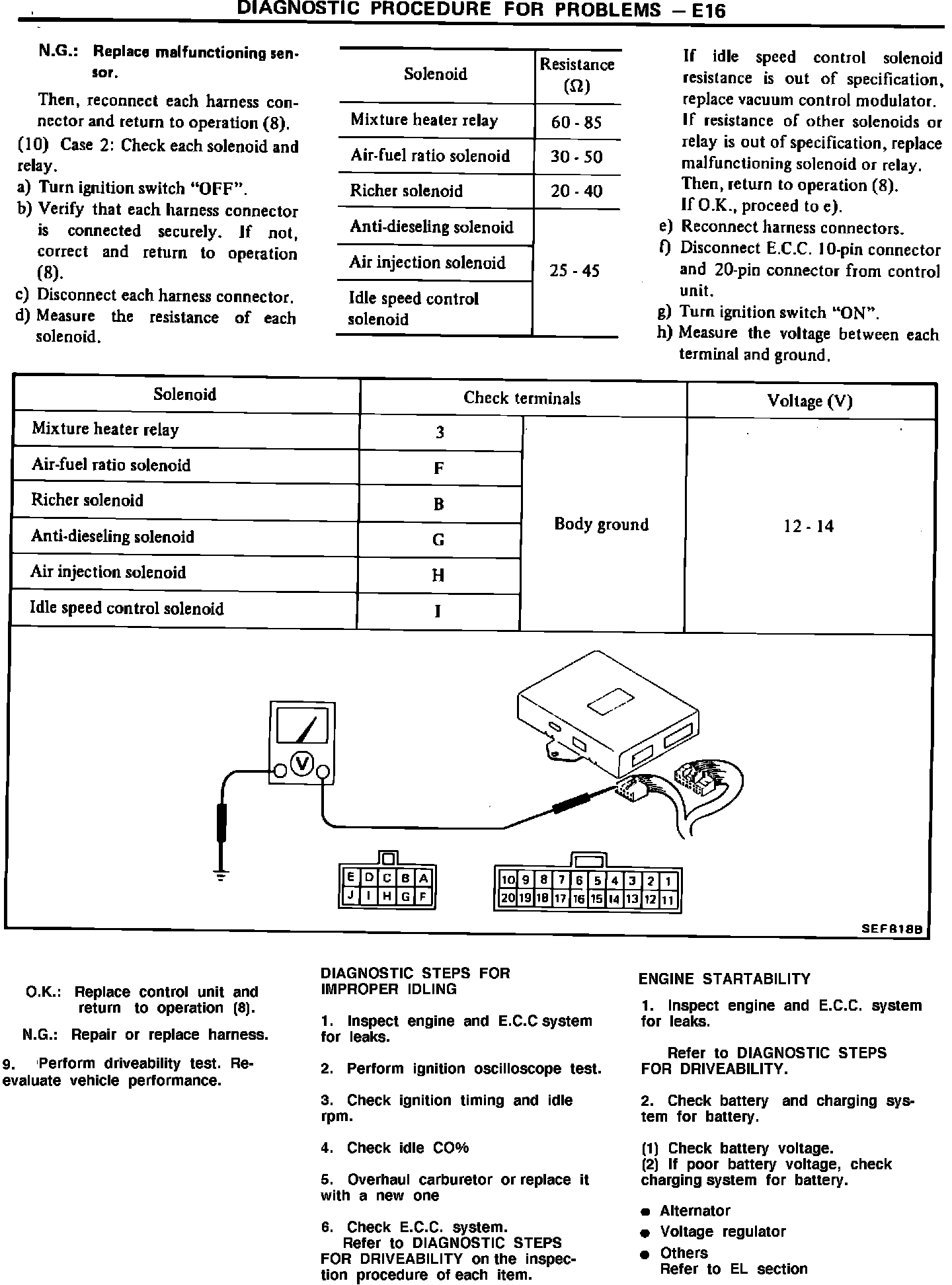

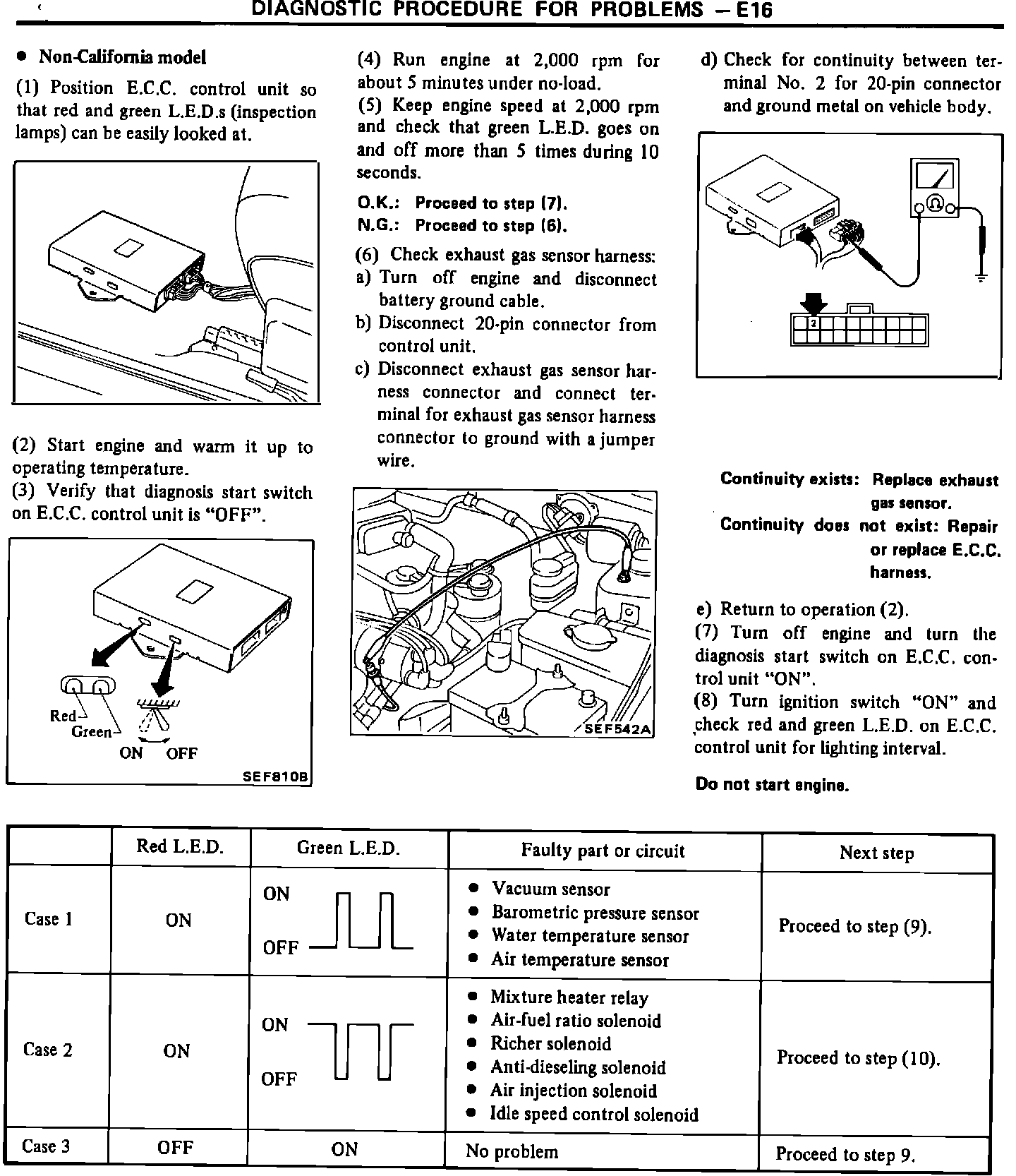

EF & EC-24



EF & EC-25



EF & EC-26

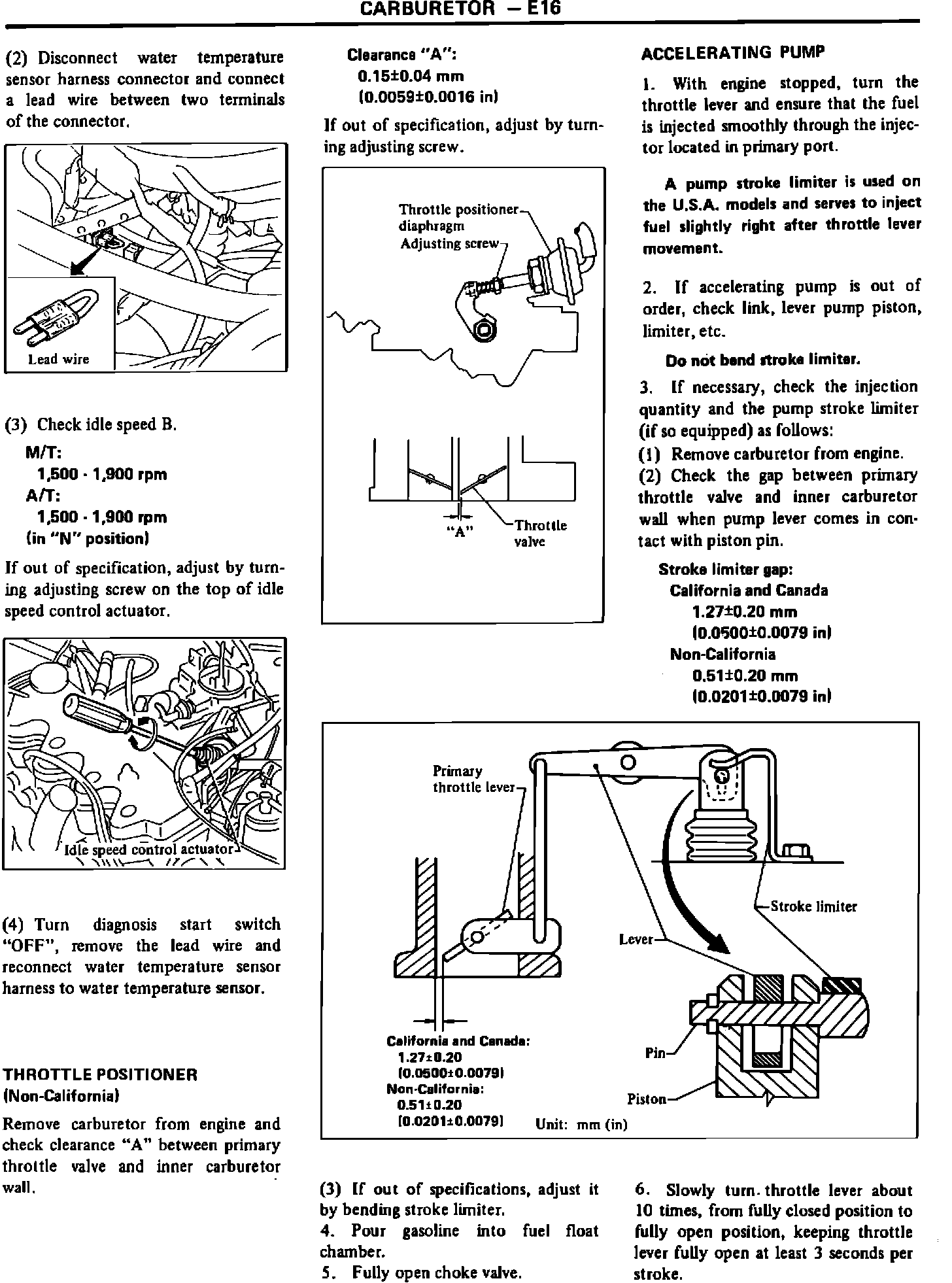

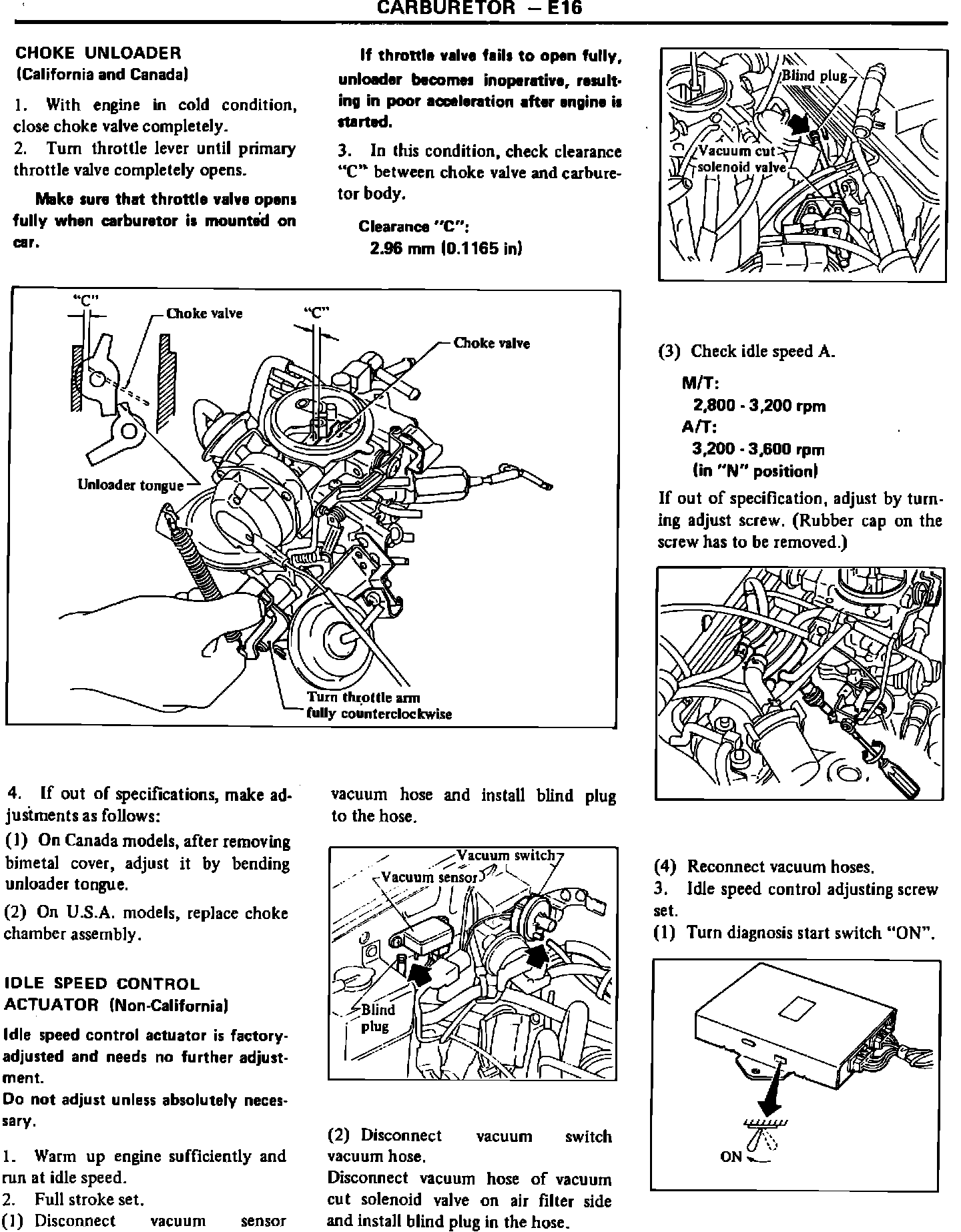

EF & EC-56




EF & EC-57



EF & EC-16



EF & EC-17




EF & EC-18



EF & EC-19
