Idle Up Control Valve
>>
Testing and Inspection
Idle Up Control Valve: Testing and Inspection

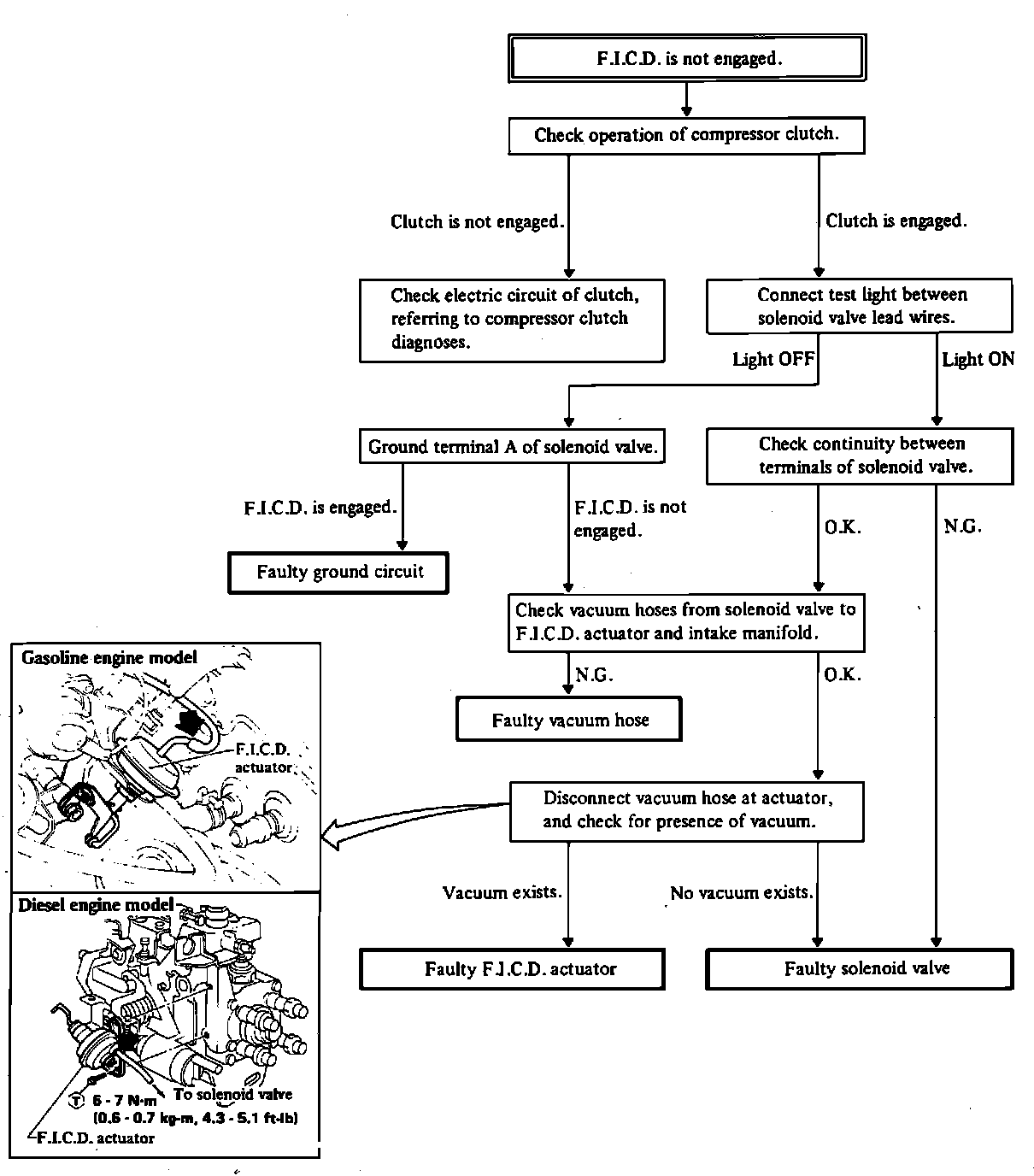

Fig. 40 Manual Heater & A/C diagnosis, Fast Idle Control Device (F.I.C.D.).:
