Home >> Nissan-Datsun >> 1984 >> 810 Maxima L6-2393cc 2.4L SOHC (L24E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Tightening Specifications

Tightening Specifications

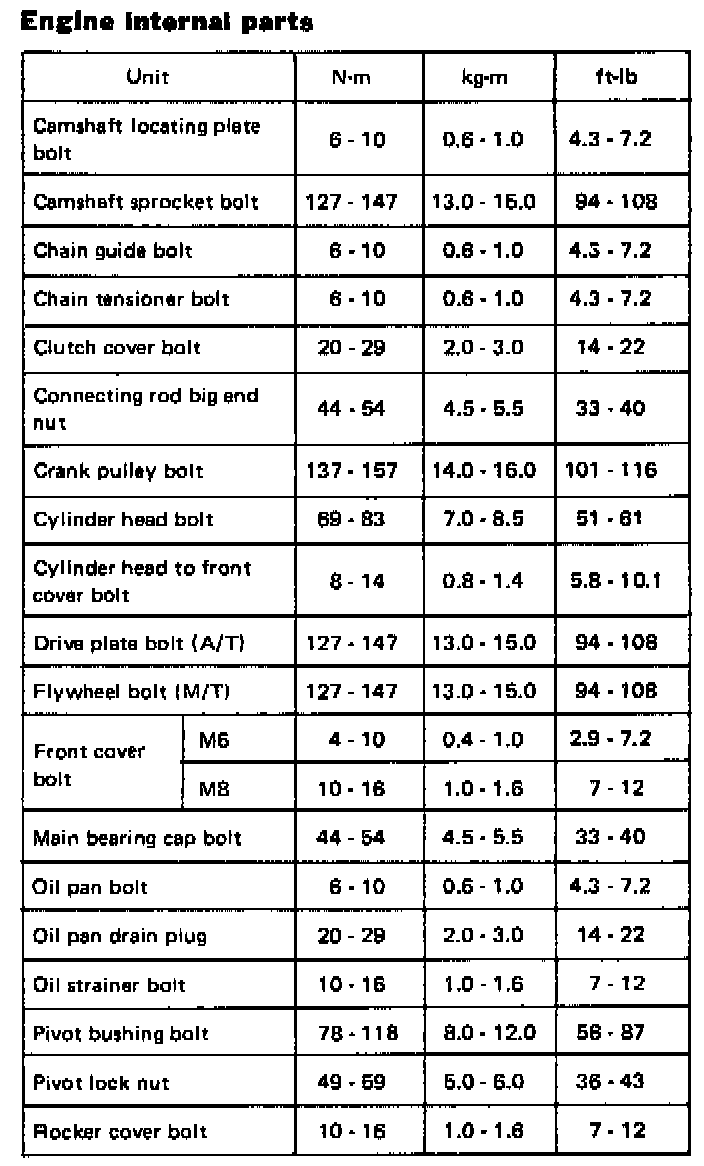

Torque Chart:

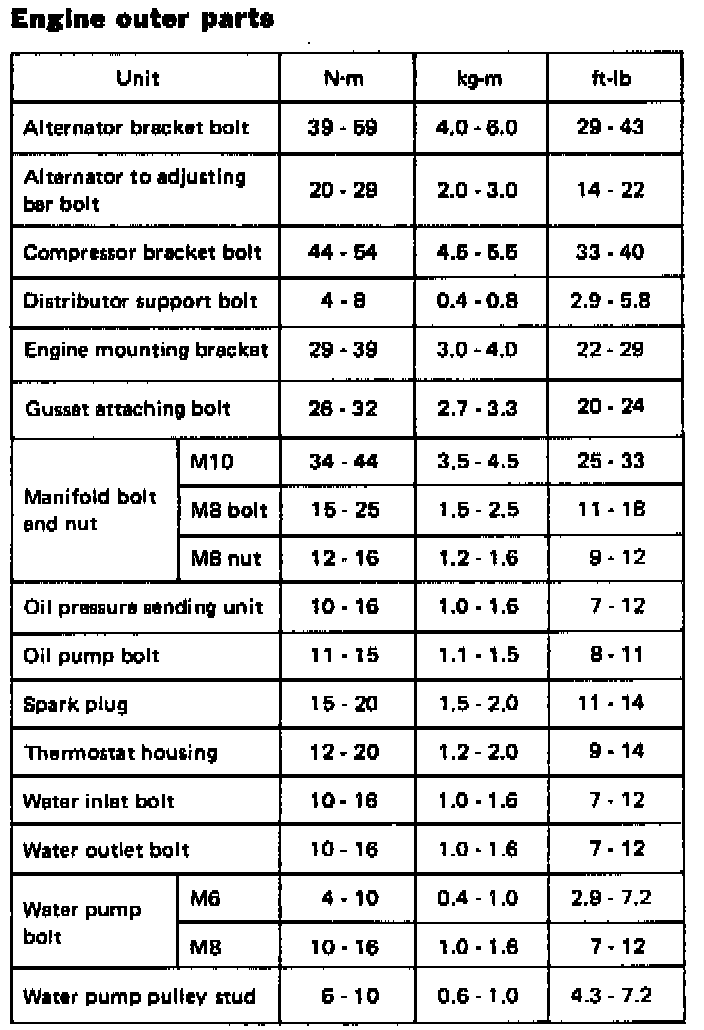

Torque Chart:

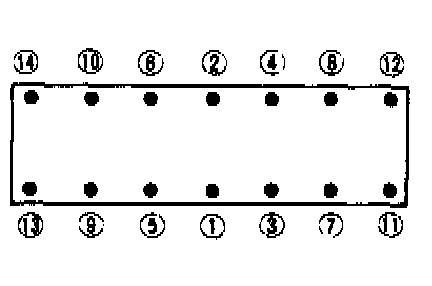

Head Loosening Sequence:

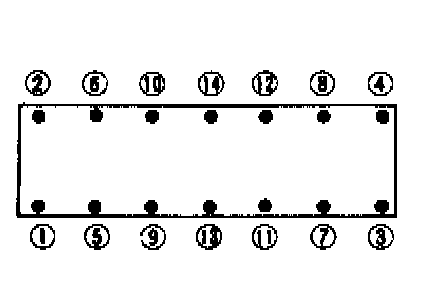

Head Torque Sequence:

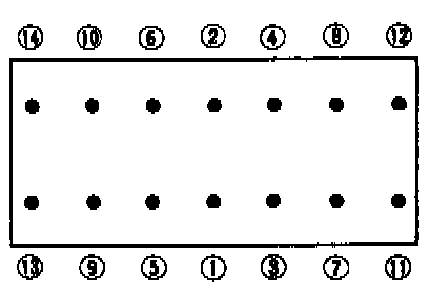

Main Bearing Torque Sequence:
