Testing Mixture Ratio Feedback System

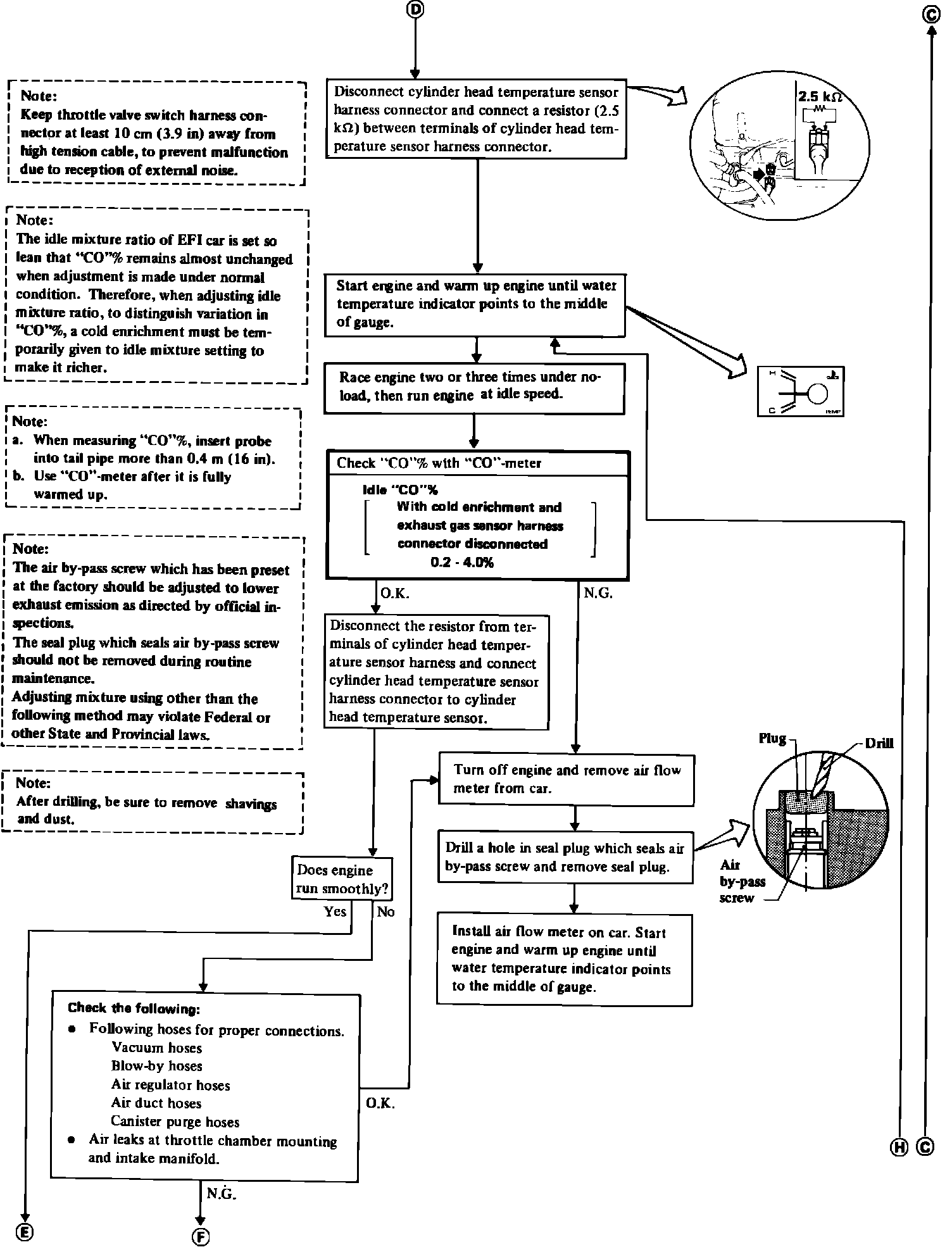

Fig. 9A Testing mixture ratio feedback system:



Fig. 9B Testing mixture ratio feedback system:



Fig. 9C Testing mixture ratio feedback system:



Fig. 9D Testing mixture ratio feedback system:
