Blower Motor Resistor: Service and Repair

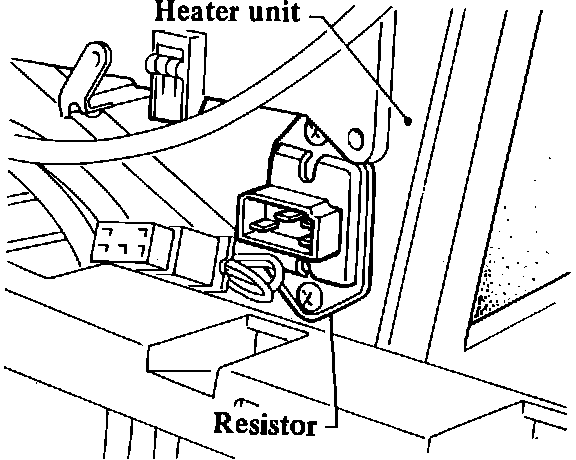

Fig. 4 Blower resistor removal.:

1. Disconnect battery ground cable.
2. Remove lower dash panel and defroster duct, if needed.
3. Disconnect wiring harness connector to resistor and remove resistor from heater case, Fig. 4.
4. Reverse procedure to install.
