Electronic Concentrated Control System Diagram
Electronic Concentrated Control System Diagram

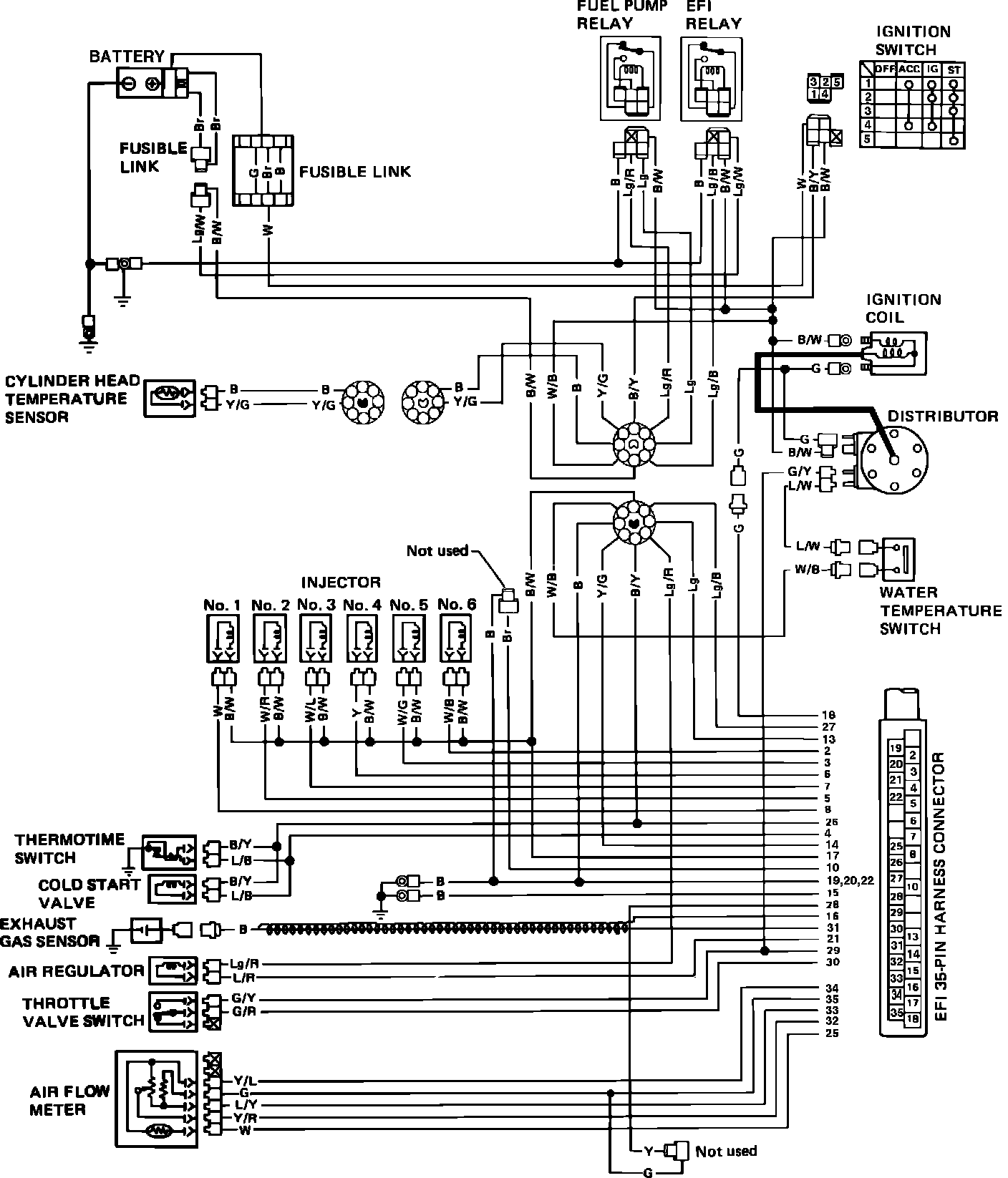

Fig. 95 EFI System Wiring Circuit.:
